700TVL Infrared CCD Camera,Mini IR Day/Night Cameras SafeBuy Supplier Member

FOB Price: 1.00 - 99.00 USD/Piece
Supply Ability: 100,000 Piece(s) per Month
Shipping: 2-5 work days for samples;6-25 work days for formal order.
Payment Terms: T/T, Western Union, Paypal
Update Time: 2019/7/20
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: Color Box,Neutral Packing,Export Carton

Quick Details

  • Special Features: 700Tvl CCD
  • Technology: Infrared
  • Sensor: CCD
  • Style: Mini Camera
  • Type: Analog Camera
  • Model Number: AV-ML140CX
  • Brand Name: MiyeaEye
  • Resolution: 700Tvl

Specifications

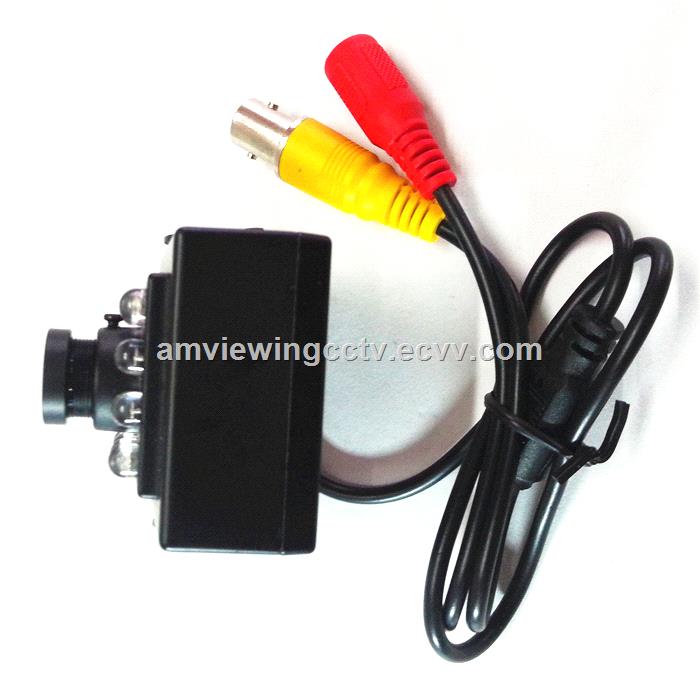

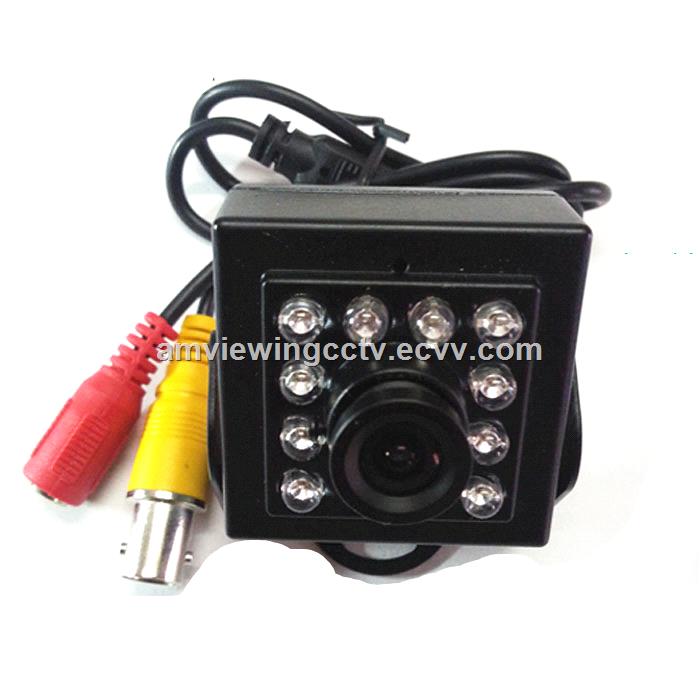

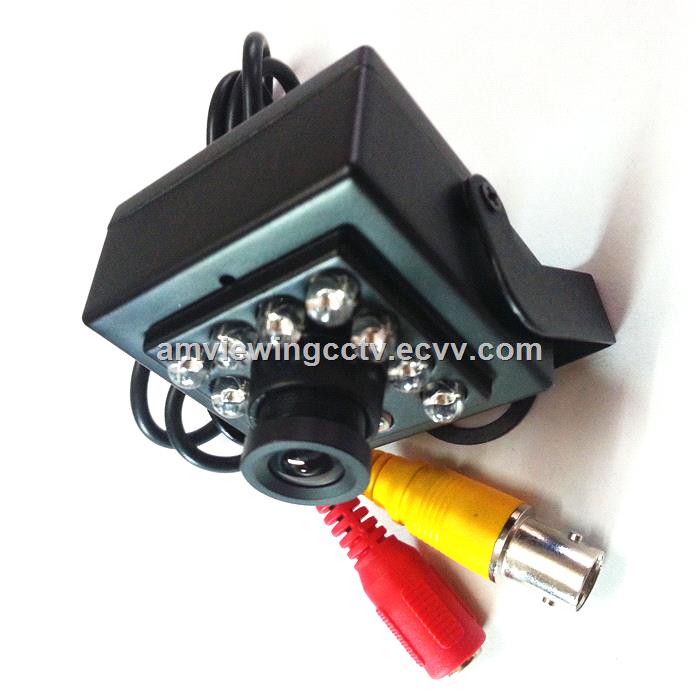

700Tvl Infrared CCD Camera, Mini IR day/night cameras

700Tvl Infrared CCD CameraMini IR daynight cameras
700Tvl Infrared CCD CameraMini IR daynight cameras
700Tvl Infrared CCD CameraMini IR daynight cameras
700Tvl Infrared CCD CameraMini IR daynight cameras
420TVL, 480TVL, 550TVL, 650TVL, 700TVL optional;
Night Vision Mini Camera, 10PCS LED Lamps;
Detailed Specifications Of The Parameters

Model

AV-ML140CX

Image Device

1/3" Sony CCD

Horizontal Resolution

700TVL(650TVL/420TVL available)

Minimum Illumination

0Lux(LED ON)

Effective Pixels

PAL: 976(H)*582(V); NTSC: 976(H)*494(V)

Scanning System

PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec

S/N Ratio

More Than 48dB(AGC off)

Electronic Shutter

PAL: 1/50~1/100,000 Sec; NTSC: 1/60~1/100,000 Sec, auto

Gamma Characteristic

0.45

White Balance

Auto

Lens Option

board lens

BLC

Auto

AGC

Auto

Sync System

Internal Synchronization

Video output

1Vp-p 75 Oms , Negative

Power Consumption

12V±10%DC, 50mA

Operation Temperature

-10 ~ + 50, RH 95% Max

Storage Temperature

-20 ~ + 60, RH 95% Max

Housing

Black

Dimension

40*40mm

Weight

50g

Supplied Accessories

User manual, cable, screw, bracket
