Qingdao Hetanc Truck Co., Ltd.
China Manufacturer with main products: Container Trailer, Lowbed Trailer, Cargo/Van Trailer, Tanker Trailer, Dump Trailer, Partner Tractor Truck, Partner Dump Truck, Partner... |

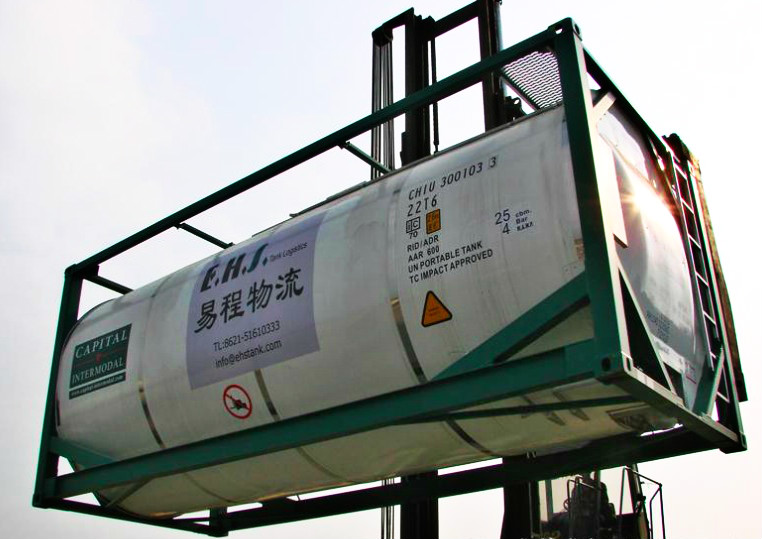

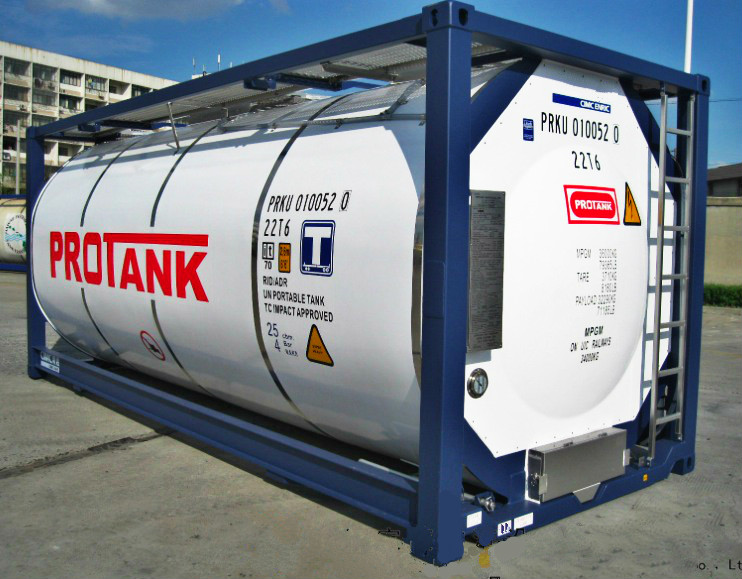

20' & 40' CNG\ LPG Container Tanker
| FOB Price: | 13,090.00 - 46,000.00 USD/Piece |
|---|---|
| Supply Ability: | 100 Piece(s) per Month |
| Shipping: | Qingdao |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | South America, Southeast Asia, Africa, Mid East |
|---|---|
| Place of Origin: | Shandong in China |
Quick Details
- Use: Truck Trailer
- Model Number: CNG40'
- Brand Name: HTC
- Max Payload: 31, 700KG
- Size: 12.01M * 2.33M * 2.15M
- Material: Steel
- Type: Semi-Trailer
Specifications
20' & 40' CNG\ LPG Container Tanker
Dimension:
Length: 12, 001 mm
Width: 2, 330 mm (including mud guard)
Height: 2,100mm

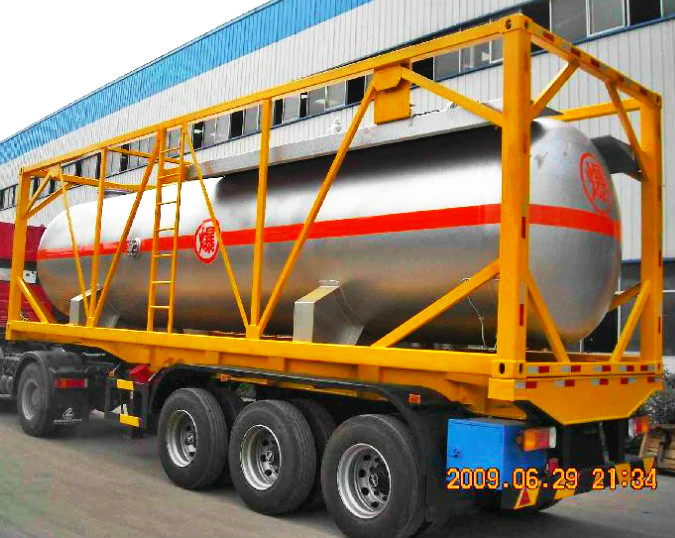

Mounted on skeleton trailer, the trailer specification:
King Pin Location: 1, 000 mm from the front face of the front bolster (No confirm).
Axle spacer: 7, 400mm + 1, 400mm
Fifth Wheel Height: 1, 280mm with the chassis level (No confirm).
CAPACITY: 50CBM
Weight:
Tare weight(Tolerance 0~-4%): Approximate 10, 800KG
Pay Load: 31, 700KG
G. V. W. R: 42, 500KG
King Pin Distribution: 16, 750KG
Axle Group Distribution: 26, 950KG
Tank:
Volume: 35000LT + 5%, Vapor Volume for semi trailer
Three compartments: 2350L/20000L/15000L
Plus outside fitted fuel tank 2350L capacity situated inside the main tank at the front of the tank with proper inlet (16" diameter manhole) and outlet (a ball-type discharge valve and a thread coupling, made in China, lies to roadside. ).
Tank material: Steel plate Q345A, the thickness of the shell is 5mm approx.
Dish ends and bulkhead: Dished and flanged, steel plate Q345A, thickness are 5mm approx, and baffles are 4 mm approx, steel plate Q235A.
Shape of tank: Ellipse, double "D"
Plate dealing: Outer surface paint. Color according to the customer's requirement. Internal antistatic coating.
Test pressure designed: 36kpa.
Tank Accessories and fitting:
16" diameter manhole pre compartment.
Each compartment has a 4" foot valve, pneumatic operation.
Each compartment has a 3" steel pipe line.
At the middle of the tank, each compartment with a 3" ball-type discharge valve and a male coupling (To be determined), lies to roadside.
At the rear of the tank, a detachable ladder is provided.
A chequered plate walkway is installed on top of the tank made of antiskid plate.
Each compartment has a measurement ruler. According to the regulation of Chinese metrology department, the measurement ruler for fuel tanker semitrailer should be calibrated above 70% of the tank volume and below 70% the ruler doesn't need be calibrated. From 70% to 85% of the tank volume, we can calibrated the ruler and it can reach 300 liter/step. And above 85% of the tank volume, we can make the precision of the measurement ruler reach 100 liter/step. (calibrated by CIMC)
Expansion valve: Non.
Without Pump.
