Digital Veterinary Ultrasound Scanner Equine, Bovine, Canine, Faline, Llama, etc

Specifications

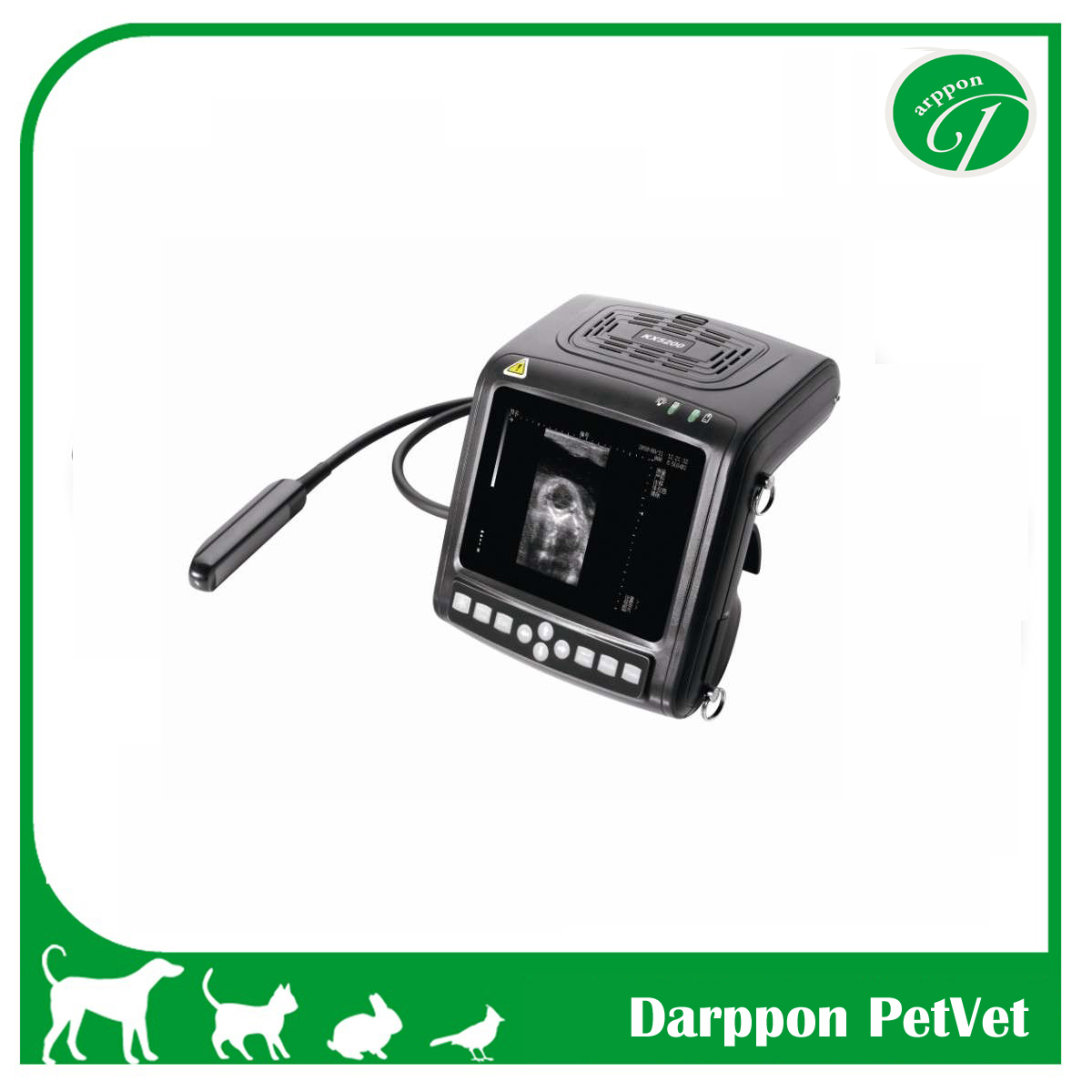

KX5200V Digital PALMTOP Veterinary Ultrasound Scanner is our BEST SOLD veterinary ultrasound, and suitable for doing diagnostic imaging of Equine, Bovine, Swine,Ovine, Canine, Feline and other small animal, and diagnosis of animal's uteri and fetus conditions. And it also calculates backfat and lean percentage automatically. It's been exported to over 90 countries in the past 5 years since we introduced it to the market in 2010, very popular in USA, Canada, Spain, France, Italy, Netherlands, Sweden, Finland, Belgium, Ireland, Romania, Slovakia, Australia, New Zealand, Turkey, etc. It proves to be a reliable products and widely accepted worldwide.
Target customer:

Veterinary, farmer, breeder.

Application:

Designed widely for diagnosing of pregnancy, fertility and disease on bovine, equine, ovine, canine, feline, goat, swine, llama and other animals.

Features:

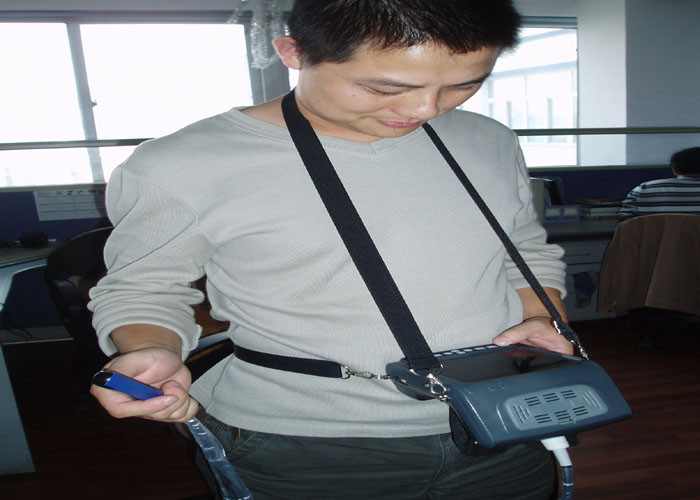

• Wristdesign:truely innovative.
• Smart and light: 5.7" high resolution color LCD , 1.1kg weight.
• No fan: Avoid cross-infection for virus.
• 2 pcs Internal li-battery: work for 5 hours.
• USB port: directly store image to U disk.
• Gridding calculate:quick measure by eye.
• Accessory: a lot of optional parts for customer different use habit.

Technical Specification

• Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of ultrasonic hardware system.
• 5.7" High resolution color LCD, high brightness, high contrast, wide visual, suitable for outdoor use.
• Language: Chinese/English switchable.
• Single probe socket, automatically identify the probe, support several optional probes.

• Body mark: 1. general use 2.bovine 3.canine 4.equine 5.feline 6. Cardiology, 7.swine---7 kinds, total 27 pcs of body marks with probe position.

• Display mode:B,2B,4B ,B/M,M, total 5 kinds.
• 8 kinds of Magnification, maximum display depth is 240mm.
• Gain range:0～127dB
• Dynamic range:27～90dB
• Gray:256
• Intelligent TGC control: near-field and far-field adjustment
• Adjustable and intelligent focus.
• Frame frequency:30 frames/second.
• Pseudo-color: 8 kinds (incl. B/W).
• Permanent image storage: 100 frames.
• Cine loop:256 frames.
• Puncture guiding function( 2 guiding lines, angel and position adjustable)
• Probe model:electronic convex and linear
• Elements of probe:80

• USB portsupport one-key storage image to USB and color laser printer directly print various image and reports.

• Dual-mode TV output:ＰＡＬ/ＮＴＳＣ, connecting to thermal printer and ultrasonic working station.

• Net weight:1.1kg.
• Main unit size: 155x180x80mm(length x width x height).

Image storage:

• 100 frames permanent image storage, without loss when power off.
• USB port support one-key storage image to U disk.

Measurement and analysis:

• General measurement:distance,Perimeter, area (trace method, ellipse method), volume, etc.

• Cardiac measurement:depth, slope, heart rate, time.
• OBmeasurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama.

• Gridding calculate,let customer simply calculate the measure result by eye, save time, convenient.
• Other measurement:Automatically calculate the Back fat and Lean percentage of swine .
• OBreportfunction
• Automaticallysave the last parameters,customer can directly use it on next time.

Power supply:

• Battery:high-capacity lithium Battery( ２４００MＡｈ). Two pcs battery can work than 5 hours.
• Power:AC110/230 -15％～＋10％(self-adaption supply voltage) 60/50Hz±1Hz.

Standard configuration:

• Main unit: 1 pc
• 6.5MHz linear rectal probe : 1 pc
• Power adapter: 1 pc
• Internal battery:2 pcs
• The leather Case: 1 unit
• Base Charger, belt, bracket, shutter release: 1 pc for each.

Optional configuration:

• Probe:

4.0Mhz multi-frequency convex rectal Probe

6.5MHz multi-frequency micro-convex probe

3.5MHz multi-frequency convex probe

7.5MHz multi-frequency linear probe

6.5MHz multi-frequency trans-vaginal probe

• goggles
• USB flash disk

• Thermal printer (P93W-Z)
• Color laser printer(Specified models:HP Color LaserJet CP1515n,HP Color LaserJet CP1525)
• Battery(2400mAH)
• Mouse
• Black suitcase
• Introducer
