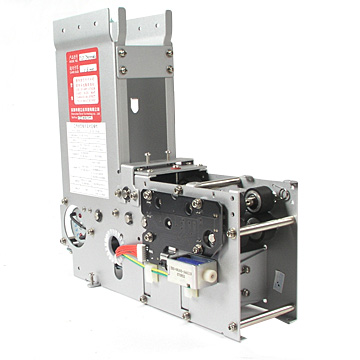

High Level Signal Output Motorised PVC Card Vending Mechanism KTCD712

Specifications

Main Features

? Industrial design, resistant and corrosion, adapt to all kinds of high temperature, dusty bad environment;
? Hand-simulated friction type hairpin, having strong adaptability for all kinds of forms card;
? Preparing to issuing cards function to speed up the issuing speed, ease vehicle queue problem;
? Stacks up card box design, make the card box flexible capacity;
? Card less or empty, failure to auto voice alarm;
? When error, it will be automatic reset after alarm 30 seconds or 100 seconds
? Card security recovery capacity can reach more than 40 pieces, and has a card full voice alarm function;
? The thickness of Card can be adjustable within 0.3mm-2.5 mm (The thickness of a card is set 0.8 mm in factory);
? Slippery style installation design, install and remove the card machine is more simple;
? All the mold of production, high precision and quality guarantee products consistency.

Main Technical parameter
? Working Voltage: 24VDC(Maximum current 2A static current 0.1 A)
? Working Temperature: -20℃ to 85℃
? Working humidity: 30-90% (relative humidity)
? Using Condition: install in bin and keep out of the sun
? Card thickness: 0.3– 2.5 mm(adjustable)
(Note: set 0.8mm before shipping)
? Card Material: Paper or Polyester card.
? Time of issuing: Max.0.5s
? Capacity of Stacker: 150pcs, 120pcs available when an extra stacker is needed(according to 0.8 mm thick card calculations)
