Home >Products Catalog > CCTV Mini Camera > 420TVL Small Security White Screw Head Camera,Best ,Mini Hidden Camera with Audio

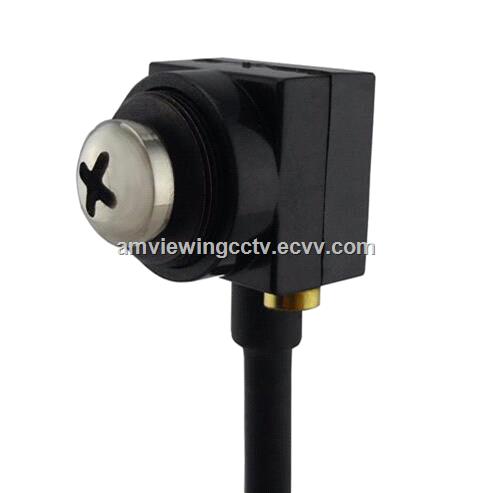

420TVL Small Security White Screw Head Camera,Best ,Mini Hidden Camera with Audio

FOB Price:	1.00 - 99.00 USD/Piece
Supply Ability:	100,000 Piece(s) per Month
Shipping:	2-6 work days for samples;7-20 work days for bulk order
Payment Terms:	T/T, Western Union, PayPal

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Color Box,Neutral Packing,Export Carton

Quick Details

420TVL Small Security White Screw Head Camera,Best ,Mini Hidden Camera With Audio

Miniature Spy Security Camera Feature:
1/3' ' CMOS CCD;

420 TV Lines, 0.5Lux;

Metal Casing;

Detailed Specifications Of The Parameters

Model	AV-M515CPL
Image Device	1/3" color CMOS sensor
Horizontal Resolution	420TVL
Minimum Illumination	0.5Lux
Effective Pixels	PAL: 500(H)582(V); NTSC: 510(H)492(V)
Scanning System	PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec
S/N Ratio	More Than 48dB(AGC off)
Electronic Shutter	PAL: 1/50~1/100,000 Sec; NTSC: 1/60~1/100,000 Sec, auto
Gamma Characteristic	0.45
White Balance	Auto
Lens Option	Screw pinhole lens
BLC	Auto
AGC	Auto
Sync System	Internal Synchronization
Video output	1Vp-p 75 Oms , Negative
Power Consumption	12V± 10%DC, 50mA
Operation Temperature	-10℃ ~ + 50℃, RH 95% Max
Storage Temperature	-20℃ ~ + 60℃, RH 95% Max
Housing	BLACK

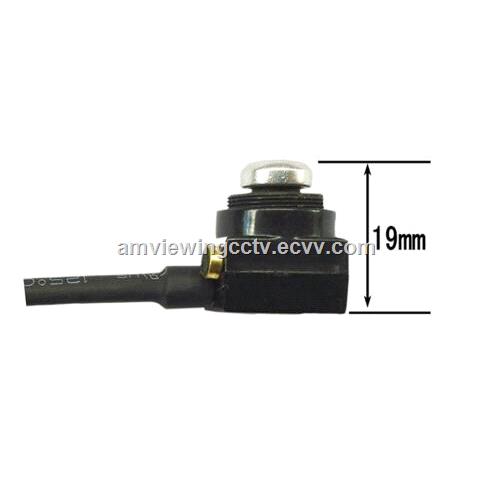

Dimension	15x15mm
Weight	30g
Supplied Accessories	User manual, camera with cable
