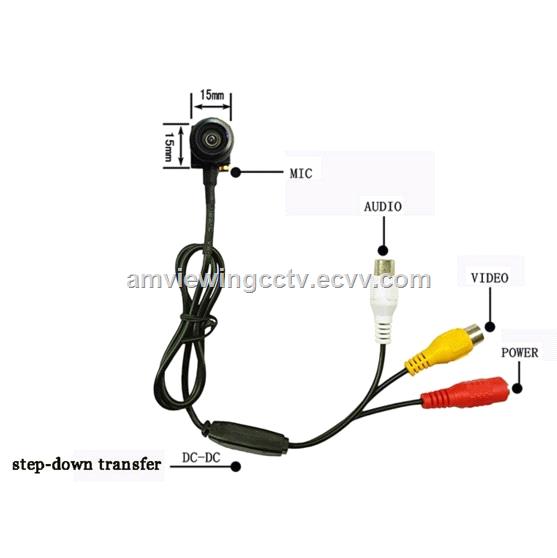

420TVL Wide View Angle Hidden Camera,Mini CCTV Security Camera With Audio
| FOB Price: | 1.00 - 99.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece(s) per Month |
| Shipping: | 2-6 work days for samples;7-20 work days for bulk order |
| Payment Terms: | T/T, Western Union, PayPal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Color Box,Neutral Packing,Export Carton |
Quick Details
- Special Features: 600TVL HD
- Technology: Pinhole
- Sensor: CMOS
- Style: Mini Camera
- Type: Analog Camera
- Model Number: AV-M515CPG
- Brand Name: MiyeaEye
- Resolution: 420TVL
Specifications
420TVL Wide View Angle Hidden Camera,Mini CCTV Security Camera With Audio
Miniature Security Camera Feature:
Model:AV-M515CPG
1/3' ' CMOS CCD;
Model:AV-M515CPG
1/3' ' CMOS CCD;
420 TV Lines, 1.0Lux;
Lens Option:1.8mm Wide angle lens
Lens Option:1.8mm Wide angle lens
Metal Casing;
Detailed Specifications Of The Parameters
|
Model
|
AV-M515CPG
|
|
Image Device
|
1/3" color CMOS sensor
|
|
Horizontal Resolution
|
420TVL
|
|
Minimum Illumination
|
0.5Lux
|
|
Effective Pixels
|
PAL: 500(H)*582(V); NTSC: 510(H)*492(V) |
|
Scanning System
|
PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec
|
|
S/N Ratio
|
More Than 48dB(AGC off)
|
|
Electronic Shutter
|
PAL: 1/50~1/100,000 Sec; NTSC: 1/60~1/100,000 Sec, auto
|
|
Gamma Characteristic
|
0.45
|
|
White Balance
|
Auto
|
|
Lens Option
|
1.8mm Wide angle lens
|
|
BLC
|
Auto
|
|
AGC
|
Auto
|
|
Sync System
|
Internal Synchronization
|
|
Video output
|
1Vp-p 75 Oms , Negative
|
|
Power Consumption
|
12V± 10%DC, 50mA
|
|
Operation Temperature
|
-10℃ ~ + 50℃, RH 95% Max
|
|
Storage Temperature
|
-20℃ ~ + 60℃, RH 95% Max
|
|
Housing
|
Black
|
|
Dimension
|
15x15mm
|
|
Weight
|
30g
|
|
Supplied Accessories
|
User manual, camera with cable
|
