Jinjiang City Chaojun Machine Co., Ltd.
China Manufacturer with main products: Fabric Strip Cutting Machine, Strip Cutting Machine, Shoes Machine, Fabric Cutting Machine, Shoes Insole Making Machine, Luggage Forming... |
strip cutting machine
| FOB Price: | 1.00 - 10,000.00 USD/Set |
|---|---|
| Supply Ability: | 2 Set(s) per Day |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Fujian in China |
| Packaging Details: | 1.Inspection-free Wooden packing 2.Dimension: 2.85m*0.8m*1.3m 3.Weight: 700kg |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Dimension(L*W*H): 2.8m*0.85m*1.5m
- Power(W): 1.5Kw
- Voltage: 220V/380V
- Model Number: CJ-170ZM
- Brand Name: CHAOJUN
- Automatic Grade: Automatic
- Condition: New
Specifications
Specifications
2. CNC smart cutting, accurate to 0.1mm
3. Easy, quick, quality
Application:
CNC fabric Tangent bundle machine suitable for cloth, nonwoven fabric, tent, umbrella, sponge foam, leather, reflective material, plastic, paper, double side adhesive tape, acetate various fabric, reinforced tape, electric conductive fabric, copper foil and other materials of various width straps. The idea choice of industries of garment, bags, footwear, hats, garment subsidiary material, reflective material factory, tent factory, umbrella factory, transformer factory, electron factory and other industries.
Specification:

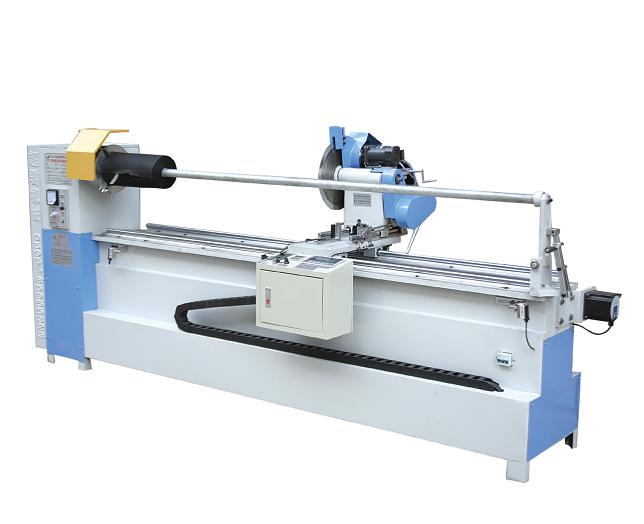

Product Name: CNC fabric Tangent bundle machine
Cloth width: 1.7m (2.05m, 2.4m ... customized)
Rotating speed of cloth roll: 0-800rpm/min
Diameter of cloth axis: 37mm
Power: 0.75kw
Blade power: 1.5kw
Minimum Width of cut strap: 2mm
Voltage: 380v/220v optional
Machine measurement: 2.7m*0.75m*1.4m
Features:
1. Principal axis and circular knife use stepless speed regulation system, it enable to change rotating speed and control positive/negative switching.
2. Equipped with the automatic system, can be sharpened without move blades; With dust cleaning equipment, keep fabric and strack clean.
3.Using imported high precision system to control cutting width, with precision ball screw and slide, control cutting width of 0.1mm, to achieve high precision cutting.
4.Using imported screw ball and slide track, parallel to cut, Using stepless speed regulation AC motor, steadily move without abrasion to get the best quality.
5.Using LCD screen, can be directly input kinds of cutting width, and amount; Equipped with the conversion functions of manual or automatic.
6.Using rapidly feeding design, you can operate it easily.
This CJ-170ZM CNC fabric Tangent bundle machine could be combined use with CJ-170BD automatic cloth rewinding machine.
