Portable Fire Water Foam Monitor

FOB Price:	200.00 - 1,000.00 USD/Set
Supply Ability:	5,000 Set(s) per Month
Shipping:	3 days after receiving the deposit
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	standard export package for PSY Series Portable Firefighting Water Monitor

Quick Details

Model Number: PSY
Brand Name: China Coal

Specifications

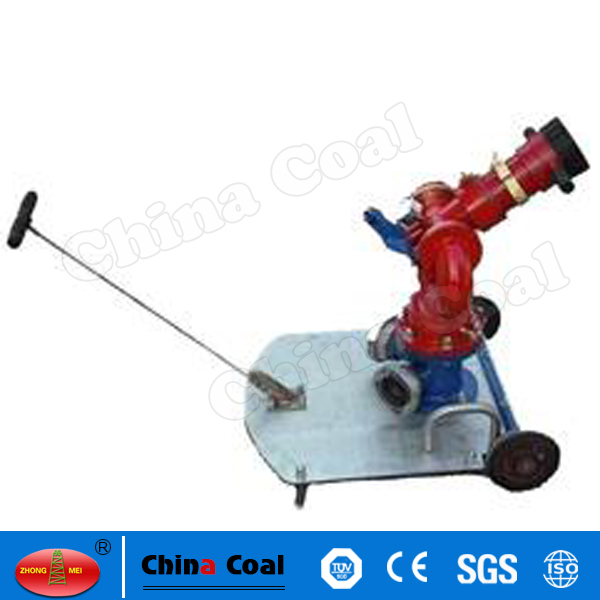

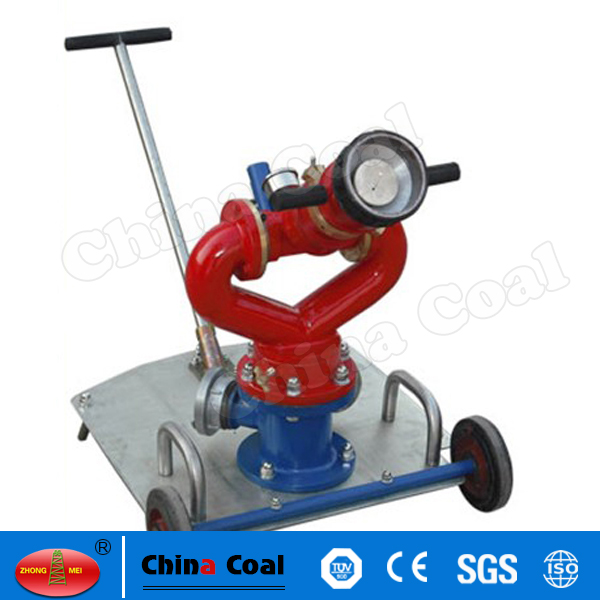

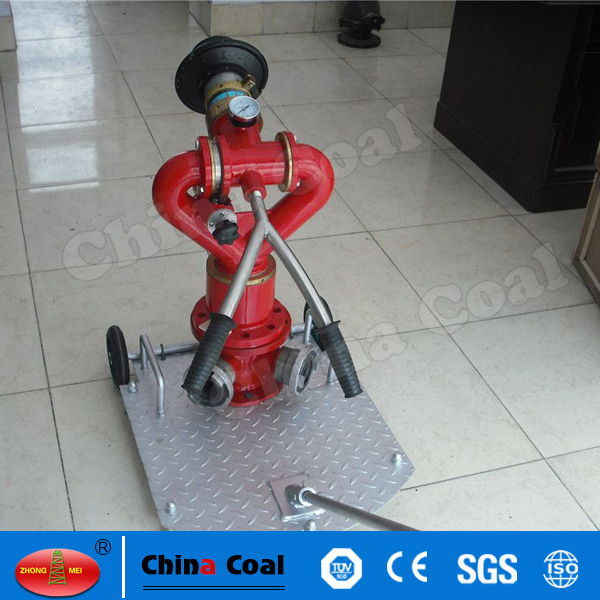

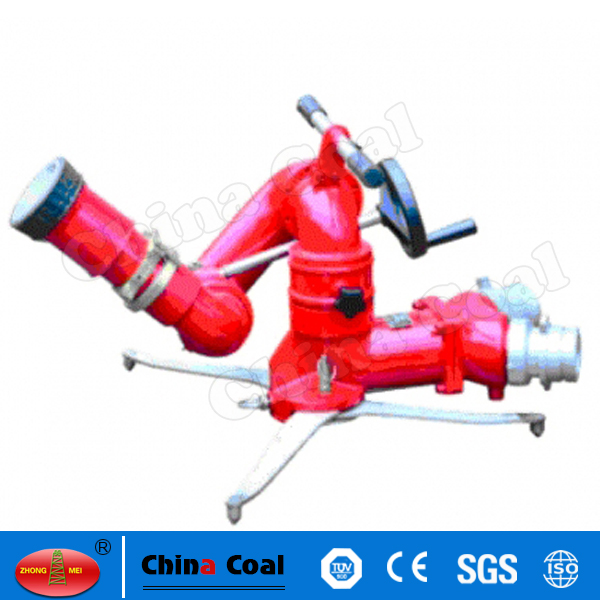

PSY Series Portable Firefighting Water Monitor Introduction

The PSY series portable firefighting water monitor is a new fire-fighting equipment with advanced level and multi-function . It has small size, light weight and it is foldable. It is designed with perfect features and high reliability and easy to operate at the same time. It is often equipped on fire trucks and fire boats and widely used in oil industrial, wharf and marine.
The nozzle of the monitor was made as the deflector theory, making it has concentrated jet flow, big flow, long range and multi-function.
Features of PSY Series Portable Firefighting Water Monitor
1, It can either be current spray or mist spray that controlled by a knob.
2, Easy to operate and the barrel can either rotate or fasten.
3, Flow can be adjusted from 20~50L/S as demands.
4, The horizontal angle and pitch angle can be changed to fit different fire disaster.
PSY Series Portable Firefighting Water Monitor Parameter

Model	Rated working pressure (Mpa)	Working pressure range (Mpa)	Rated Flow (L/s)	Biggest range (m)	Pitch Angle (Degree)	Horizontal Angle (Degree)	Spray Angle (Degree)
PSY20	0.8	0.5-1.2	20	≥45	30-70	360	110
PSY25			25	≥50
PSY30			30	≥55
PSY40			40	≥60
PSY50			50	≥70
