high power wifi module Video transmission and control uav

FOB Price:	30.00 - 40.00 USD/Piece
Supply Ability:	99,999,999 Piece(s) per Day
Shipping:	Western Union
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

Model Number: SKW77
Brand Name: SKYLAB
CHIP: MT7620N
Voltage: 3.3v

Specifications

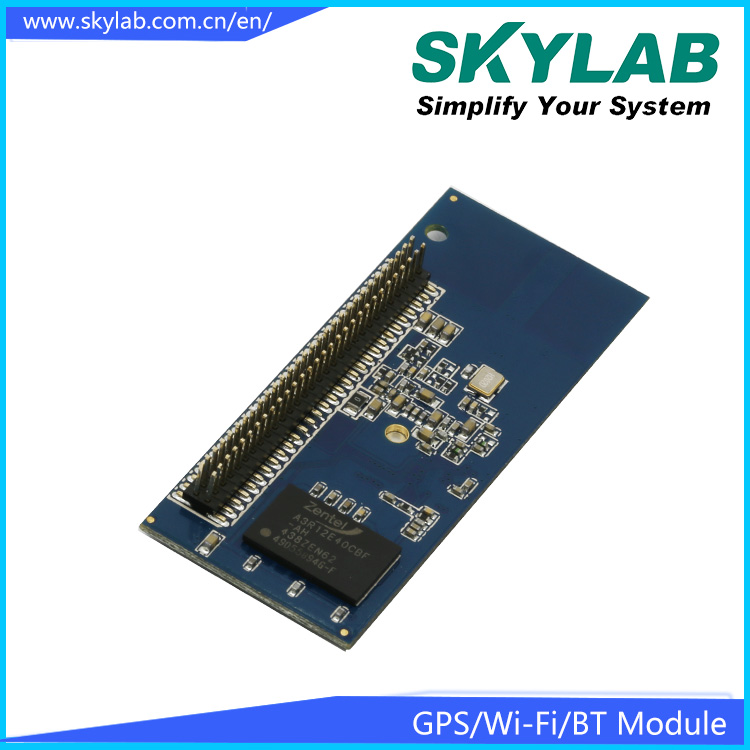

SKW77 Description

The SKW77 is a highly power wifi module, it compliant to 802.11 b/g/n Wi-Fi Solution for highly performance WLAN requiring up to +27dBm output power. The module requiring a external 3.3V power supply and a external 5.0V power supply . The module based on the single chip MT7620A which integrates an 802.11n 2x2 MAC/BB/radio. It supports 802.11n operations up to 144 Mbps for 20 MHz and 300 Mbps for

40 MHz channel respectively, and IEEE 802.11b/g data rates. The module support AP mode and client mode and router mode.
high power wifi module Video transmission and control uav

Features

n IEEE 802.11b/g/n 2x2 300Mbps WLANs

n Transmit power up to +28dBm.

n DDR2 memory up to 512Mb

n Flash memory up to 64Mb

n 2LAN ports and 1WAN port

n Support USB 2.0 host device

n Support USB disk.

n Support AP/Client/Router mode

n Security: WEP 64/128, WPA, WPA2,TKIP, AES, WAPI

n RoHS compliance meetsenvironment-friendly requirement.

n 59(L) x 28.9(W) x 9.0(H) mm smalldimension
