| Place of Origin: | Shandong in China |
|---|
Quick Details
- Type: Furniture Caster
- Model Number: 9660 plate type swivel spring damping caster
- Brand Name: UNIONLEVER
Specifications
|
>>Features:
1. Uniformity force,5 phases design for absorber; 3. Facility and handling equipment avoiding noisy affect; |
>>96SERIES OVERALL HEIGHT CHANGE THE AMOUNT
| TYPE | TYPE | A(M.Opening) A | B(M.Deflection) B | Deviation |
| 9650S/R | 2 | 7-3/8(187.5) | 6-27/32(174) | 13.5 |
| 9660S/R | 2 | 7-7/8(200) | 7-11/32(186.5) | 13.5 |
| 9680S/R | 3 | 10(252) | 9-15/64(234.5) | 17.5 |
>> Fastening Specifications for 96 Series Unit:mm
| FASTENING TYPE | FASTNING SHAPE | FASTENING CODE NO | FASTNNING SPECIFICATION | ||
| OVERALL SIZE | BOLT HOLE SPACING | BOLT SIZE | |||
| TOP PLATE | A1(Basic Specification) | 100×114 | 66.7*92 to 76.2*76.2(71*84) | M10 | |
| A2 | 114*158 | 62*125 to 86*133(74*129) | M12 | ||
>>> 96 Series Specifications Unit:mm
| CASTER PART NUMBER | WHEEL SPECIFICATION | CASTER SPECIFICATION | ||||||||
| SWIVEL | RIGID | BRAKE | DIAMETER | TREAD WIDTH | TYPE | BEARING |
AXLE DIA USE BOLT |
OVERALL HEIGHI | SWIVEL RADIUS |
LOAD CAPACITY (kg) |
| 9660 plate type |
6 (152) |
polyurethane/Cast Iron | Ball | 13.7 | 200 | 126 | 350 | |||

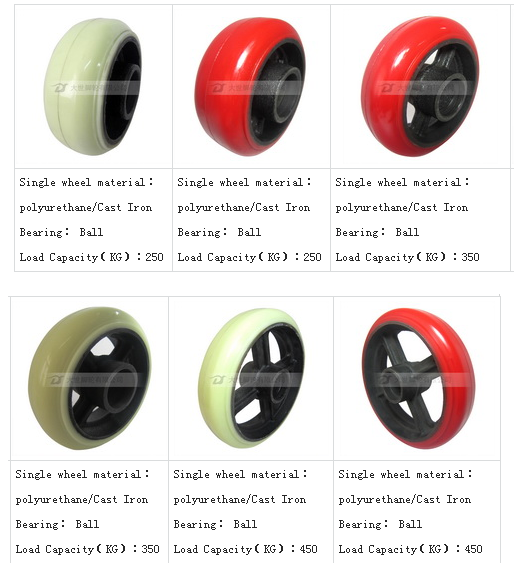

>>>9660 Series Single wheel material display
>>>9660 Plate type swivel finished products display
>>>Specifications for 96 Series
| ACCESSORIES CODE | DESCRIPTION |
| PC | Polyurethane Tread Caster lron Core Wheel(Bass Color's Red) |
| RC | Rubber Tread Caster lron Core Wheel(Bass Color's Red) |
| BG | Beige Color Wheel Available |
| TR | Top Lcok Brake(On/Off Type)(on/off) |
