High Quality Adsl Hwsp 168 Adsl DSL Splitter sp-206 with line
| FOB Price: | 0.43 - 0.51 USD/Piece |
|---|---|
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |

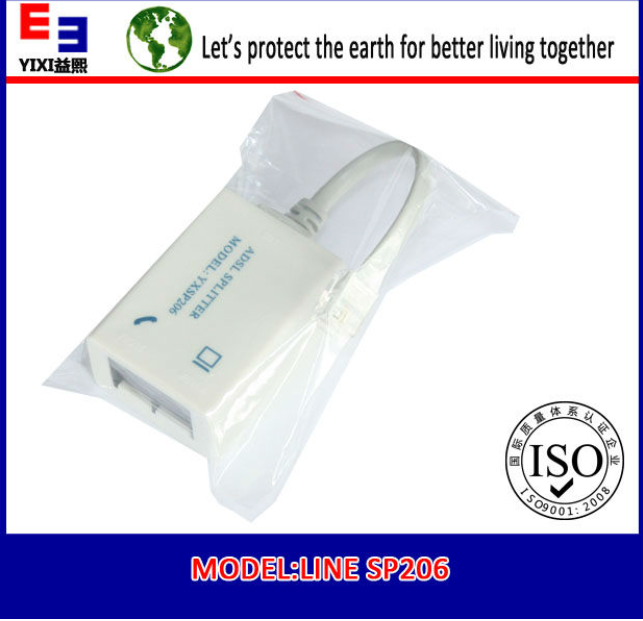

| Packaging Details: | carton package or customization |
Quick Details
- Model Number: SP-206
- Brand Name: Yixi
- white: with line
Specifications

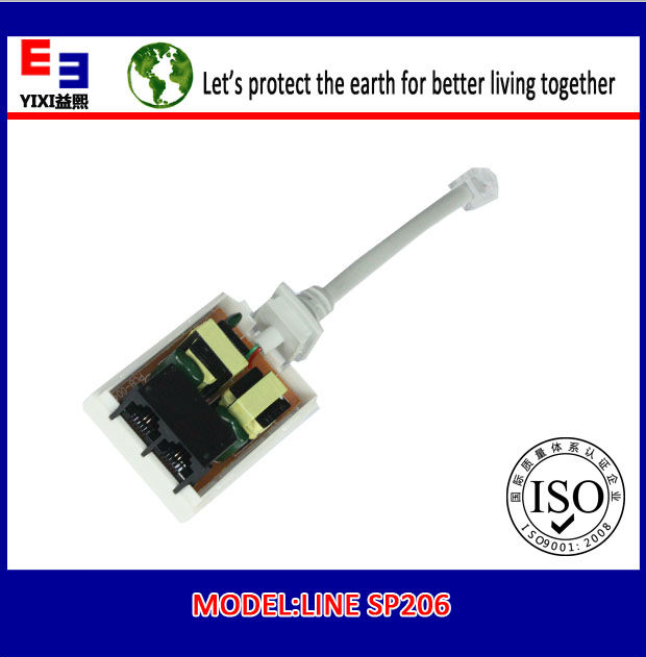

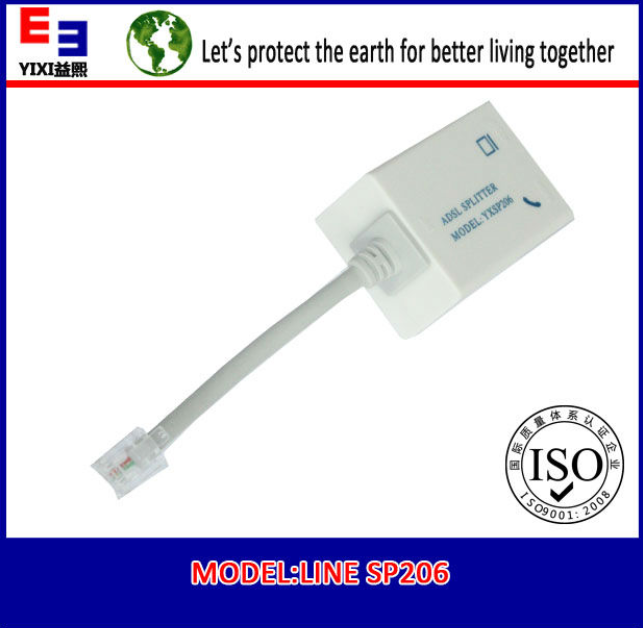

ADSL splitter SP-206
- Professional design, manufacture - XDSL SPLITTER/ FILTER.
- Can pass the ROHS demonstration.
- Independent design and production.
- Complete split with DSL and the POTS.
- Ease of installation.
- Operating temperature : -35 °C to 85 °C.

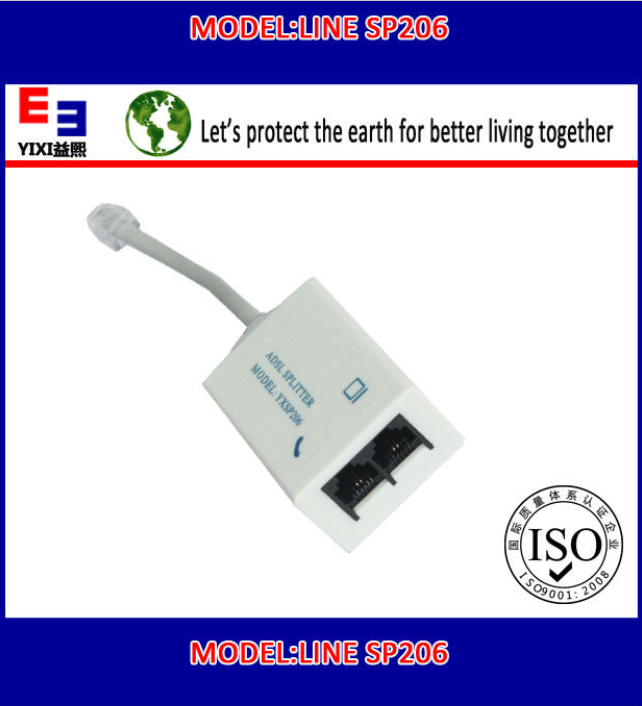

- cable (Line), 2 rj11 (Phone, Modem).
- Conforms YD/T1187-2006 standards&ITU-T G.992.1.E1.
- 2 + ADSL Splitter.
- Passed ISO9001.
| POST PORT IMPEDANCE | Zr=600 Ω | |
| Modem impedance | 30 kHz to 4.4M Hz | 100 Ω |
| Insertion loss | @ 1020 Hz | <0.3dB |
| 200 Hz<f<3.4 kHzwith 1020Hz center | <± 1 dB | |
| Return loss | 300 Hz< f< 500 Hz | >=14 dB |
| 500 Hz< f< 2000 Hz | >=18 dB | |
| 2000 Hz< f< 3400 Hz | >=14 dB | |
| Longitudinal conversion loss LCL | 50 Hz< f< 600 Hz | > =40 dB |
| 600 Hz< f< 3400 Hz | >=46dB | |
| 3400 Hz< f< 30K Hz | >=40dB | |
| 30K Hz< f< 1104K Hz | >=45dB | |
| 1104K Hz< f< 4.4M Hz | >=30 dB | |
| Delay distortion | 500 Hz<f<2800Hz | 150 u sec |
| DC resistance | <25 Ω | |
| Isolation resistance, branch-branch | 100 VDC; term = ∞ Ω | >5MΩ |
| Stop band attenuation | 30 kHz<f<138 kHz | >45 dB |
| 138 kHz<f<4.4 MHz | >55dB |
