Automatic bottle sides labeling machine

Specifications

1. The Scope of Application

Label one side,two sides, three sides or more sides on different kinds object with one label,such as bottle,bucket,carton and so on.

1. Device Characteristic

• Adopt mature technology PLC control system, operation is stable and high-speed;

• Using touch-screen control operating system, simple and efficient;

• Screw adjustment to suppress body movements accurately

• Synchronization chain mechanism ensure labeling smooth and precise calibration.

• Advanced technology of pneumatic coding system, print the batch number and   expiry date clearly.

• Transmission-type roll label device, make sure the label attached more firmly;

• Butterfly designed station, machine's angle can be adjust to adapt different bottle's shape and size;

  3. Device Advantages

• Imported electric elements, stable performance, low failure rate;

• Adopting photoelectric detection, PLC control, software operation, conveyor belt, labeling accurately and high precision;

• Can be operated alone or connect with the production line;

• No bottle not labeling, automatic alarm when achieve leakage label.

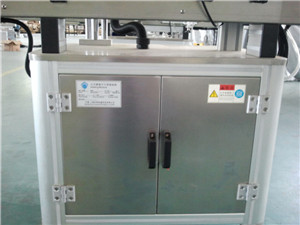

• The whole machine use material of S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust;

1. The mechanism and process

• The bottle separated by separate bottle device, the bottle transported to the conveyor move stably through the press bottle device;

• When the sensor test the bottle, send the signal to PLC;

• The PLC received the signal and send to servo motor .

• The servo motor drive the outing label motor to send label.

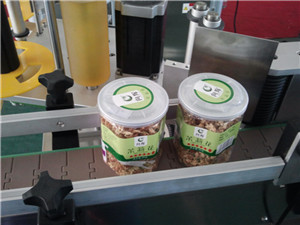

• The bottle transported to the brush label device, fix the label on the bottle more smooth , then to the next process.

• Model	SLM-A
  Driving Mode	Servo motor
  Yield(pcs/min)	60-160
  Operating direction	Left or Right
  Conveyor Speed(m/min)	≤40
  Labeling Accuracy	±1.0 mm
  The inner diameter of label roll	76 mm
  The outer diameter of label roll	350 mm(max)
  The suitable size of label	Width 15-150 mm  length 15-300 mm
  The suitable size of label objects	Can customized
  Power(w)	600W
  Printer use air	5kg/cm 2
  Voltage (In China)	AC220V 50/60HZ Single phase (Can customized as buyer need)
  Weight(kg)	260
  Size of machine	2200(L) 1350(W) 1500(H)mm
