Quick Details
- Model Number: DAM
- Brand Name: King Pigeon
Specifications

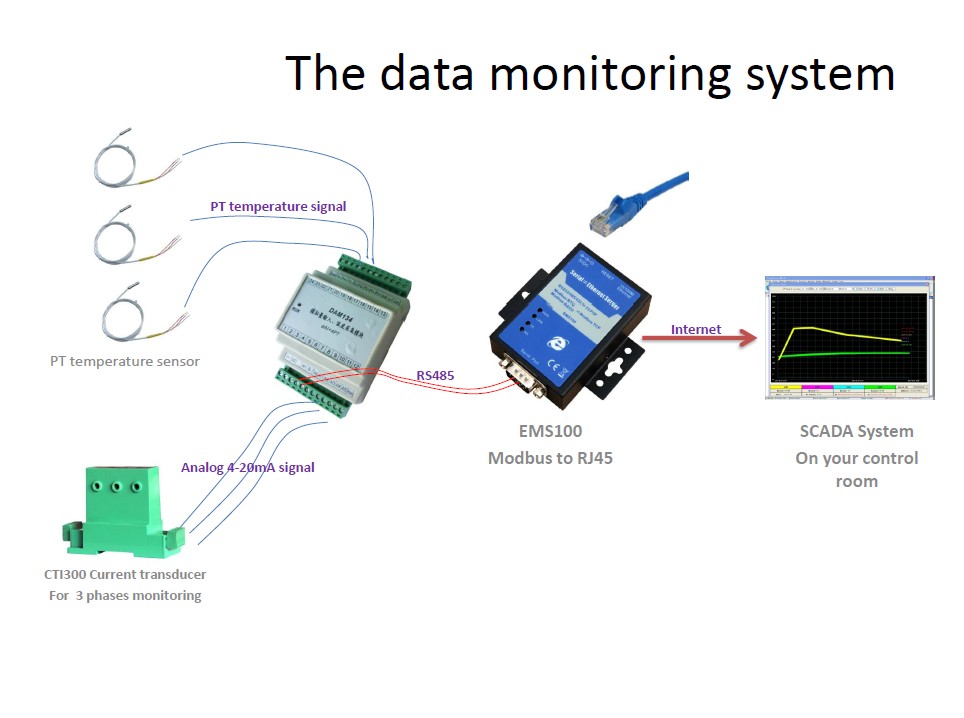

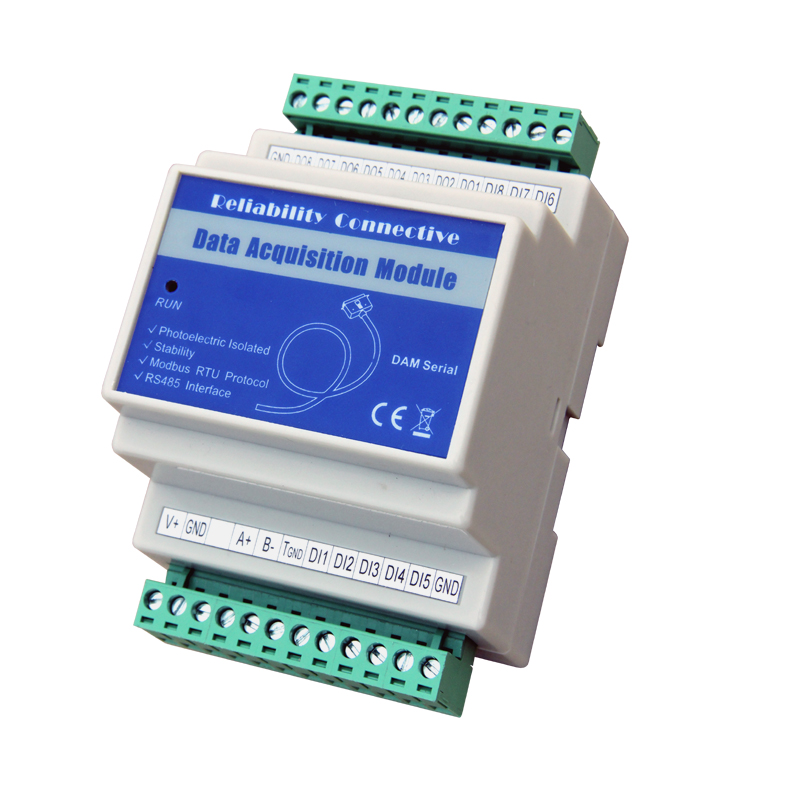

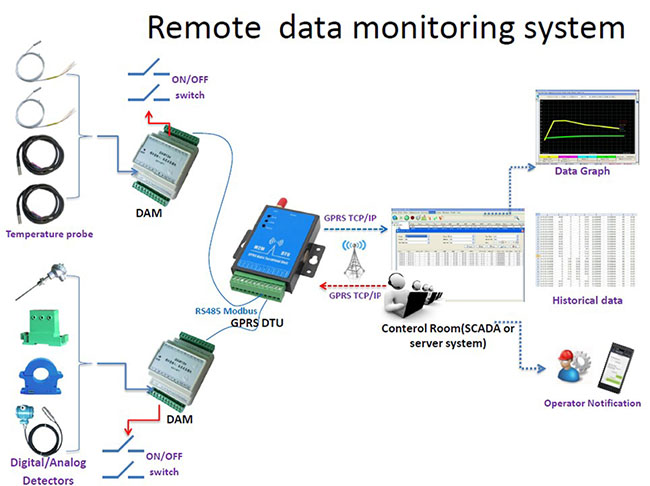

The DAM series is a Data Acquisition Module, used widely in industrial automation control systems. E.g.: Base Transceiver Station, diesel generator rooms, engine room, transformer substations, telecommunication equipment rooms, power supply systems and so on. It supports Modbus RTU Protocol over RS485 serial port, special for extend I/O by RS485 ports to save cabling and cost. The DAM series is an industrial class, isolated designed, high reliability, low-power consumption, high stability and high precision data acquisition module. Standard 35mm DIN rail makes it easy to install in fields.
fields.
|

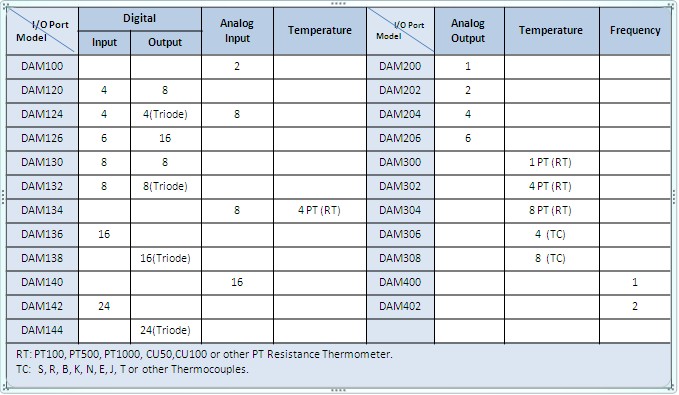

Analog Output Modules |
|
Model: DAM206 Name: 6-Channel Analog Output 6 channel analog output signal: Default is 4～20mA, Optional: 0～20mA, 0～5V, or 0～10V; RS485 Modbus RTU, 12VDC(Default) or 24VDC(Optional). |
|
Themermeter and Themercouple Modules |
|
Model: DAM306 Name: 4-Channel Thermocouple For measuring 4-channel thermocouple, Default is S, Optional: R, B, K, N, E, J, T or other thermocouples, RS485 Modbus RTU, 10~30VDC.24-bit resolution. |
|
Model: DAM308 Name: 8-Channel Thermocouple For measuring 8-channel thermocouple, Default is S, Optional: R, B, K, N, E, J, T or other thermocouples, RS485 Modbus RTU, 10~30VDC.24-bit resolution. |
|
Power Frequency Measurement Modules |
|
Model: DAM402 Name: 2-Channel Frequency Measurement Module For measuring 2 - channel pulse current or alternating current frequency, RS485 Modbus RTU, powered up by 8~30VDC, measurement frequency range is 0~50, 60, 100, 200, 500, 1k, 2k, 5k, 10k, 20k, 50k, 100kHz,voltage range is 20mV, 5V, 12V, 24V, 100V, 300V, 500V. Optional analog output range is 0~20mA, 4~20mA,0~5V,0~10V. |
|
DIN, AIN, DOUT, Analog Output Thermeter Combination DAQ IO Modules |
|
Model: DAM136 Name: 16DIN Module For monitoring 16 digital input(can be used as pulse counter). It supports Modbus RTU Protocol over RS485 serial port. Powered up by 10~30VDC. |
|
Model: DAM138 Name: 16DO Module For controlling 16 triode drivable digital output(50V/100mA,can be TTL or Pulse output). It supports Modbus RTU Protocol over RS485 serial port. Powered up by 10~30VDC. |
|
Model: DAM140 Name: 16AIN Module For monitoring 16 analog inputs(Default: 4~20mA, Optional: 0~20mA,0~5V,0~10V). It supports Modbus RTU Protocol over RS485 serial port. Powered up by 10~30VDC.16-bit resolution. |
Mainly Features:
- 16-bit resolution high precision AD acquisition and data processing techniques;
- 2 analog input, can be 0~20mA,4~20mA,0~5V,0~10V or AC and DC 0~5A, 0~500V;
- Wide range power supply with reverse polarity connection protection;
- Modbus RTU Protocol;
- ESD Protection circuit for RS485 serial port;
- Using industrial-grade chips;
- Built-in watchdog ensure it reliability;
- LEDs for status indication makes it easy to program in filed.
