Foshan Luzhou PU Machinery Co., Ltd.
China Manufacturer with main products: PU Machine, High Pressure Foam Machine, Low Pressure Foam Machine, PU Shoe Insole and Outsole Machine, Memory Pillow Foam Machine, Seat... |
Home
>Products Catalog > sandwich panel production line > PU Boards Making Machine, Roof Metal Sheet Foaming Machine, Polyurethane Panel Plant
PU Boards Making Machine, Roof Metal Sheet Foaming Machine, Polyurethane Panel Plant
| Supply Ability: | 20 Set(s) per Day |
|---|---|
| Shipping: | 30 to 40 days |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | plastic film or discussed |
Quick Details
- Processing Type: Foaming Machine
- After-sales Service Provided: Engineers available to service machinery overseas
- Brand Name: luzhou
- Condition: New
- Processing Type: automatic
- Warranty: life-time
- Weight: 8000kgs
- Dimension(L*W*H): 8000*2500*2500mm
- Power(W): 5000
- Voltage: 220/380V
- Model Number: LZ-908
Specifications

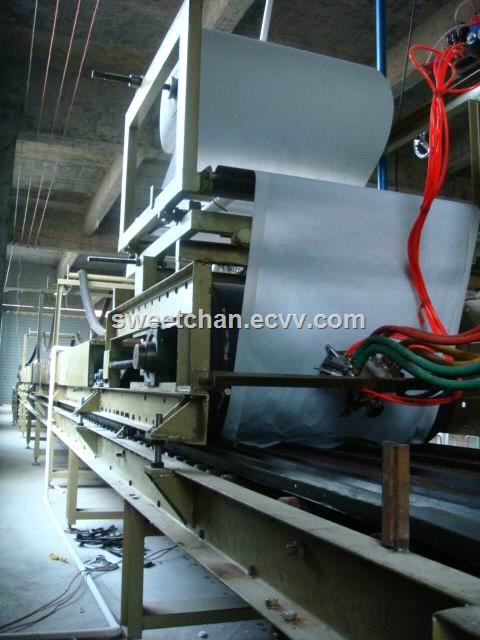

PU boards making machine,roof metal sheet foaming machine, polyurethane panel plant
Product Applications:

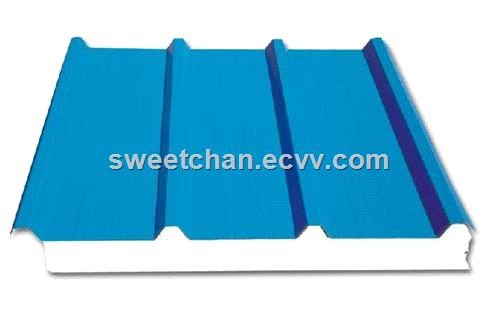

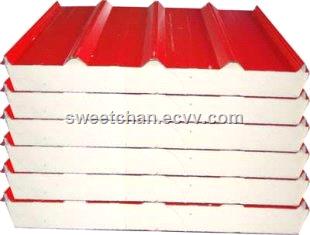

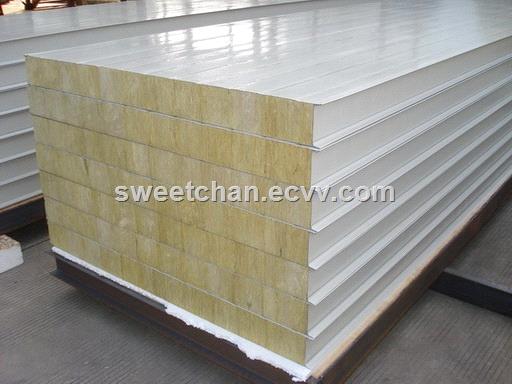

this machine used for steel tile, activity sheets, PU insulation products, PU sheets, PU composite panels, ect.
PU color steel plate foam machine, PU sanwich panel foam machine, PU color steel plate production line
Main Technical Parameters:
Item No. |
LZ-908 Color steel plate foaming machine |
Power |
Gross Power: 26KW,4*380V/60HZ |
Applicable Foaming |
Rigid, semi-rigid, ect. |
Injecting Flux |
60g-150g/S (Attention:the flux could be configured) |
Injecting Pressure |
0.1MPA-3.99MPA |
the mix proportion |
100-60;100-120 |
Viscosity(22) |
POLY 500-2000MPAS |
Viscosity(22) |
ISO 500-2000MPAS |
Time of injecting |
Continuous |
Precision of injection |
0.1/100 |
Pneumatic operating pressure |
0.6-0.8MPa |
Area of Machine |
Width: 2.3M; Height: 2.6M;Height:3.5M |
Weight of Machine |
1.5 Ton |
Pouring Head |
Type of Pour Plug |
Heating System |
the temperature can be controlled automatically |
Product Characteristics:
- Control: Microcomputer PLC control; TIAN electricalcomponents exclusively imported to achieve the goal for automatic, accurate and reliable control can be imputed with more than 500 working position data; pressure, temperature and rotation rate digital tracking and display automatic control; abnormity or fault alam devices.Improted frequency converter (PLC) can control the proportion of 8 different products.
- Main unit:Material injection by a precision needle valve,which is taper sealed,never worn,and never clogged; the mixing head produces complete material stirring; precise metering (K series precision metering pump control is exclusively adopted); single button operation for convenient operation; switching to a different desity or color at any time;Easy to maintain and operate.
polyurethane plant from this supplier
FOB Price: 11800.00-28800.00 USD/Set
Min Order: 1 Set
FOB Price: 4000.00-8000.00 USD/Set
Min Order: 1 Set
FOB Price: 14000.00-15000.00 USD/Set
Min Order: 1 Set
