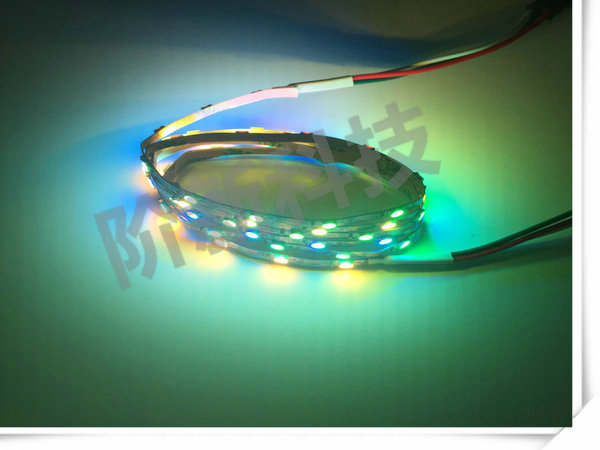

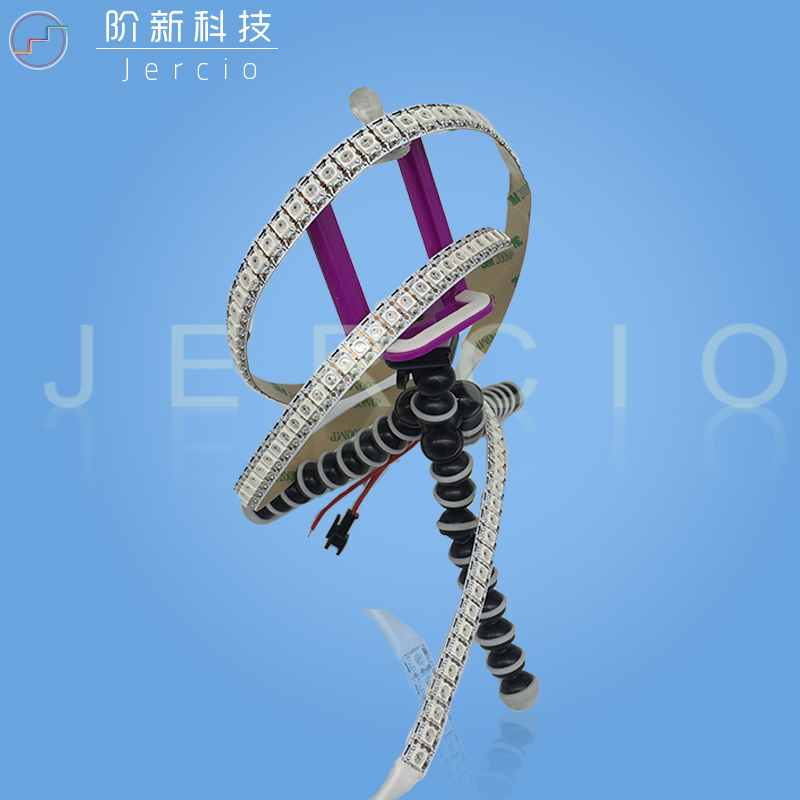

Jercio XT-144L-144 LED Bare board

Specifications

Main Advantages:

  The lamp strip adopting the world's first built-in IC series lamp driving light emitting various XT1511 drive IC based plus a 104 capacitors. Driving lamp lamp panel looks very simple and beautiful, and the same XT1511 drive IC is a performance very stable brightness is very high. It is made of beads, high brightness, stable performance, surface appearance, concise, convenient production, low cost, so
Low barrier... Is the ideal choice for lighting lighting outdoor lighting design.

Technical details:
1, product type: XT1511 color light one meter 144 lights 144;

2, light source: SMD 5050 LED;

3, plate: FPCB;

4: Taiwan epstar chip, chip, and other chips in Taiwan;

5, IC model: XT1511, (1 m 144 IC, 1 IC 1 LED control lamp);

6, gray level: 256, (1 m 144 pixels);

7, LED number: 144 lights / meters, every 1 lights for a group, you can cut;

8, light emitting angle: 120 degrees;

9, light emitting color: can be adjusted by the controller, white, red, yellow, blue, green, and so on;

10, standard operating voltage: 5V DC;

11, power: 43.2W + 10% / m;

12, waterproof grade: waterproof, epoxy (IP65), (IP67), casing casing solid glue (IP68) etc.;

13, FPCB board size: width: 12mm, thickness: 2 oz;

14, FPCB color: white, yellow, black (in addition to white outside the need to be customized);

15, packing: 2 m / roll, light bar back 3M adhesive, electrostatic bag packaging;
