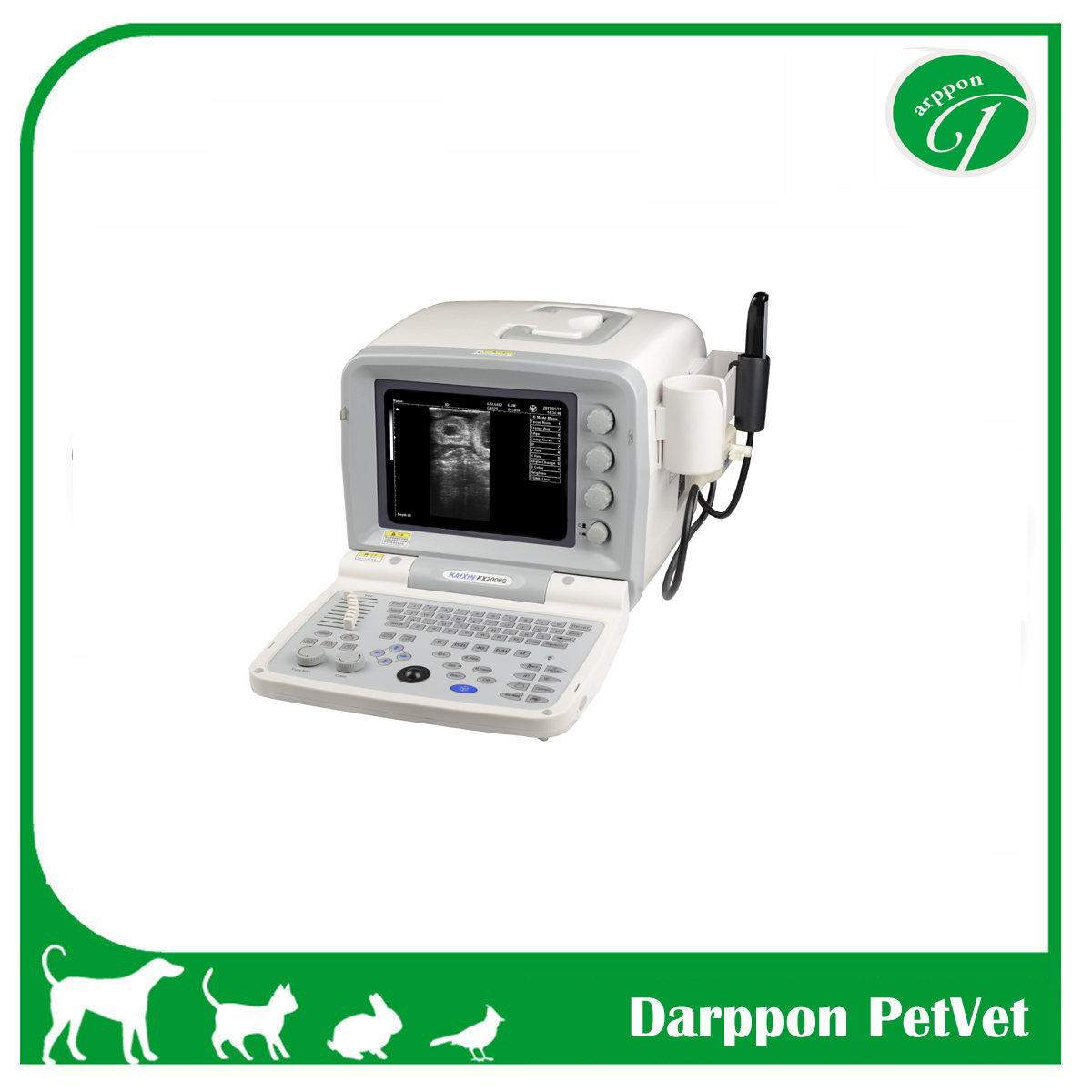

Ce Approved PC Based Medical System Digital Portable Ultrasound Scanner

Full digital B mode ultrasonic diagnostic instruments KX-2000G
- 10" high resolution CRT monitor, progressive scanning without sparkle.
- Double probe sockets, support several optional probes.
- Menu operation, support 5 customized languages: English, Spanish, Russian, French, and Portuguese.
- 10 grades depth adjustment, maximum display depth is 236mm.
- 100 frames permanent storage, 256 frames cine loop.
- light touch keyboard, photoelectric trackball and encoder, easy to operate.
- Dual-mode TV output: PAL/NTSC, connecting to thermal printer and ultrasonic working station.
- General measurement: Distance, perimeter, area, volume, heart rate, GA, EFW, EDD.
- Obstetric measurement and analysis: 15 kind of obstetric tables, LMP input, etc. Several GA measurements, amniotic fluid index, fetal growth curve and OB report.
Parameter:
- Adopt ARM7 Embedded Control Systems, FPGA signal processing system and specially selected ultrasonic hardware system, making the machine more reliable.
- 10" high resolution CRT monitor, line by line scanning without sparkle.
- Menu operation, support 5 customized languages: English, Spanish, Russian, French, and Portuguese.
- Double probe sockets, automatically identify the probe, support several optional probes.
- Body mark: 64 pcs of body marks with probe position.
- Display mode: B, 2B, 4B, B/M, M, total 5 kinds.
- 10 grades depth adjustment, maximum display depth is 236mm.
- Gain range: 0~127dB.
- Dynamic range: 27~90dB.
- Gray: 256.
- Intelligent TGC control: 8 grades.
- Frame frequency: 30 frames /second.
- Pseudo-color: 8 kinds (incl. B/W).
- Equipped with lithotripsy software, realize real-time positioning measurement.
- General measurement: Distance, perimeter, area, volume, angle, length and area stenosis ratio measurement.
- Obstetric measurement and analysis: 15 kind of obstetric tables, LMP input, etc. Several GA measurements, amniotic fluid index, fetal growth curve and OB report.
- Gynecology measurement and analysis: Gynecology general measurement and gynecology report.
- Urology measurement and analysis: Residual urine volume, prostate volume, and urology report.
- Two USB ports support large capacity USB disk (support document management/software upgrades/one-key storage), and color laser printer directly print various image and reports.
- Dual-mode TV output: PAL/NTSC, connecting to thermal printer and ultrasonic working station.
- Power supply: AC110/230-15% ~ + 10% (self-adaptation supply voltage) 60/50 hz ± 1 hz.
- Net weight: 12kg.
- Main unit size: 387 x 319 x 270 mm (length x width x height).
Standard configuration:
- Main unit: 1 pc.
- 10" high resolution CRT monitor.
- Double probe sockets, automatically identify probe technology.
- 3.5MHz multi-frequency abdomen convex probe: 1 pc.
Optional configuration:
Probe
- 6.5MHz multi-frequency trans-vaginal probe
- 5.0MHz multi-frequency micro-convex pediatrics probe
- 7.5MHz multi-frequency high linear probe
- Trolley
- Thermal printer (P93W-S)
- Color LCD monitor
