Quick Details
- Model Number: HDCN0007M1
Specifications
Product Description

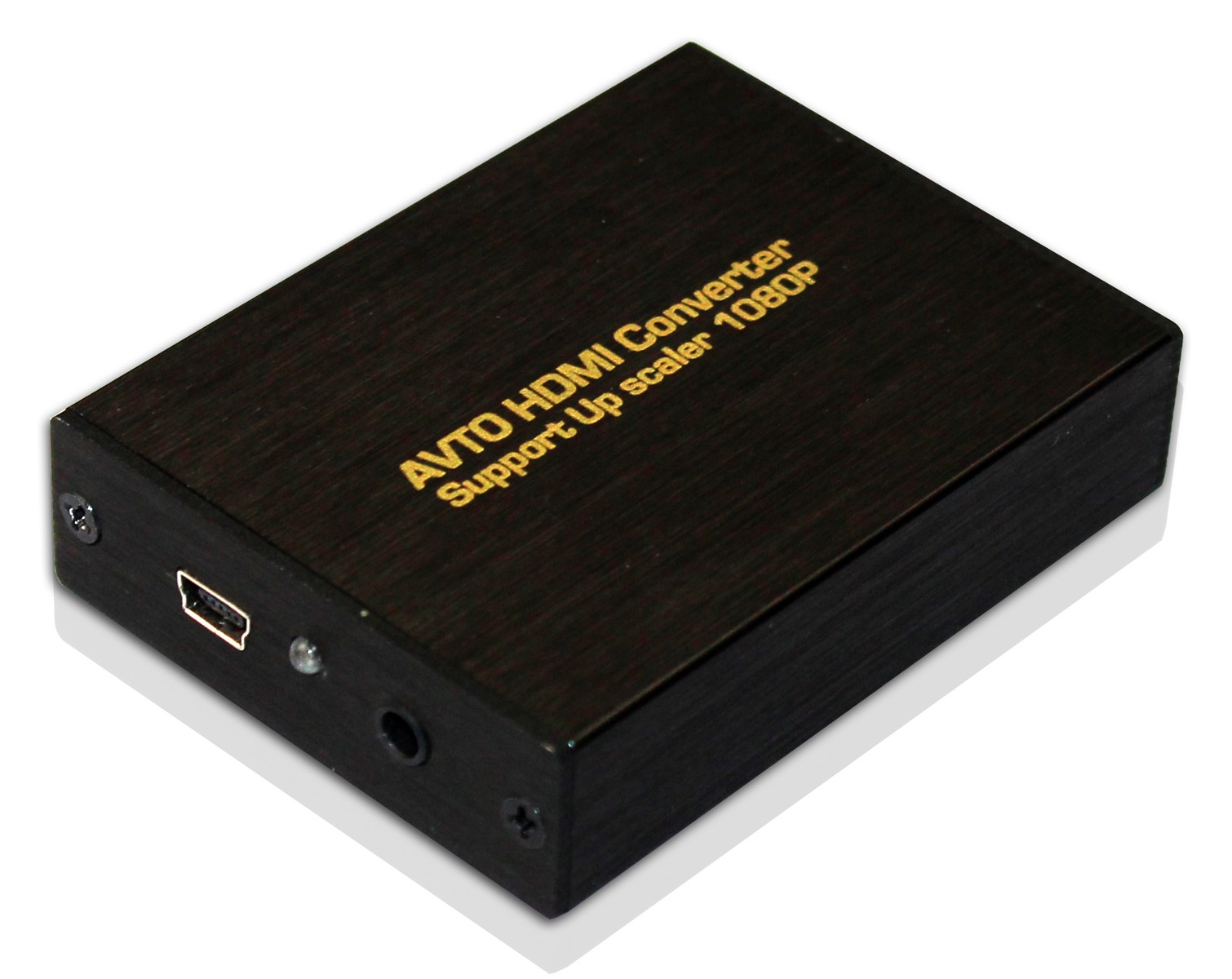

AV to HDMI converter
Product Feature
1. One CVBS signal and R/L analog audio signal input
2. One HDMI Signal output(the output HDMI signal resolution up to 1080p/60Hz)
3. By the button switch, it can choose 720p or1080p output.
4. Adaptive PAL / NTSC standard.
5. Support output up to 15 meters AWG26 cable length
6. No loss of quality
7. Installs in minutes
8. Need DC 5V/1A power supply
1. One CVBS signal and R/L analog audio signal input
2. One HDMI Signal output(the output HDMI signal resolution up to 1080p/60Hz)
3. By the button switch, it can choose 720p or1080p output.
4. Adaptive PAL / NTSC standard.
5. Support output up to 15 meters AWG26 cable length
6. No loss of quality
7. Installs in minutes
8. Need DC 5V/1A power supply
Product Specification/Models
Video input: CVBS
Analong audio Input: R/L Analog
HDMI output: 720P/ 60Hz or 1080p/60Hz
CVBS Signal input: 0.5~1.0Volts p-p 75ohm
Analog audio (R/L) input: 0.5~2 Volts p-p 47k ohm
Output DDC signal: 5Volts p-p (TTL)
Max working current: 600mA
Output Cable Length: no more than 15m,use the 26AWG HDMI Cable
Power adapter format: DC5V/1A
Working Temperature Range: (0 to +40 Degree Celsius)
Working Moisture Range: 5 to 90%RH (No Condensation)
Dimension (L x W x H): 68x51.6x16.5 (mm)
Weight: 65g
Video input: CVBS
Analong audio Input: R/L Analog
HDMI output: 720P/ 60Hz or 1080p/60Hz
CVBS Signal input: 0.5~1.0Volts p-p 75ohm
Analog audio (R/L) input: 0.5~2 Volts p-p 47k ohm
Output DDC signal: 5Volts p-p (TTL)
Max working current: 600mA
Output Cable Length: no more than 15m,use the 26AWG HDMI Cable
Power adapter format: DC5V/1A
Working Temperature Range: (0 to +40 Degree Celsius)
Working Moisture Range: 5 to 90%RH (No Condensation)
Dimension (L x W x H): 68x51.6x16.5 (mm)
Weight: 65g
