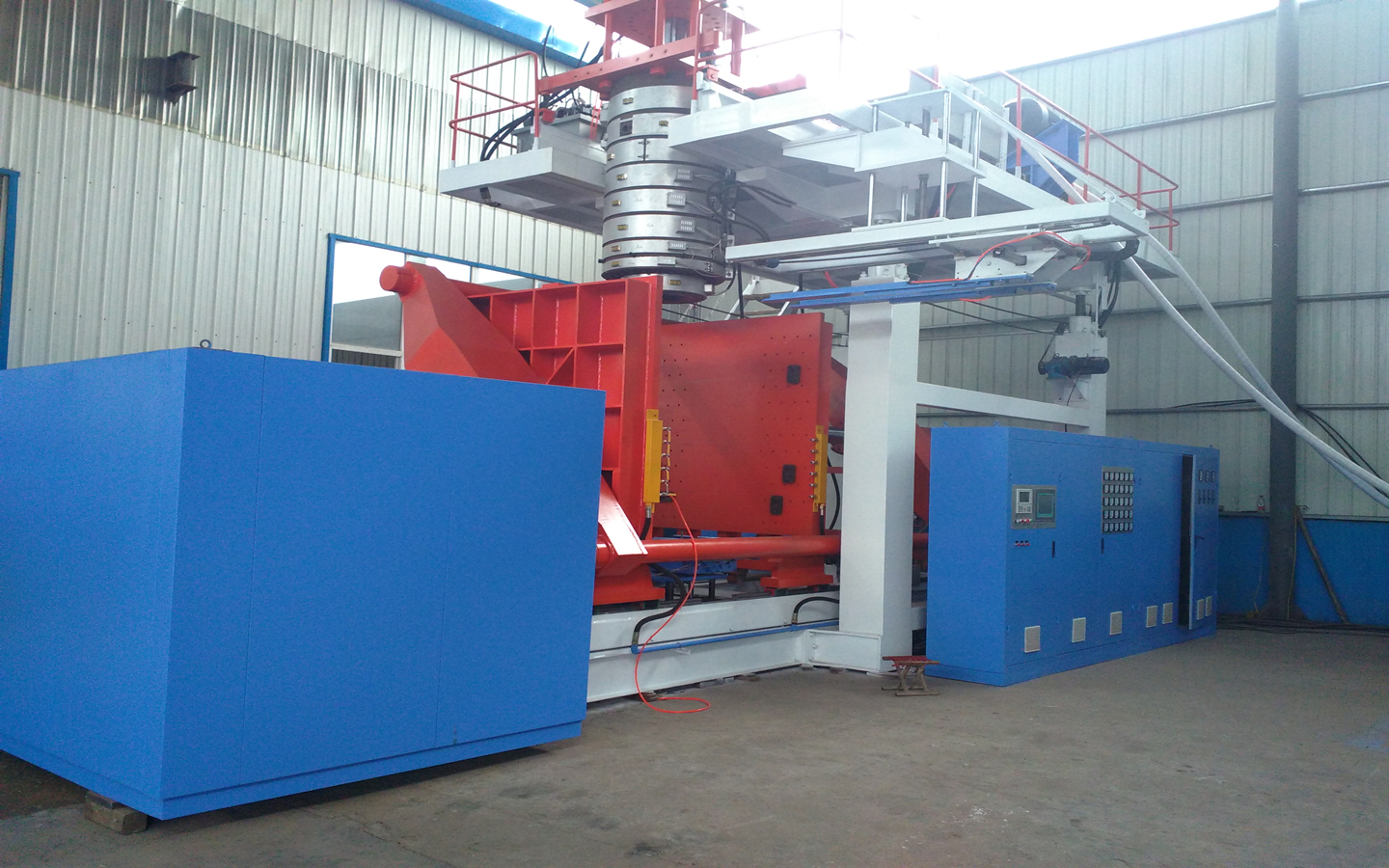

2000l 3 layers blow molding machine

FOB Price:	172,000.00 - 180,000.00 USD/Set
Supply Ability:	2 Set(s) per Month
Shipping:	BY SEA
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	South America, Southeast Asia, Mid East, Eastern Asia
Place of Origin:	Shandong in China
Packaging Details:	The machine will unfold into small parts, well packaged and put into containers. The whole machine and molds require two 40" open top containers (OT) and one 40" high container (HC) for loading.

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: CE
Weight: 38 Tons
Dimension(L*W*H): 8.6*6*7.5m
Power(W): 442KW
Voltage: 380/415V
Model Number: ST-2000-3
Brand Name: Suntop
Automatic: Yes
Blow Moulding Type: Extrusion Blow Moulding

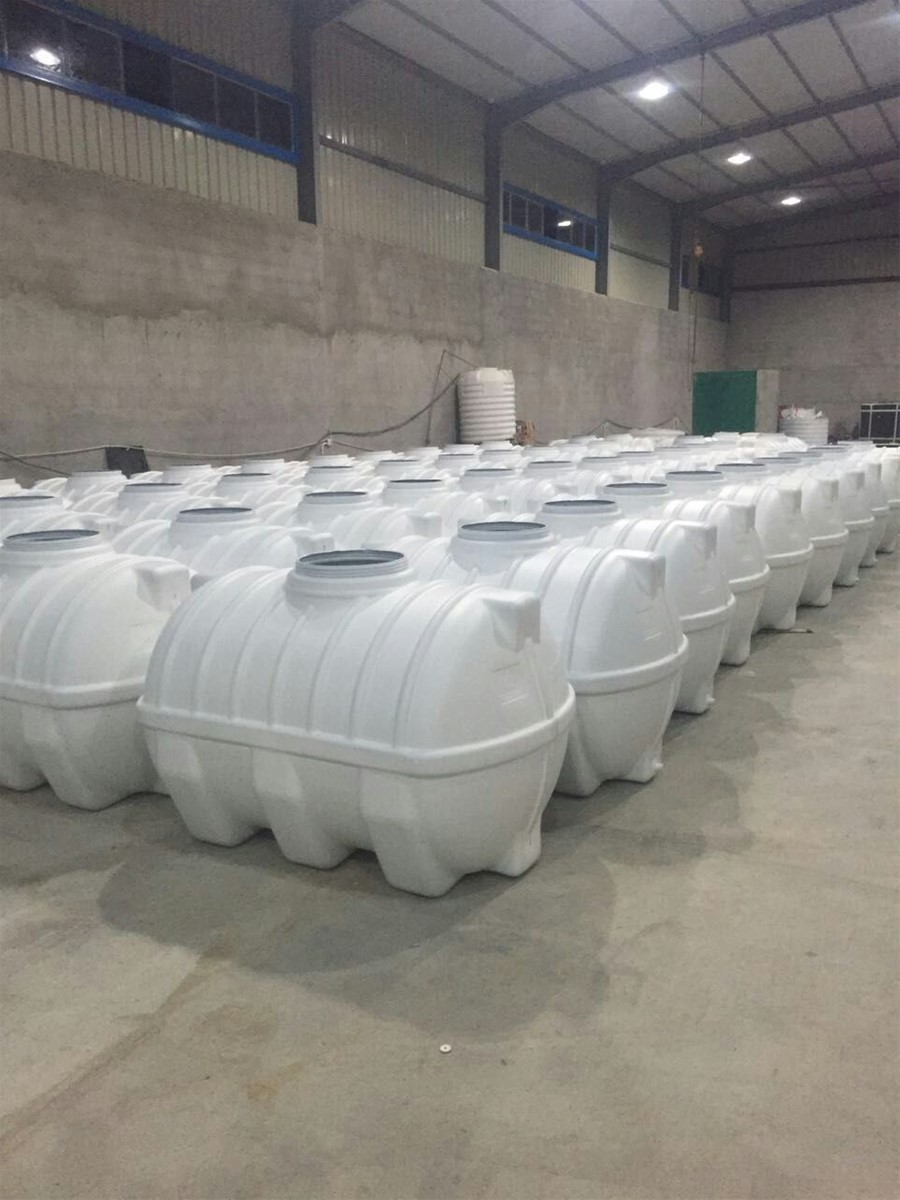

Application: water tank
Condition: New

Specifications

2000l 3 layers blow molding machine

1.Brief Introduction:

Qingdao Suntop Energy Equipment Co., Ltd., located in Qingdao City, is one of the top blow molding manufacturers in China. The whole company is focus on the large and super lager machine manufacturing, has formed a perfect team with experience designers, skilled workers, marketing experts and trained after-sale service staff. The company provides not only quality machines, but also a whole service from current marketing analysis, design choosing, customer-oriented machine revising, operation training, marketing strategy suggestion and after-sale support etc. The machine products cover from 200L up to 10,000L water tank, pallet, chemical drum, road barrel and so on.

2.Techincal parameters:

	Die Head 1. Unique design for the die head to supply even and color clear layers. 2. Super large accumulator suit for various products. 3. Die head can go up and down to change molds and adjust the flash according to different molds.
	MOOG and PLC 1. 100 adjustment points for parison to control the thickness accurately. 2. PLC with the remote control to provide a prompt and precise checking and maintenance. 3. Temperature control by PLC makes it easier for adjustment and checking
	Hydraulic Station and Servo Controller 1. Yuken (Japan original) provides a stable and strength locking for clamping. 2. Servo controller can save at least 30% energy for clamping motor

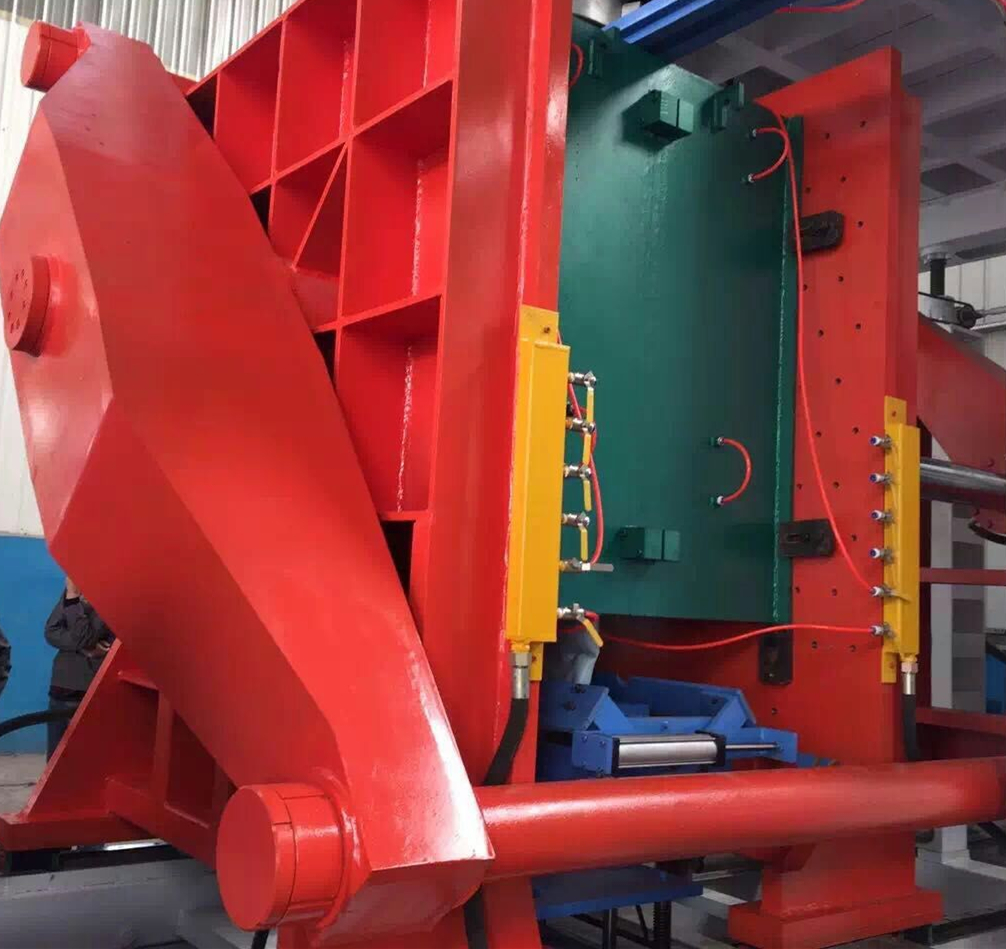

	Clamping System 1. The double rob clamp give 20% more center strength than normal. 2. Intensive clamping platen to increase the life time of the clamping system.

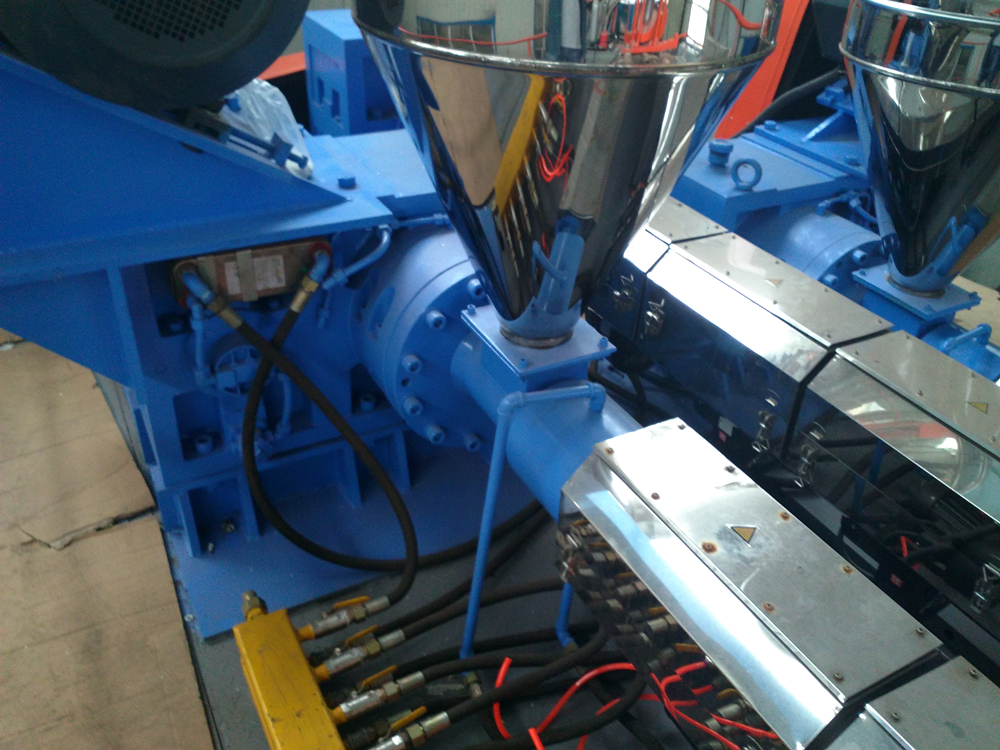

	Material Loading and Extruders 1. Vacuum loaders occupy less spare and provide more stable feeding for the extruders. 2. 25/1 L/D screw and the whole-covers for the heaters decrease the energy consumption of heating.

3.Performance features:

Blow molding technique is a newest technology for plastic products. Compare to the rotomolding, blow molding has the follow advantage:
1．Output can be 4 times than rotomolding.
2．Recycle material can be used which can save the material cost up to 35%.
3．There is almost no failure during producing.
4．Products are more strength and resilience.
5．Easy operating and less workers required.
