Spower Machinery Technology Co., Ltd.

China Manufacturer with main products: Scissor Lift, Man Lift, Cargo Lift, Aerial Lift Platform, Wheelchair Lift, Boom Lift, Hydraulic Scissor Lift, Electric Mobile Car Lift

Home >Products Catalog > Cargo lift > Mobile dock truck hydraulic container loading ramp

Mobile dock truck hydraulic container loading ramp

FOB Price:	4,680.00 - 8,000.00 USD/Set
Supply Ability:	1,000 Set(s) per Month
Shipping:	7 days
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

movable dock ramp

Price:

Min. Order:
hydraulic power unit for dock leveler

Price:180.00-200.00 USD/Pint

Min. Order:1 Pint
Boom Lift Foam Filled 445/50D 710 Tire

Price:100.00-500.00 USD/Piece

Min. Order:4 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Mobile dock truck hydraulic container loading ramp.1 sets can loaded into 40 feet container , one 40 feet high container can loaded 3 sets.

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 12 Months
Certification: ISO9001:2008 CE Certificate
Weight: 2400
Overall Dimensions: 11000*2000*1400mm
Table Size: 2000*10500mm
Max. Lifting Height: 1.8m
Min. Lifting Height: 1m
Rated Loading Capacity: 4-15ton
Power: Manual
Lift Drive / Actuation: Hydraulic
Lift Mechanism: Lift Chain
Model Number: SPRM
Brand Name: Spower
Product Name: container loading ramp
Demission: 11*2*1.4m
Control method: Hand pump control
Platform surface: Checkered Steel Plate
Certificates: CE ISO SGS
Material: manganese steel
Min height: 1m
Color: Customized
Application: loading ramp
Max height: 1.8m

Specifications

Mobile dock truck hydraulic container loading ramp
Product Application

This hydraulic container loading ramp are mainly used in warehouse without handling facilities and can be moved to the needed
place easily. The warehouse ramp is an auxiliary equipment of cargo handling used together with forklifts,and also its lifting height
is adjustable according to the height of car compartment.With the assistance of container loading ramp,forklift can directly drive
into the truck compartment to carry out batch handling and greatly improving the efficiency and safety of loading & unloading
cargo.
Mobile dock truck hydraulic container loading ramp

Main Features of the loading ramp

1.Without installation and easy operation.
2.Adopting high strength steel,structure is solid and durable.
3.Easy and convenient maintenance for the loading ramp.
4.Improving working efficiency, reducing the manpower cost.

Main Models:

Model	Load(T)	Working height(m)	Dimensions(m)	Self weight(kg)	Driving force
SPRM-5	5	1 ~ 1.8	1121.4	2250	Manual or electric drive
SPRM-6	6	1 ~ 1.8	1121.4	2400
SPRM-8	8	1 ~ 1.8	1121.4	2550
SPRM-10	10	1 ~ 1.8	1121.4	2850
SPRM-12	12	1 ~ 1.8	1121.4	3000
SPRM-15	15	1 ~ 1.8	1121.4	3800

Detail Images:

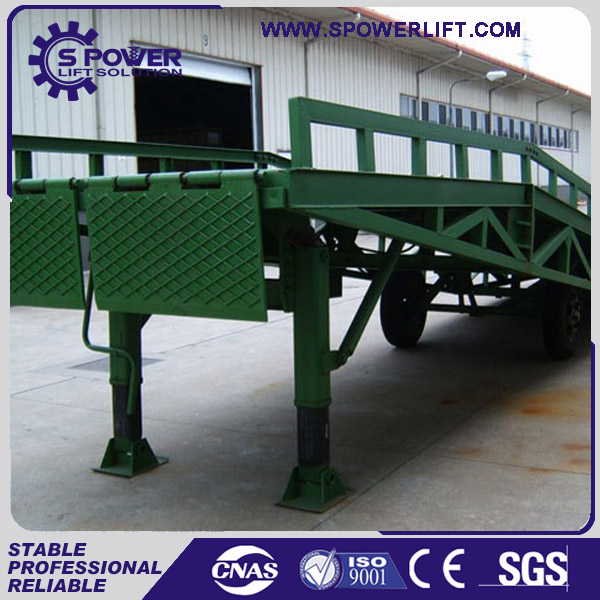

1.Safety design: The dock loading ramp used has two iron blocks to stabilize the wheels in case of moving when working.
2.Both forklift suspensive board and the platform are checkered plate, which makes loading and unloading job smoothly.
Triangle structure of guardrail is more stable,uniform stress.
3.For manual power, one person can operate to lift up the ramp easily by hydraulic pump handle.
4.The chain(linked to the container) can maintain the ramp stable when working. The special design of Junction make it easier to
be put on the side of container.
Mobile dock truck hydraulic container loading ramp

After service: 1. All the loading dock ramp used will be full tested before shipment.
2. The total machine guarantee is 12 moths.
3. 24 Hours technical support, email, telephone or video online.
4. User-friendly english manual for machine using and maintaining.
5. Several sets wearing parts will be free for you.
Mobile dock truck hydraulic container loading ramp

After service:

1. Delivery Time
The loading dock used will be finished within 7 days and with best quality.

2. Payment Terms
T/T, L/C, Western Union, escrow, paypal, other kinds, pls contact with us.
3. MOQ

MOQ is 1 set.
4. Package
One 40ft container can load 2 units, we can aslo remove the wheels to load 3 units, and it is very easy to install.
Mobile dock truck hydraulic container loading ramp
