Jiangxi Ikv Robot Co., Ltd.
China Manufacturer with main products: Industrial Robot Arm, Welding Robot, Painting Robot, Palletizer Robot, AGV Vehicle, Forklift AGV, Laser Guided Vehicle, Forklift LGV |
IKV High Efficiency Remote Control Agv Vehicle for Material Transport
| FOB Price: | 12,000.00 - 20,000.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set(s) per Month |
| Shipping: | 15-20 days after payment |
| Payment Terms: | L/C, D/A, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangxi in China |
| Packaging Details: | packed in wooden case |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Brand Name: IKV
- Communication: Wireless LAN
- Guide Type: Laser
- Power System: Electrical
- Load Weight: Max. 10 tons
- Max. Size: 4100 mm *1450 mm
- Shelf Lifting Height: 130 mm
- Locating Precision: 10 mm
- Nonstop Working Time: More than 8 hours
- Charging: Automatic
Specifications
Factory best selling magnetic agv vehicle price for warehouse

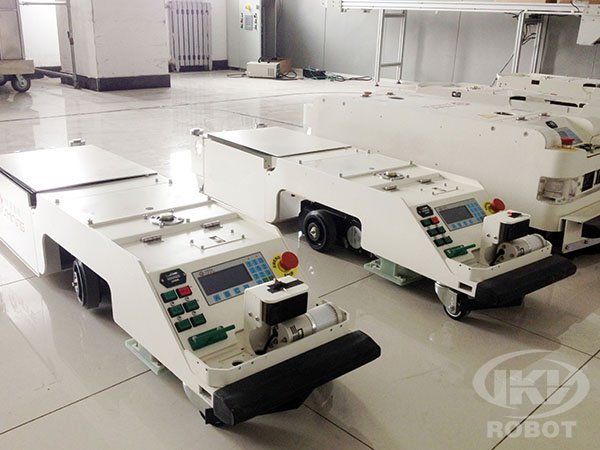

IKV agv vehicle Introduction
IKV agv vehicle is a kind of mobile robot which can follow magnetic tape on the floor by using vision or magnet for navigation. It is mostly applied in the filed of warehouse storage, food or beverage, plastic, pharmaceutical, rubber industry, etc. It is used to convey material inside the warehouse or workshop.
Company Information
Nanchang IKV Robot Co., Ltd is a high and new technology enterprise, which integrates product research, manufacturing and distribution by virtue of Germany advanced technique. It specializes in the research and production of industrial robot, automatic production line, industrial control system project, etc. It supplies automatic solution in the filed of automobile, food, beverage, pharmaceuticals, chemical, fertilizer, steel, etc. All in all, it assists the clients to build smart factory and easily master Industry 4.0.
Working Principle of IKV agv vehicle
the Navigation is completed by means of the reflective tape installed on fixed place or device. There is a laser navigation scanner on the rotating turret. The safety sensor is used to transmit and receive laser. The angle or distance to any reflector which is in line of sight or in range is automatically calculated. this parameter is compared with the map of the reflector layout stored in AGV' memory. It allows the navigation system to triangulate the AGV' current position, which is compared with the programmed path shown on the reflector layout map. the frequent steering is used to keep AGV on the programmed track and navigate to the desired target.
Main Structural Diagram of IKV agv vehicle
the laser guide scanned, mounted on the top of the car, triangulates its position using mirrors placed at height around the work area. It drives along a specific pathway and perform designated functions governed by our control system.
Feature of IKV agv vehicle
Operation Environment | |
Temperature (℃) |
0~40 |
Humidity (%) |
20~80 |
Environment |
Common Indoor Environment without Dust, Oil, Dew Formation, Rain or Coal Gas |
Allowable Carrying Capacity (Total Weight) (kg) |
300 |
Note: the carrying weight varies based on Vehicle Body, speed, road condition. |
Maximum tractive force<N> |
250 |
Note: the carrying weight varies based on Vehicle Body, speed, road condition. |
Maximum Speed <m/min> |
45 |
Note: 62m/min |
Toad GRadient <%> |
2 (continuous within 5m) 3 (continuous within 5m) |
Note: carrying weight more than 70% Note: carrying weight less than 70% |
Allowable Step (mm) |
6 |
Note: moving at the speed of 20m/min |
Allowable Grove Width (mm) |
20 |
|
TUrning Radius (m) |
0.5 |
It is relevant to AGV wheel base. |
Stop Precision (mm) |
-10~+10 |
Brake is needed. the braking length varies according to the conditions. |
Technical Parameter for IKV agv vehicle
| ITEM | MODEL | Carrying Capacity |
| AGV | IKV-AGV05 | 500 KG |
| IKV-AGV010 | 1 TON | |
| IKV-AGV020 | 2 TONS | |
| IKV-AGV030 | 3 TONS | |
| IKV-AGV050 | 5 TONS | |
| IKV-AGV100 | 10 TONS |
Moving Way |
Straight Line, Left /Right Bifurcation or Arc Line |
Moving Directions |
Unidirectional or Bidirectional |
Means of Communication |
Zigbee or WiFi |
Driving Mode |
Dual-motor Differential Operation |
Carrying Capacity |
500 KG ~10 Tons |
Carrying Capacity (time) |
8-10 Hours |
Navigation Accuracy |
±10mm |
Manner of working |
Manual operation if there is no magnetic tape. Automatic running provided that there is magnetic tape. No magnetic tape tracking under automatic operation is available. Relative address automatic control. |
Climbing Capacity |
for more than 70% of carrying capacity, the maximum gradient is 2% ( continuous within 5 meters).
for less than 70% of carrying capacity, the maximum gradient is 3% ( continuous within 5 meters). |
Stop Precision |
±10MM ( under brake. the braking length vary based on different conditions.) |
Charge Methods |
Manual |
Safety Induction Scope |
Laser: 180° Infrared: 120° |
Alarm Form |
Alarm Form |
Storage Battery |
Lead-acid Traction: 24V70AH Lithium Iron Phosphate: 24V40AH-60AH |
Safety protection |
Long Distance: Laser Obstacle Sensor or Infrared Obstacle Senor Short Distance: Rubber Anti-collision Bumper Bar |
Designed Life span |
10 years |
the Benefits of Using IKV agv vehicle
1. Reduce labor cost and remove overtime or turnover cost;
2. Guarantee the safety of factory device;
3. Reduce loss of product or shipment;
4. the light-out configuration save energy consumption
5. Adjust to all kinds of stand, pallet, or manufacturing operations.
Scope of Application for IKV agv vehicle
IKV automated guided vehicle product can fully meet the client'S material handling or material moving requirement. It is mainly applied in the filed of Chemical, Automotive, Paper or Print Industry, Food and Beverage, Hospital or Healthcare Industry, Warehousing, Pharmaceutical Industry, etc.
IKV agv vehicle Applied in Automotive Industry
IKV automated guided vehicle application in automotive industry mainly covers raw material automated transportation, automated work in movement during the production and ready-made cargo delivery. Thus the whole manufacturing environment can achieve forklift-free style.
IKV agv vehicle Applied in Chemical Industry
IKV automated guided vehicle can deal with all kind of difficult material handling cases. It can conduct the repetitive tasks and maximize the workshop safety and product consistency.
IKV agv vehicle Applied in Paper or Printing Industry
IKV automated guided vehicle will conduct the raw material handling and moving takes. It can even move the finished cargo and deliver the waster material to disposal area.
IKV agv vehicle Applied in Food and Beverage
IKV automated guided vehicle can load standard or over the road trailers carrying ready-made cargo, unload trailers to provide raw material to the plant.
IKV agv vehicle Applied in Hospital and Healthcare Industry
Automated guided vehicle can move trash, soiled food tray, surgical case cart, medical waste, etc.
IKV agv vehicle Applied in Warehousing
Automated guided vehicle logically moves load inside the warehouse and prepare them for shipping/loading or receiving. It can also move the load from the induction conveyor to logical storage station. this function is achieved by means of our own warehouse software IKV industry 4.0 card.
IKV agv vehicle Applied in Pharmaceutical Industry
Automated guided vehicle Supports process validation and current good manufacturing practice, it can track all the movement based on its reflector layout map. Therefore, laser guided vehicle proves to be the best method for moving material in the pharmaceutical plant.
Our Services
1. Installation Services: In the period of installation and debugging, we shall offer training about effective operation and maintenance.
2. Technical Services: We can assist our clients to solve all kind of technical problems with our capable technical team, and we own adequate experience for production line transformation project.
3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.
IKV Technical Team
Nanchang IKV Robot Co., Ltd has professional and experienced technical team. We self-develop high precision loss in weight feeder, heavy load LGV, AGV, IKV Industry 4.0 communication card, etc.
FAQ
Q: What is your MOQ;
A: at present, our MOQ is 1 set;
Q: how long is the delivery time?
A: in general, the delivery time is 12 weeks.
Q: What is your guarantee term?
A: the warranty period for our products is one year along with lift time technical support.
Q: Are you manufacturer or trading company?
A: We are manufacturer for automation robot in Nanchang city, China.
Q: how about your after-sale service?
A: We can send our technical staff for onsite installation or debugging. Moreover, we can
Also provide technical support via online communication.
Q: What is your payment term?
A: the payment method is 50% prepayment, 50% balance before cargo delivery if the client
does not need onsite installation or debugging;the payment method is 50% prepayment, 40% balance before cargo delivery, 10% upon Verification in the client's factory if the client needs onsite installation or debugging.
