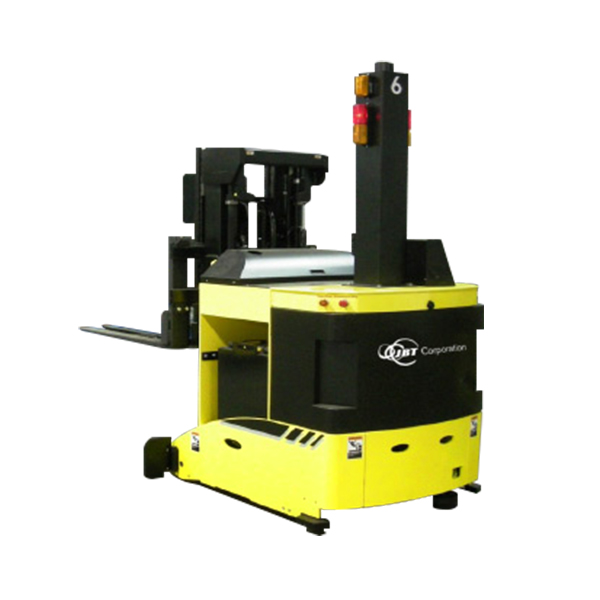

China Fully Automatic Magnetic Lifter Industrial Forklift AGV For Material Handling
| FOB Price: | 12,000.00 - 20,000.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set(s) per Month |
| Shipping: | 15-20 days after payment |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangxi in China |
| Packaging Details: | Packed in wooden case |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: ISO,CE
- Type: Manual Pallet Truck
- Brand Name: IKV
- Condition: New
- Item: Industrial Forklift AGV
- Communication: Wireless LAN
- Guide Type: Laser
- Power System: Electrical
- Load Weight: Max. 10 tons
- Max. Size: 4100 mm *1450 mm
- Shelf Lifting Height: 130 mm
- Locating Precision: 10 mm
- Nonstop Working Time: More than 8 hours
- Charging: Automatic
Specifications
IKV Fully Automatic Magnetic Lifter Industrial Forklift AGV with 10Ton
IKV Industrial Forklift AGV Introduction
IKV Industrial Forklift AGV is a kind of mobile robot which can follow magnetic tape on the floor by using vision or magnet for navigation. It is mostly applied in the filed of warehouse storage, food or beverage, plastic, pharmaceutical, rubber industry, etc. It is used to convey material inside the warehouse or workshop.
Product Description
Working Principle of IKV Industrial Forklift AGV
the Navigation is completed by means of the reflective tape installed on fixed place or device. There is a laser navigation scanner on the rotating turret. The safety sensor is used to transmit and receive laser. The angle or distance to any reflector which is in line of sight or in range is automatically calculated. this parameter is compared with the map of the reflector layout stored in AGV' memory. It allows the navigation system to triangulate the AGV' current position, which is compared with the programmed path shown on the reflector layout map. the frequent steering is used to keep AGV on the programmed track and navigate to the desired target.
Main Structural Diagram of IKV Industrial Forklift AGV
the laser guide scanned, mounted on the top of the car, triangulates its position using mirrors placed at height around the work area. It drives along a specific pathway and perform designated functions governed by our control system.
Technical Parameter for IKV Industrial Forklift AGV
| ITEM | MODEL | Carrying Capacity |
| AGV | IKV-AGV05 | 500 KG |
| IKV-AGV010 | 1 TON | |
| IKV-AGV020 | 2 TONS | |
| IKV-AGV030 | 3 TONS | |
| IKV-AGV050 | 5 TONS | |
| IKV-AGV100 | 10 TONS |
Moving Way |
Straight Line, Left /Right Bifurcation or Arc Line |
Moving Directions |
Unidirectional or Bidirectional |
Means of Communication |
Zigbee or WiFi |
Driving Mode |
Dual-motor Differential Operation |
Carrying Capacity |
500 KG ~10 Tons |
Carrying Capacity (time) |
8-10 Hours |
Navigation Accuracy |
±10mm |
Manner of working |
Manual operation if there is no magnetic tape. Automatic running provided that there is magnetic tape. No magnetic tape tracking under automatic operation is available. Relative address automatic control. |
Climbing Capacity |
for more than 70% of carrying capacity, the maximum gradient is 2% ( continuous within 5 meters).
for less than 70% of carrying capacity, the maximum gradient is 3% ( continuous within 5 meters). |
Stop Precision |
±10MM ( under brake. the braking length vary based on different conditions.) |
Charge Methods |
Manual |
Safety Induction Scope |
Laser: 180° Infrared: 120° |
Alarm Form |
Alarm Form |
Storage Battery |
Lead-acid Traction: 24V70AH Lithium Iron Phosphate: 24V40AH-60AH |
Safety protection |
Long Distance: Laser Obstacle Sensor or Infrared Obstacle Senor Short Distance: Rubber Anti-collision Bumper Bar |
Designed Life span |
10 years |
the Benefits of Using IKV Industrial Forklift AGV
1. Reduce labor cost and remove overtime or turnover cost;
2. Guarantee the safety of factory device;
3. Reduce loss of product or shipment;
4. the light-out configuration save energy consumption
5. Adjust to all kinds of stand, pallet, or manufacturing operations.
Scope of Application for IKV Industrial Forklift AGV
IKV automated guided vehicle product can fully meet the client'S material handling or material moving requirement. It is mainly applied in the filed of Chemical, Automotive, Paper or Print Industry, Food and Beverage, Hospital or Healthcare Industry, Warehousing, Pharmaceutical Industry, etc.
IKV Industrial Forklift AGV Applied in Automotive Industry
IKV automated guided vehicle application in automotive industry mainly covers raw material automated transportation, automated work in movement during the production and ready-made cargo delivery. Thus the whole manufacturing environment can achieve forklift-free style.
IKV Industrial Forklift AGV Applied in Chemical Industry
IKV automated guided vehicle can deal with all kind of difficult material handling cases. It can conduct the repetitive tasks and maximize the workshop safety and product consistency.
IKV Industrial Forklift AGV Applied in Paper or Printing Industry
IKV automated guided vehicle will conduct the raw material handling and moving takes. It can even move the finished cargo and deliver the waster material to disposal area.
IKV Industrial Forklift AGV Applied in Food and Beverage
IKV automated guided vehicle can load standard or over the road trailers carrying ready-made cargo, unload trailers to provide raw material to the plant.
IKV Industrial Forklift AGV Applied in Hospital and Healthcare Industry
Automated guided vehicle can move trash, soiled food tray, surgical case cart, medical waste, etc.
IKV Industrial Forklift AGV Applied in Warehousing
Automated guided vehicle logically moves load inside the warehouse and prepare them for shipping/loading or receiving. It can also move the load from the induction conveyor to logical storage station. this function is achieved by means of our own warehouse software IKV industry 4.0 card.
IKV Industrial Forklift AGV Applied in Pharmaceutical Industry
Automated guided vehicle Supports process validation and current good manufacturing practice, it can track all the movement based on its reflector layout map. Therefore, laser guided vehicle proves to be the best method for moving material in the pharmaceutical plant.
