1300c Tube Type Electric Muffle Furnace for Heat Treatment

Supply Ability: 50 Set(s) per Month
Shipping: By Sea
Payment Terms: L/C, T/T, Western Union
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Henan in China
Packaging Details: from the inside to outer packaging, is foam sponge, carton, wooden case.

Quick Details

  • Classification: Laboratory Heating Equipments
  • Brand Name: Sante
  • Classification: Resistance furnace
  • name: Tube furnace
  • Working temperature: 1150c
  • heating rate: 1-30c/min
  • Model Number: STG-60-12

Specifications

Product description:
Sante muffle furnaces are used to process the sintering of ceramics and cermet material, heat treatment of some monocrystal, refractory material shrinkage reheated under high temperature, and used for small batch production.
Main features:
1. Furnace chamber is made of  high-purity Al2O3 ceramic fiber. Low heat capacity insulation for high energry efficiency.
2. High rate of heating up: 0-30c/min.
3. Silicon carbide heating elements with stable properties are able to withstand stresses of intermittent operation, and provide long life.
4. Microcomputer PID control enables high precision and constant temperature requirement. with function of temperature compensation and correction.

5. Temperature controller is programmable with 2 groups/16 steps, and available to set temperature curve.
6. Electric leakage protection for safety
7. over-temperature alarm: with sound&light alarm when temperature exceeds the set limit.
Specifications:

Max. Temperature 1200C
Continous working max. Temperature  1150C
Heating rate 0-30 C/min
Tube material Quartz tube
Tube size Dia 60x1000 Length mm
Working size 300 mm
Temperature control 16 steps programmable and PID automatic control

Voltage
AC 208-240V Single Phase, 50/60 Hz
Power 3 KW
Heating element Resistance wire
Thermocouple S-type
Furnace atmosphere Nitrogen, Argon and other inert gases
Vacuum value -0.098MPa
Standard accessories
High temperature gloves 1 pair,  crucible tong 1pc, power line 1 pc
Warranty  One year limited warranty (Consumable parts such as processing tubes and heating elements are not included.)
Options:
1. Optional large screen paperless recorder, to achieve real-time temperature curve recorded with a memory card of experimental data analysis and printing.
2. Optional installation of air intake, can feed into air and inert gas. and an exhaust chimney connecting stainless steel bellows, so that high temperature toxic gas emissions to a specified location.

Reference photos:

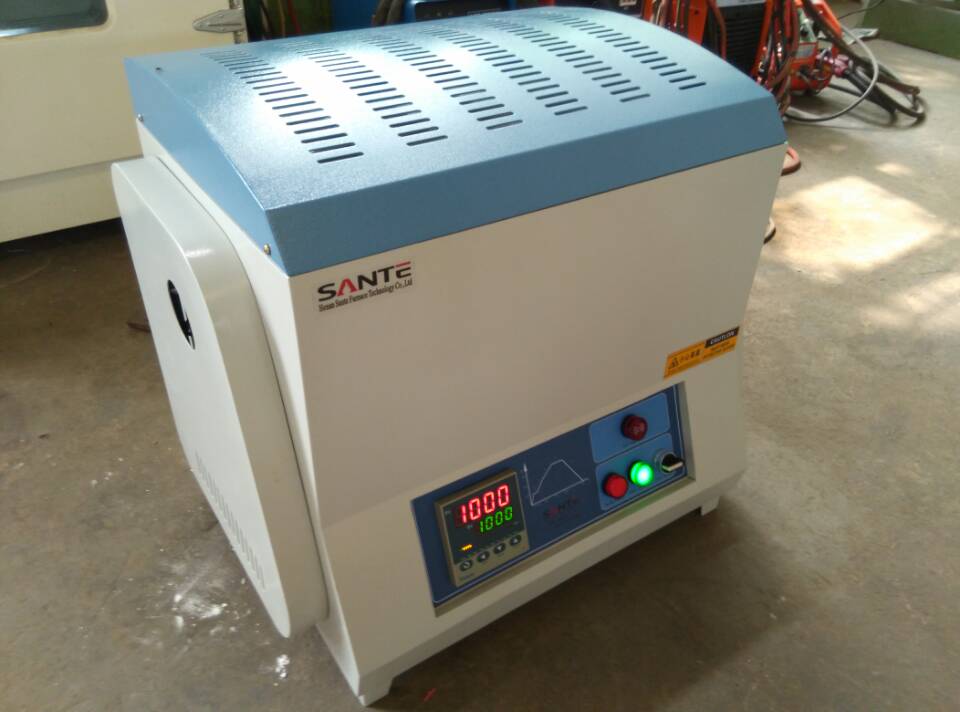

1300c Tube Type Electric Muffle Furnace for Heat Treatment
1300c tube type electric muffle furnace for heat treatment
Company show:
1300c tube type electric muffle furnace for heat treatment 1300c tube type electric muffle furnace for heat treatment 1300c tube type electric muffle furnace for heat treatment
about us:
1. We are a leading and professional enterprise that specializes in the manufacture of high temperature muffle furnaces
2. Our products have a number of technical patents and have passed the ISO9001 quality system certification and CE certificate.
3. Our products covers 1000/1200/1300/1400/1600/1700oC muffle furnace, tube furnace, vacuum box furnace, dual(multi) zone tube furnace, industrial furnace, elevator/bottom loading muffle furnace, car-type bottom furnace, etc.
4. by taking strict management and first-class technology, Sante Furnace has provided lots of muffle furnaces for colleges, research institutes and enterprises, involving fields like petrochemical, petroleum, smelting, casting, machinery manufacturing, military industry, and other industries in China and overseas.
