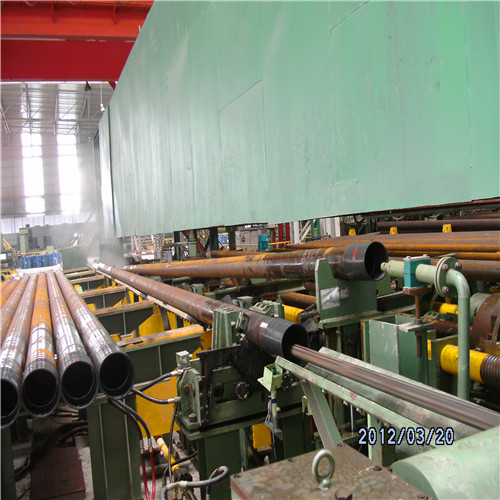

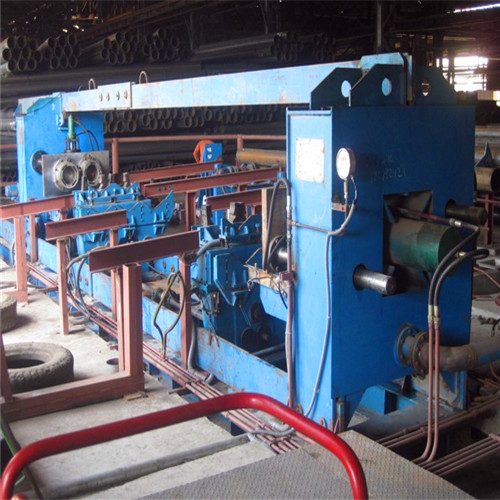

Steel pipe pressure hydraulic tester SI-PT-000

FOB Price:	300,000.00 - 500,000.00 USD/Set
Supply Ability:	10 Set(s) per Year
Shipping:	3months by container from Shanghai
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Integrated level transmitter HPT-33

Price:

Min. Order:1 Piece
Burst Strength Tester

Price:

Min. Order:1 Set
smart steam vortex flow meter with temperature ...

Price:350.00-2,000.00 USD/Set

Min. Order:1 Set

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	Suitble for sea shipping

Quick Details

I Technical solution:

1, Equipment model: PT140/60-245.

2, Quantity of equipment: one set (including three working positions i.e. Alignment and flush position, Pressure testing position, Drain position).

3, Technical parameters

3.1, Engineering condition

S/N	Items	Unit
1	External diameter	mm	60.3—244.5(2-3/8" ~9-5/8" )
2	Tolerance of external diameter		±1.5%D
3	Wall thickness	mm
4	Length of pipe	m	8.8-13 TUBING: 29 - 33 ft , CASING: 38 - 42ft
5	Length tolerance of one lot	mm	±100
6	End of pipe		Two plain ends or one end with coupling and the other end threaded
7	Pipe Straightness	mm/m	Body ≤2mm/m; Pipe end ≤3.00 mm(end length:1.0 m); total length≤20 mm
8	External ovality	mm	≤2%( External diameter)
9	Pipe temperature	℃	0-40
10
11	Industrial power		440V±10%, 60HZ + 2%
12	Compressed air		0.4 – 0.6 MPa
13	Cooling water for hydraulic system		Pressure 0.2-0.4MPa, temperature 3-35℃, PH 7.5-8.0

3.2 Technical parameters of the hydro-tester

S/N	Items	Unit	APT140/60-245 hydro-tester
1	Test pressure	MPa	10-140(20000PSI)
2	Hold time	S	5～300, adjustable
3	Test Pressure Accuracy		Within 0-2%
4	Sealing mode		Big clearance radial sealing
5	Test dead length	mm	≤80 one end
6	Test media		Water emulsion
7	Applicable pipe length	m	8.8-13
8	Stroke of purge head	mm	4200
9	Stroke of fill head	mm	1200
10	Product tooling changeover time	min	≦90
11	Operation mode		manual, semi-automatic and automatic
	Pressure test speed (pressure holding time 5 s)	Pcs/h	Φ60.3mm×11±0.1m×69 MPa, Max 80 pcs/h Φ178mm×11±0.1m×69 MPa, Max 60 pcs/h Φ245mm×11±0.1m×69 MPa, Max 50 pcs/h
13	Product standard		API
