Steel Pipe Beveling & End Facing Machine SI-BF-000

FOB Price:	80,000.00 - 500,000.00 USD/Set
Supply Ability:	10 Set(s) per Year
Shipping:	60days by container from Shanghai
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	Suitble for sea shipping

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Model Number: SI-BF-000
Brand Name: serphitech

Specifications

1. Technical specifications:

OD of pipe: φ88.9-φ219 mm

Thickness: 1.5~6 mm

Material of Steel tube: σs≤345MPa

Length: 6m

Main motor power: 22KW

Kind of Knife: Clamping

Angle of beveled edges: 30°～35°

Cutting feed: Servo-motor

Feed and kick out: Pick and kick out unit

(Hydraulic stepping motor)

Clapming mode: up-down,arch

the set mode: stagger head

Frequency: 100-120bar/hour

Operating mode: Manul,semi-automatic,automatic

Power: Voltage:380V Frequency:50HZ

Installed Capacity: ~65KW

2. Introduction of flow:

the pipes produced from the line are aligned on the stage (or lifted by the Crane ).Stepping hydraulic motor drives walking beam and sends the pipes to the Alignment working station.with the wakling beam retating one round,the pipe has Been sent ahead for one working position. Hear the alignment device includes Active rollers and passive rollers.with walking beam rotating for another round ,the pipe has been sent to working position.and the clamping device clamps the Pipe.The device is drived by hydraulic cylinder.The pipe is being facing and Bevelling. The facing and bevelling is finished by main spindle head .Main spindle includes foundation,transmitting Part,feeding parts,cutter head and so on.Speed changing of transmitting parts Is controlled by AC motor.The quick Feeding,feeding and quick feeding back action is dirved by servo-motor.The Cutter head includes facing knife,bevelling knife.after facing and bevelling, Opening the clame then kick off the pipe,another pipe is sent to the stage.

3. Equipment list:

NO	Name	Qty	Remark
1	Left head	1set
2	Right head	1set
3	Active rollers	6sets
4	Passive rollers	4sets
5	Stepping Driving Device	1set
6	Electical System	1set
7	Hydraulic System	1set	Huade Company in Beijing
8	Rails Before and after themachine; charging basket	1set	Buyer can also make them by themself

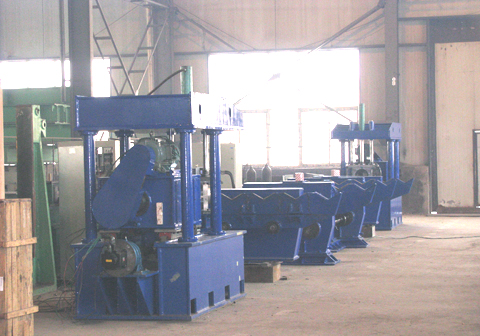

Steel pipe beveling and end facing machine SIBF000
