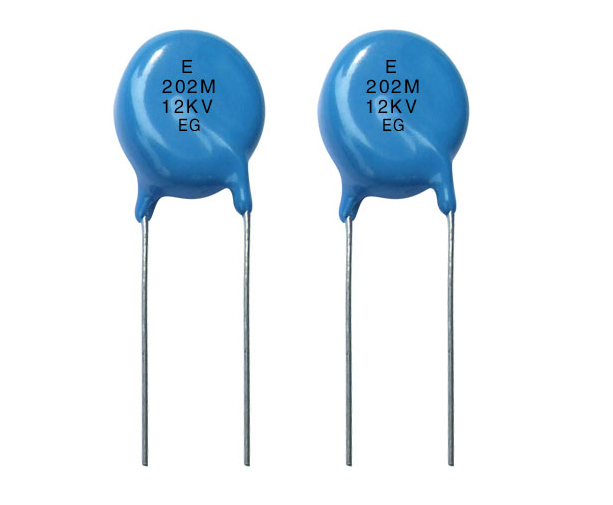

High Voltage Ceramic Capacitor (4~15KV)
| FOB Price: | 1.00 - 2.00 USD/Piece |
|---|---|
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Package Type: Through Hole
- Type: Ceramic Capacitor
Specifications
Ceramic capacitor ---- Type DCG super high voltage disc ceramic capacitors
1. FEATURES & APPLICATIONS
Type DCG super high voltage disc ceramic capacitors have high rated voltage, often used in filter circuit for high voltage supply and in high voltage circuit for TV set and monitor.
2. SPECIFICATIONS
Capacitance and dissipation factor/quality factor testing at:
25 centigrade, 1Vrms, 1MHz (Class 1)
1kHz (Class 2)
Operating temperature -25 ~ +125o C
Rated voltage 4 ~ 15KVDC
Dissipation factor Y5P, Y5U, Y5V: Tgδ ≤ 2.0%
BN: Tgδ ≤ 0.5%
Y5R: Tgδ ≤ 0.2%
SL, YL: Cr< 30pF, Q≥ 400+20C; Cr≥ 30pF, Q≤ 1000
Insulation resistance(IR) IR≥ 10000MΩ (500VDC)
Voltage proof 1.5Ur
Temperature characteristic SL, YL, Y5P, Y5U, Y5V, BN, Y5R
1. FEATURES & APPLICATIONS
Type DCG super high voltage disc ceramic capacitors have high rated voltage, often used in filter circuit for high voltage supply and in high voltage circuit for TV set and monitor.
2. SPECIFICATIONS
Capacitance and dissipation factor/quality factor testing at:
25 centigrade, 1Vrms, 1MHz (Class 1)
1kHz (Class 2)
Operating temperature -25 ~ +125o C
Rated voltage 4 ~ 15KVDC
Dissipation factor Y5P, Y5U, Y5V: Tgδ ≤ 2.0%
BN: Tgδ ≤ 0.5%
Y5R: Tgδ ≤ 0.2%
SL, YL: Cr< 30pF, Q≥ 400+20C; Cr≥ 30pF, Q≤ 1000
Insulation resistance(IR) IR≥ 10000MΩ (500VDC)
Voltage proof 1.5Ur
Temperature characteristic SL, YL, Y5P, Y5U, Y5V, BN, Y5R
|
capacitance and dissipation factor/quality factor testing at |
25o C, 1Vrms, 1MHz (Class I) 1KHz (Class II) |
| operating temperature | -25o C~+125o C |
| rated voltage | 4~15KVDC |
| dissipation factor |
Y5P, Y5U, Y5V: tgδ ≤ 2.5% BN: tgδ ≤ 0.5% Y5R: tgδ ≤ 0.2% SL, YL: Cr< 30pF, Q≥ 400+20C; Cr≥ 30pF, Q≤ 1000. |
| insulation resistance(IR) | IR≥ 10000MΩ (500VDC) |
| voltage proof | 1.5Ur |
| temperature characteristic | SL, YL, Y5P, Y5U, Y5V, BN, Y5R |
