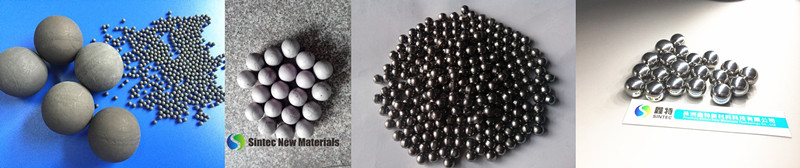

Sintec Silicon Nitride Grinding Media for Ball Mill

FOB Price:	50.00 - 100.00 USD/Kilogram
Supply Ability:	500 Ton(s) per Year
Shipping:	Usually in 7 working days
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Honeycomb Ceramic/ Honeycomb Ceramics/Ceramic H...

Price:1.00-5.00 USD/Piece

Min. Order:1 Piece
Alumina Ceramic Pipe

Price:10.00-160.00 USD/Piece

Min. Order:100 Pieces
CERAMIC OWL GARDEN DECOR

Price:

Min. Order:
Ceramic

Price:0.20-2.00 USD/Piece

Min. Order:1000 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hunan in China
Packaging Details:	sealed bag, vaccum, carton filled with foam

Quick Details

Brand Name: ZZSINTEC
Model Number: XTS-N
Material: Zirconia Ceramic
Application: Industrial Ceramic
Type: Ceramic Balls
Color: Dark Grey
Density: 3.2 g/cm3
Hardness(HV): 1500-1800
Bending strength(Mpa): 700
Maxium use temperature: 1500C

Specifications

Silicon Nitride (Si3N4) Ceramic Balls are formed from a new material suitable for applications where high loads, high speeds and extreme temeratures are factors. Long life and the need for minimal lubrication make this material appropriate for extreme applications.

Silicon Nitirde is non-porous, non-magentic, non corrosive, lighter than steel and, in ball form, is harder than steel. Because ceramic balls are non-porous they are virtually frictionless and are capable of spinning faster than steel balls.

Characteristics:
1) Density 3.25 g/cm3 (59% lower than steel)
2) Excellent wearability
3) Max working temperature up to +800°C
4) Low coefficient of thermal expansion
5) Very high hardness Hv 1400
6) Nonmagnetic
7) Electrical isolating
8) Self-lubricating
9) Excellenct corrosion resistance

10) Applicable for high speed bearings

Technical Parameters

Sicilion nitride 90.3--90.7%
Alumina 4.9--5.2%
Yttria 3.5--3.6%
Wolfram carbide <1%
Iron oxide <0.1%
Calcium oxide <0.1%
Magnesium oxide <0.1%
Sodium oxide trace
Potassium trace
Bulk density 3.18--3.24g/cm3
Hardness 1350--1450 hv10

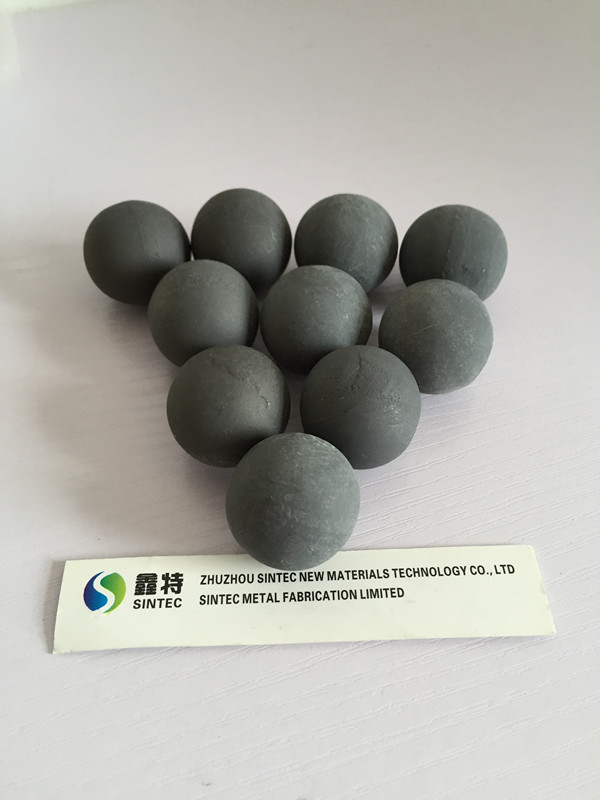

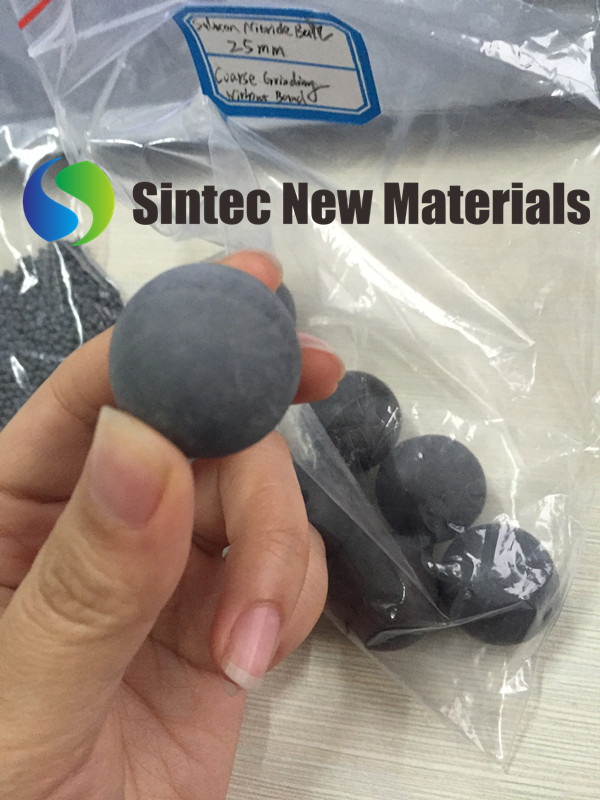

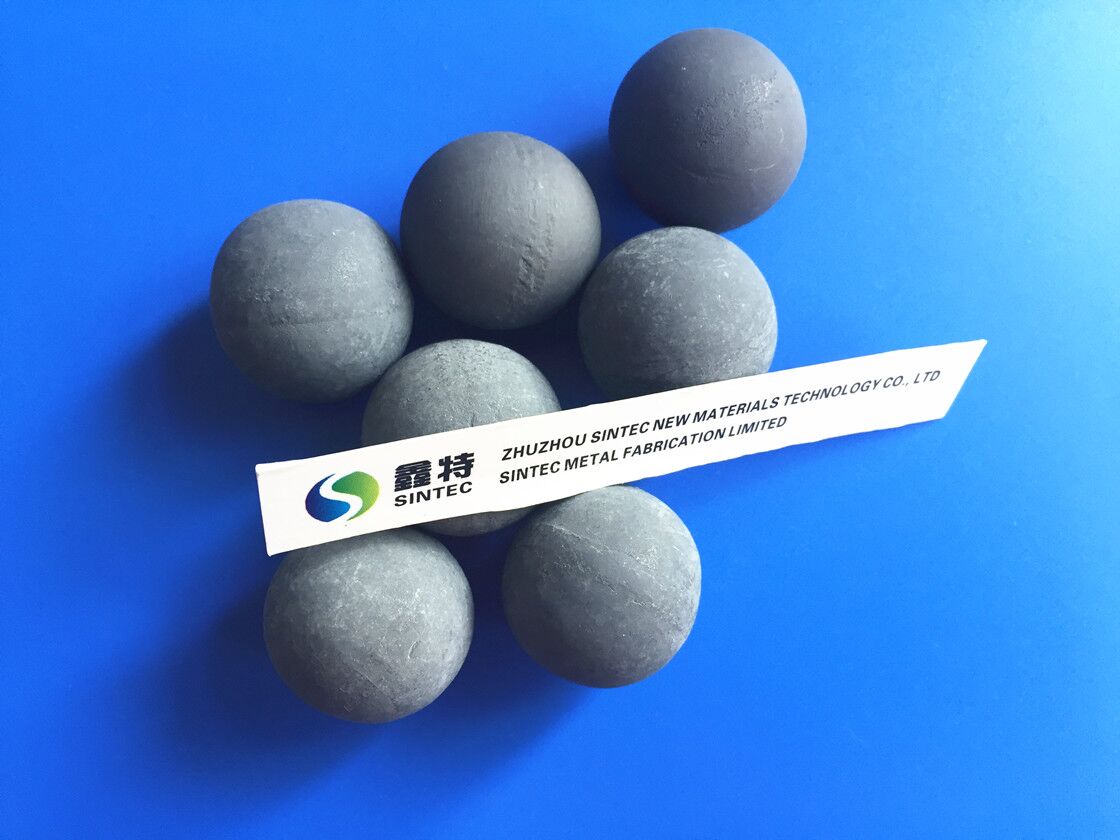

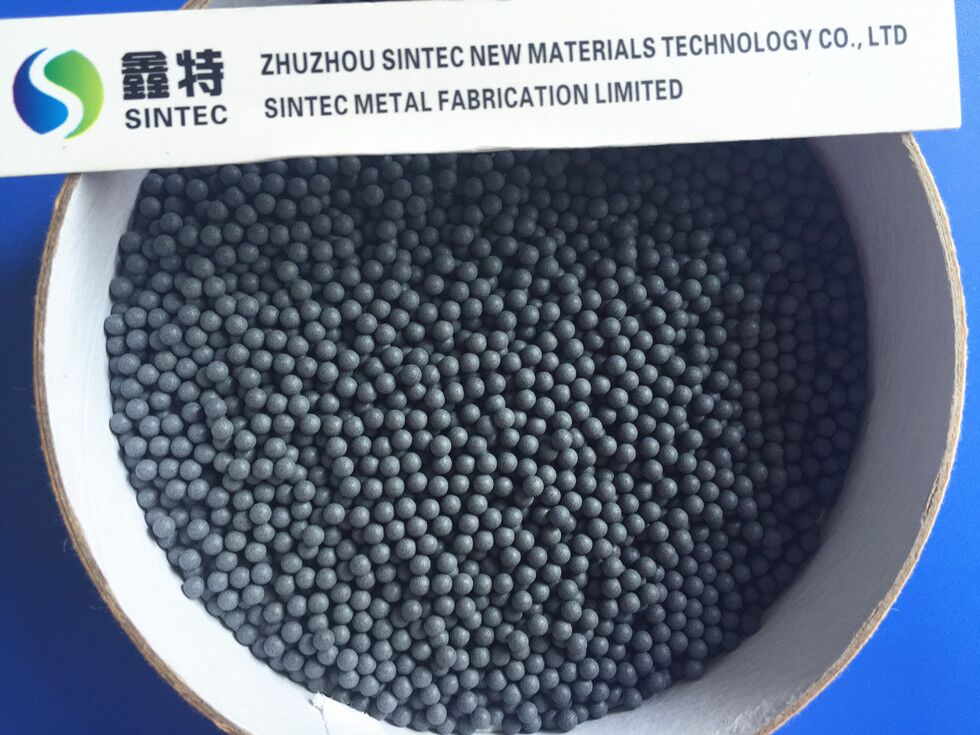

Sintec Silicon Nitride grinding media for ball mill

Maufacturing facility

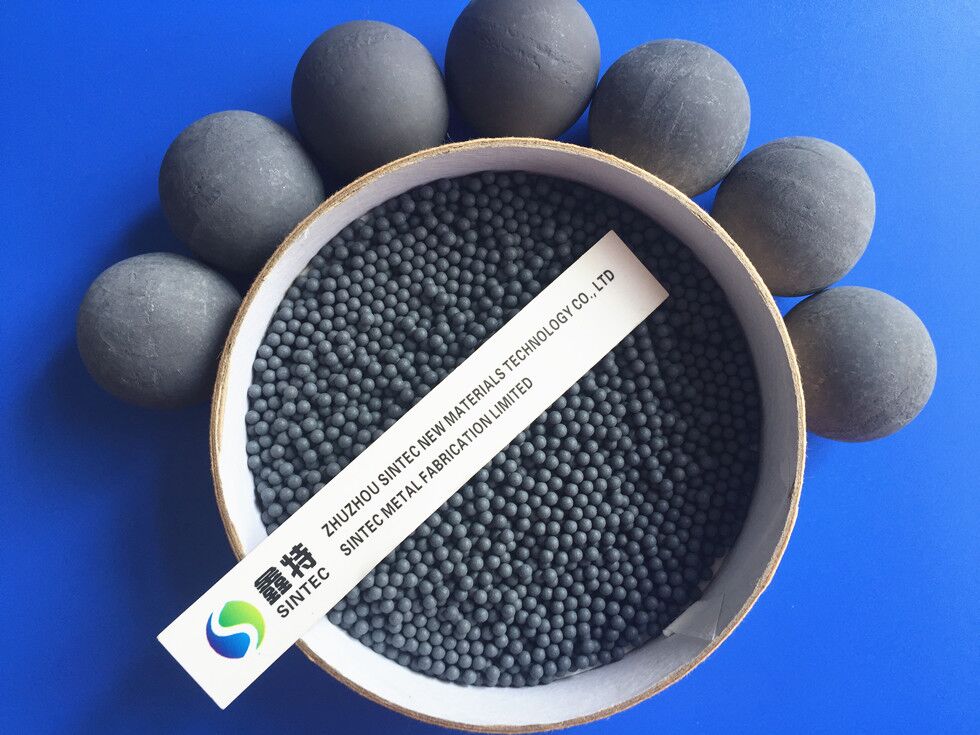

Sintec Silicon Nitride grinding media for ball mill

Equipment: EDM machines, cutting machine and drilling, CNC machine, precision grinding machine etc.
Advanced production equipment and technical support, strict quality control, good service support help us to supply our clients with quality products and service.
If you are finding parts with, and if you'd customize special parts, Zhuzhou Sintec New Material Co., Ltd is your best choice!

Welcom inquiry, best offers for you!
