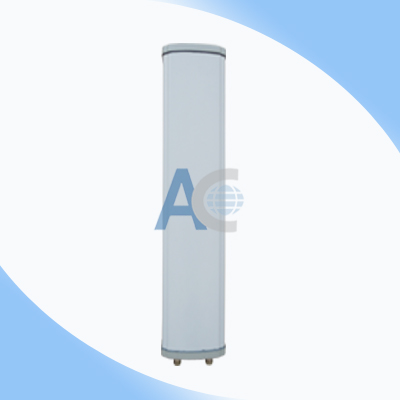

5GHz WiFi MIMO Outdoor Base Station Antenna
| FOB Price: | 73.00 - 75.00 USD/Piece |
|---|---|
| Payment Terms: | T/T, Western Union, Other, paypal |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Model Number: AC-D4958V20X2-90
Specifications
Electrical
Frequency Range 4950-5850MHz
Band width 900MHz
F/B Ratio ≥20dB
Gain 2x20dBi
V.S.W.R <1.5Type;Max 2.0
Radiation Direction
Horizontal Beam width 90°
Vertical Beam width 4°
Polarization Vertical and Horizontal
Lightning Protection DC-Grounded
Maximum Input Power 100W
Impedance 50?
Connector 2XN Female
Antenna Radome Material PVC
Mount way Pole
Diameter of Installation Pole ?30~?50mm
Mechanical
Dimensions 725x130x60mm
Weight 3KG
Operating Temperature -40℃ to+80℃
Rated Wind Velocity 60m/s
RoHS Compliant YES
