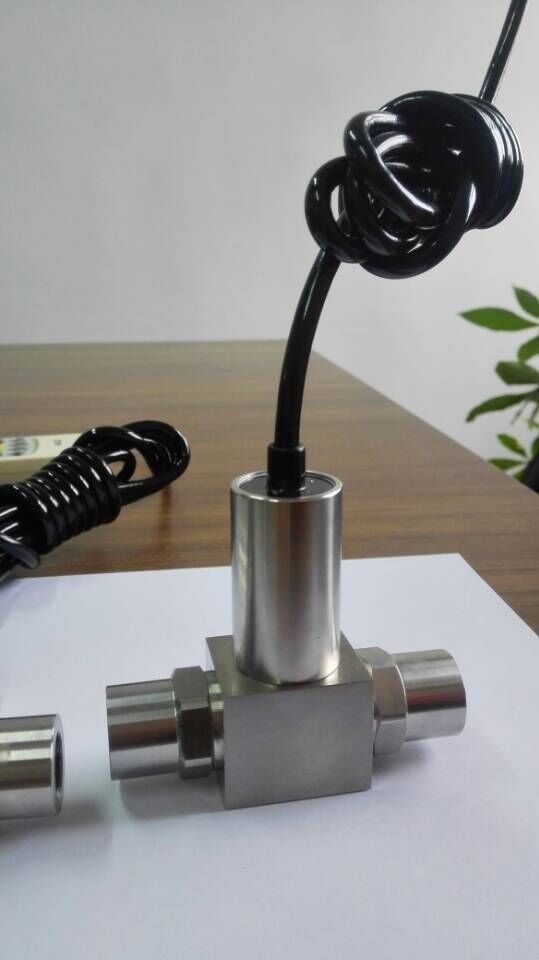

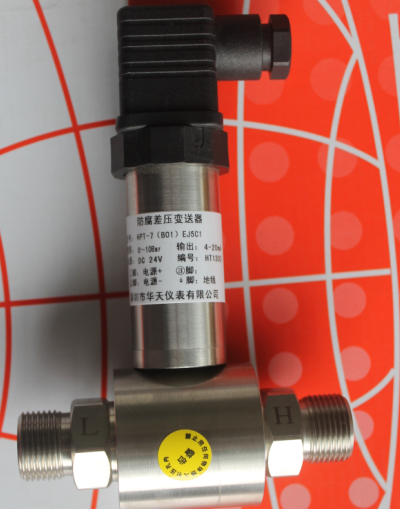

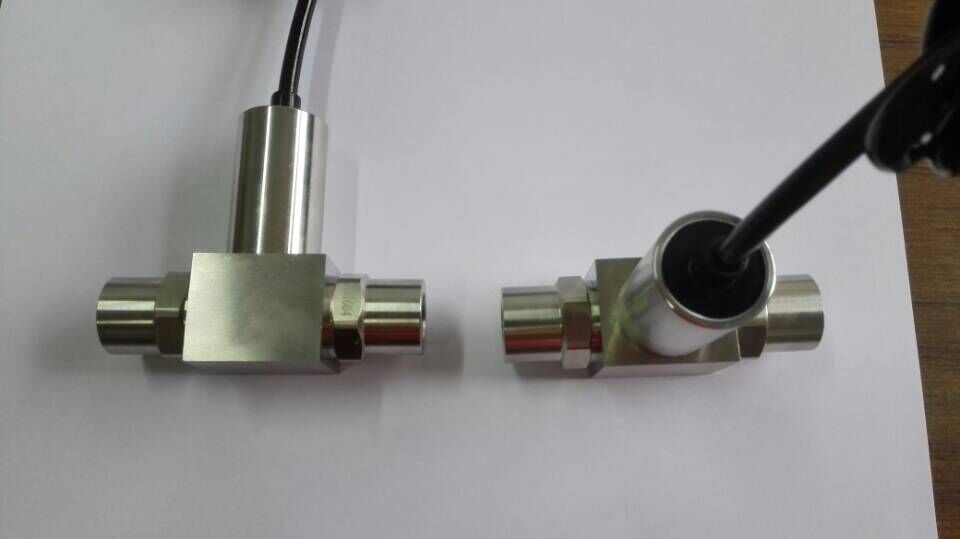

Anticorrosion Differential Pressure Transducer for Leak Detection HPT-7
| FOB Price: | 100.00 - 130.00 USD/Piece |
|---|---|
| Supply Ability: | 60,000 Piece(s) per Year |
| Shipping: | Shenzhen |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Standard export packaging |
Quick Details
- Model Number: HPT-7
- Brand Name: Shenzhen Huatian
Specifications
Introduction: ? Compact
Design, easy to install ? Wide
Measuring range:0~35kPa~7MPa ? Double
Sided 316L metal diaphragm ? Strong
Corrosion resistance ? High
Accuracy,Reliable
HPT-7Uses piezoresistive differential pressure
Sensor as sensing element. Silicon oil is filled in between die and two
Diaphragms, when measured differential pressure is added on two diaphragms; the
Pressure could beTransferredonto die through silicon oil. Sensor die
Connects with amplifier circuit through wires, using semi-conductor's
Piezoresistive effect, transforming differential pressure signal into electric
Signal. the whole product is used for differential pressure measurement of
Water, chemi-industry, power station and hydrology,Etc
Features:
Applications:
? Leak Detection |
? Flow(Air and Fluid) |
? Level(Sealed Tank) |
? Process Control |
? Automation Equipment |
Specifications( Refer to 25℃)
Sensor Type |
Differential sensor |
|
Operable Temp.(℃) |
-20~85℃ |
Wetted parts |
316L Stainless steel |
|
Storage Temp(℃) |
-20℃…125℃ |
Housing |
304 Stainless steel |
|
Long term stability |
±0.25%FS(annual) |
Power supply |
12-36VDC(24Vstandard) |
|
Zero error(%FS) |
±0.5% |
Media |
Be compatible with 316 |
|
Full range error(%FS) |
±0.5% |
Connector Outlet |
IP65 |
|
Thermal Zero drift(%FS) |
±1.0% |
Pressure port |
C1 M20*1.5 C2 M14*1.5 |
|
Thermal Span drift(%FS) |
±1.0% |
Accuracy (Combined Non-linearity, Hysteresis and Non-repeatability)%FS |
0.5%(Typical) |
|
Input Voltage / Output |
See below code Description |
|
Response |
1KHz | ||
Pressure Range |
0-35Kpa-7Mpa
|
|
Insulation |
Min1MΩ@250VDC&25℃ |
|
Shock |
100g,11msec | ||
over pressure |
2X Full Range |
|
Noise |
< 2m VRMS |
Max static pressure |
8X Full Range |
|
Pressure reference |
Differential |
Life |
>107Full Range Pressure |
|
Weight |
400g Max. |

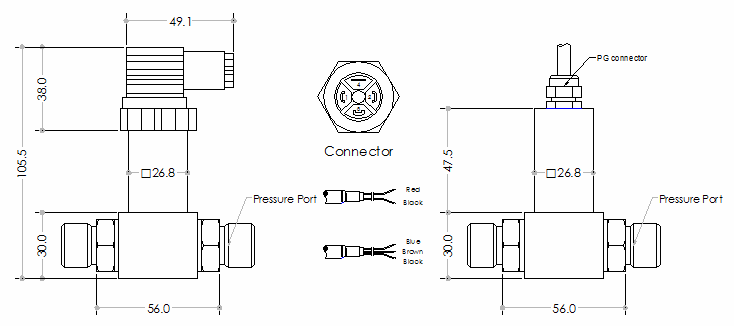

Outline Construction (Unit:mm)
