stage lighting ma stage lighting console grandma2 on pc ma2 on pc command wing

Specifications

stage lighting ma stage lighting console grandma2 on pc ma2 on pc command wing

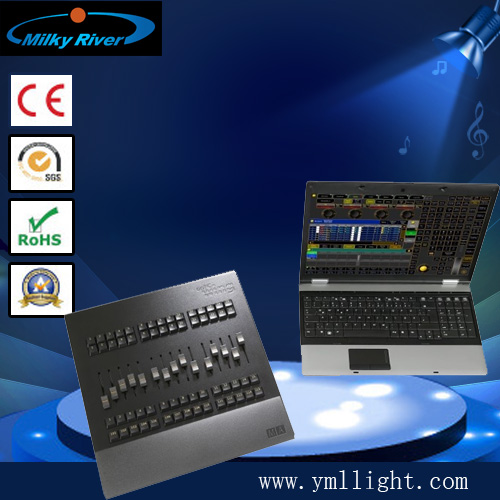

The MA onPC command wing paves the way for mobile use of the highly flexible and powerful MA2 control system. In combination with the free of charge MA2 onPC software, the MA onPC command wing is a portable 2,048 parameter control solution that can be used in nearly any location - and all for an affordable price! It offers two built-in DMX ports as well as the possibilty to send two additional DMX universes via Ethernet protocols with MA2 onPC.
Designed as the perfect hardware expansion to the MA2 onPC software, the MA onPC command wing enables the look and feel of the software to be as close to a real MA2 console as possible. Thanks to the MA onPC command wing - incorporating the command section of the MA2 consoles - it has never been easier to use the MA2 onPC software. With a simple USB connection between the MA onPC command wing and the computer running the MA2 onPC software, all inputs and outputs of a MA2 console are available to the user. DMX, Midi, Timecode and Analogue Remote are all on hand directly at the MA onPC command wing. As a clever detail a slot for a Kensington lock is integrated.
Wherever it is physically difficult to use a MA2 console, the MA onPC command wing, in conjunction with the MA2 onPC software, enables the customer to program or playback within the MA2 world. Therefore the MA onPC command wing is ideal to be used as a backup solution within the MA2 system, as powerful control solution on the road or for smaller theatres, shows and clubs or for preprogramming.

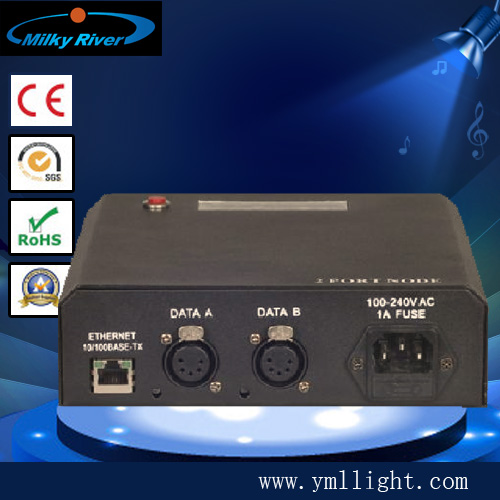

It is also possible to add more faders by connecting the MA onPC fader wing to the MA onPC command wing. Moreover the MA onPC fader wing provides additional 2,048 parameters and four DMX lines. The MA 8Port Node onPC and MA 4Port Node onPC will add 2,048 parameters and eight or four DMX lines respectively.
Please regard that it is possible to connect one MA onPC command wing and up to two MA onPC fader wing together to a computer running MA2 onPC.
Scope of delivery
Dust cover, USB cable 1.9m, power cord 1.9m IECC Plug (lockable) open end

Real-time control for 2,048 parameters in combination with MA2 onPC (up to 65,536 parameters as backup in the MA system)
Expandable up to 4,096 parameter
Command section similar to MA2 layout
2 A/B faders (100mm)
1 Level-Wheel
Individually backlit and dimmable silent (clickless) keys
Integrated universal power supply
Light, handy & rock solid
Ergonomic design
Just connect via USB to any PC running MA2 onPC

1. Our well trained and experienced staffs will reply your inquiry in 24 hours as quickly as possible.

2. We will answer your question as specifically as possible.

3. We provide OEM service.

4. We have been specialized in manufacturing for many years
5. Guarantee 1 year, in china guarantee 3 years.
