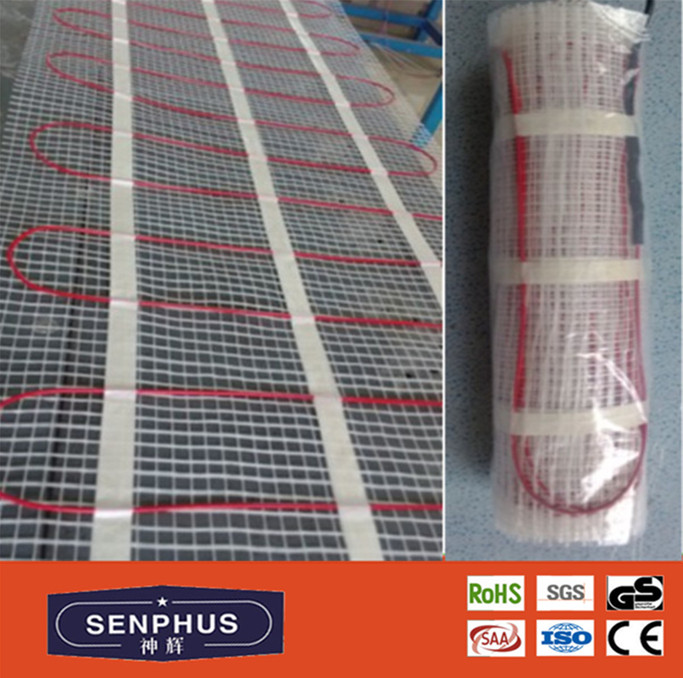

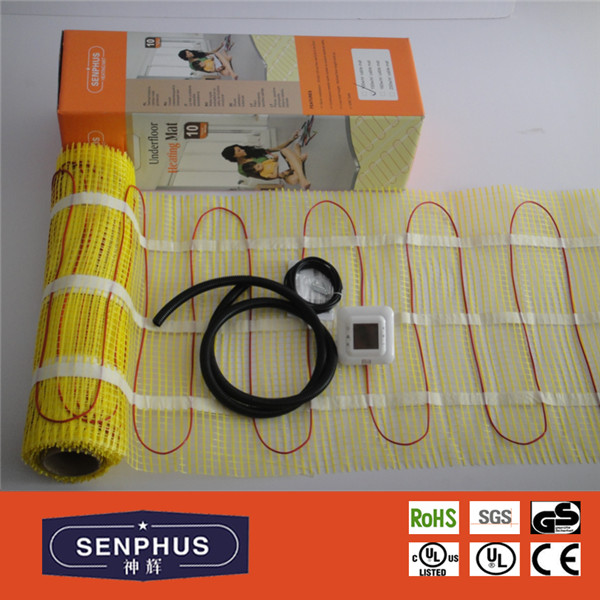

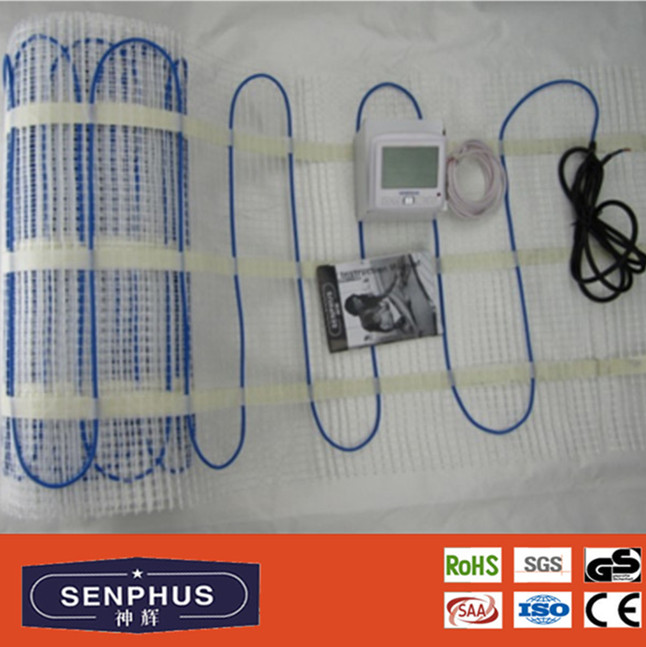

CE VDE approved radiant floor heating cable mat

FOB Price:	11.00 - 105.00 USD/Piece
Supply Ability:	10,000 Square Meter(s) per Month
Shipping:	30days, FOB SHANGHAI
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	carton, box, pallet, OEM

Quick Details

Application: floor heating
Number of Conductors: twin
Jacket: FEP
Insulation Material: FEP
Conductor Material: Copper
Model Number: SHHM
Brand Name: SENPHUS
Power: 90-200W/M2
Voltage: 110-240V
Size: 0.5-12m2
width: 0.5m

Specifications

The following example is for you reference.

Features:

Safe: High efficient and convient electric underfloor heating mat.

Automatism: Senphus CE electric underfloor heating mat kits can automatically(by thermostat) measure the heating requirement, and timely adjust the temperature.

Economical: The cost of installation and operation is relatively low; our Senphus electric underfloor heating mat kits can efficiently avoid damage and save maintain fees.

Eco-friendly: Our Senphus Indoor Electric underfloor heating mat
uses the cleanest and most efficient power which are popular between customers.

Warranty: 10 years

Technical details:
<

Type	voltage	Rated power	Resistance @20oC+10/-5%	Mat size	Cable Length
Type	V	W	Ω	m	m
SHHM-160-1.0M2	230	160	302.5	0.5X2.0	11.1
SHHM-160-1.5M2	230	240	201.7	0.5X3.0	16.65
SHHM-160-2.0M2	230	320	151.3	0.5X4.0	22.2
SHHM-160-2.5M2	230	400	121	0.5X5.0	27.75
SHHM-160-3.0M2	230	480	100.8	0.5X6.0	33.3
SHHM-160-3.5M2	230	560	86.4	0.5X7.0	38.85
SHHM-160-4.0M2	230	640	75.6	0.5X8.0	44.4
SHHM-160-4.5M2	230	720	67.2	0.5X9.0	49.95
SHHM-160-5.0M2	230	800	60.5	0.5X10.0	55.5
SHHM-160-6.0M2	230	960	50.4	0.5X12.0	66.6
SHHM-160-7.0M2	230	1120	43.2	0.5X14.0	77.7
SHHM-160-8.0M2	230	1280	37.8	0.5X16.0	88.8
SHHM-160-9.0M2	230	1440	33.6	0.5X18.0	99.9
SHHM-160-10M2	230	1600	30.3	0.5X20.0	111
SHHM-160-12M2	230	1920	25.2	0.5X24.0	133.2

Operation method of useage:

1) Don't damage heat mat.
2) Well installation can guarantee the efficiency.
3) After the installation, take a full test and make sure the system works well.

4) Heat insulation materials should be dry and the joint of cable should be sealed.

5)The junction box should be sealed to prevent water leak.
6) Protective sleeve must not be damaged during installation, and the core wire can not bare.

Package:

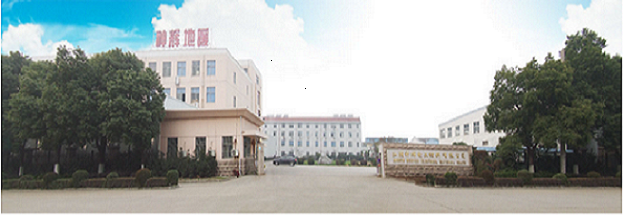

Factory Picture
