Home  >Products Catalog > CFG-23Hydraulic Crawler Type Auger Drilling Pile Driver

CFG-23Hydraulic Crawler Type Auger Drilling Pile Driver

FOB Price: 1,000.00 - 7,000.00 USD/Set
Supply Ability: 10 Set(s) per Month
Shipping: shipped in 20 days after payment
Payment Terms: L/C, T/T, Western Union
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: standard export package for CFG-23Hydraulic Crawler Type Auger Drilling Rig

Quick Details

  • After-sales Service Provided: No overseas service provided
  • Certification: ISO CE
  • Dimension(L*W*H): 14500X3000X3960mm
  • Weight: 33t
  • Model Number: CFG-23
  • Brand Name: HW
  • Condition: New

Specifications

Product Description of CFG-23Hydraulic Crawler Type Auger Drilling Rig

Application scope

1 Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.

2 With hydro-automatic feeding device, and high drilling efficiency.

3 Designed with hydro-chucking unit instead of slips to ensure drilling from   stop when changing pipes.

4 Close levers, convenient to operate, safe and reliable operations.

5 Compact in structure. All the drill, water pump and diesel engine installed on  one base frame result in space-saving.

6 Light in weight, easy disassembling for transportation and applicable to working conditions

in plain and mountain areas.

Main Parameter of CFG-23Hydraulic Crawler Type Auger Drilling Rig

Maximum drilling depth(m)

23

Drilling diameter (mm)

300-800

Maximum pulling force (Main winch) (kN)

240

Column allows the tilt angle(°)

Column effective length (mm)

26000

Motor power of power unit (kW)

55X2

Drill penetration rate(r/min)

23.5

Maximum output torque of power unit (kN.m)

48.1

Walking step(mm)

1500

Swing Speed(rpm)

180°

Ground pressure shoe boots(KN/m2)

61.3

Maximum working pressure of hydraulic system(MPa)

16

Maximum allowable slope of the ground work status(°)

Dimensions (length X width X height) mm

Work status

10370X5000X28300

Drag status

14500X3000X3960

Pile Weight(T)

Work status

41

Drag status

33

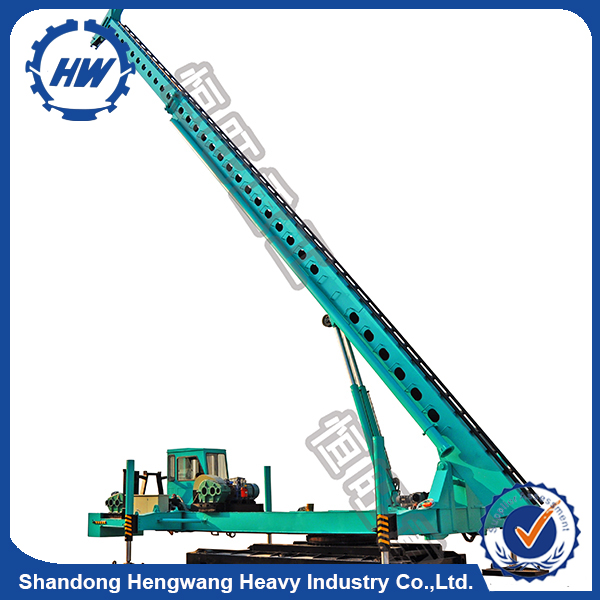

Figure Photos of CFG-23Hydraulic Crawler Type Auger Drilling Rig
CFG23Hydraulic Crawler Type Auger Drilling Pile Driver
