Suzhou Changfeng CNC Technology Co., Ltd.
China Manufacturer with main products: Wire Cut EDM, NC Die Sinking EDM, CNC Machining Center, Machine Tools, Machine Taps, Milling Machine, Molybdenum Wire, Guide Wheel |

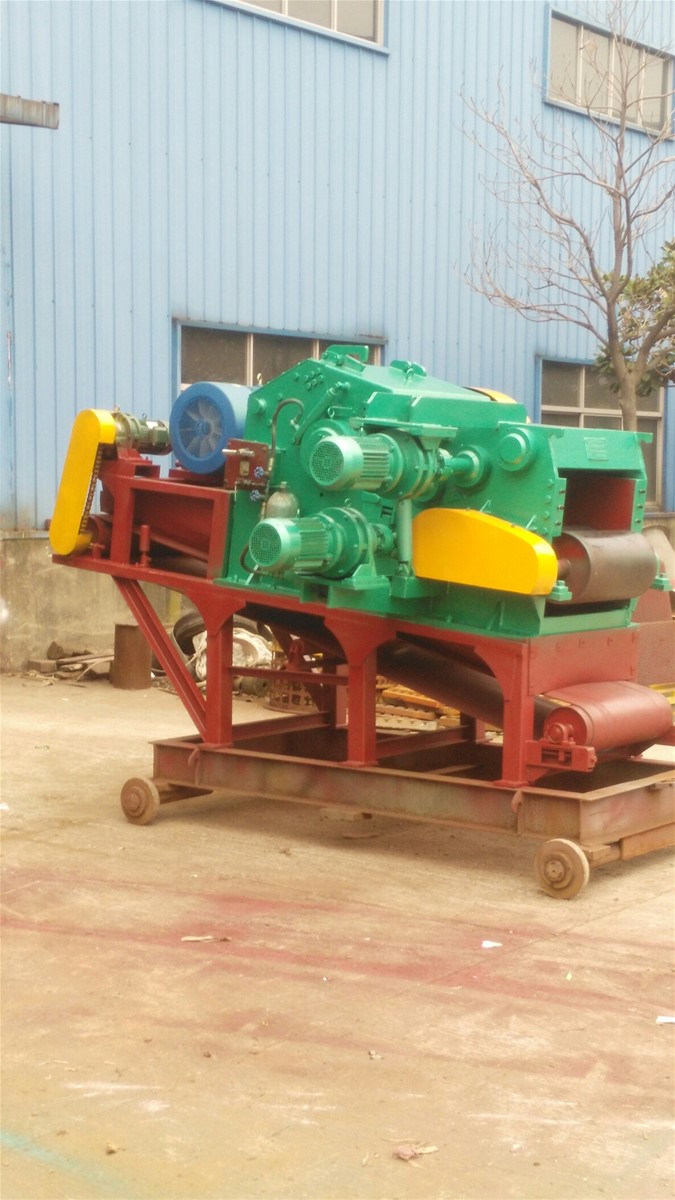

Wood Drum Chipper BX2110
| FOB Price: | 80,000.00 - 85,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set(s) per Year |
| Shipping: | 90 days,at Shanghai |
| Payment Terms: | D/P, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | Standard exported package |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: ISO9001
- Weight: 12.5T
- Dimension(L*W*H): 4340*3550*1500mm
- Model Number: BX2110
- Brand Name: Runxiang
Specifications
the following example is for you reference.
1.Brief Introduction:
Drum chipper is the traditional product of our company.It is widely used by domestic and oversea customers because of its advantage performance,top quality.Etc.the drum chipper is the special equipment for producing perfect chips.It is used in paper plant,particle board plant,fiber-board plant,chip production and export bases.by which,logs and small wood are cut into high quality with even length and uniform chip thickness,it is also suitable for the chipping of branches and twigs planks.etc.
2.Techincal parameters:
Model Parameter |
BX2110 |
BX2113 |
BX2113A |
BX2113D |
Rotor diameter mm |
1000 |
1300 |
1300 |
1300 |
Number of rotor knives |
2*2 |
2 |
4 |
4*2 |
FEed opening mm |
330*1050 |
400*700 |
400*700 |
400*1250 |
ROtor speed Rpm |
550 |
500 |
420 |
375 |
FEed speed mm |
38 |
38 |
44 |
44 |
PRocessed max diameter mm |
210 |
230 |
230 |
250 |
CHip length mm |
30 |
38 |
35 |
30 |
Capacity m3/h |
75 |
34-64 |
60-70 |
114 |
MAin drive motor power kw |
220 |
200-250 |
250 |
450-600 |
FEed roller motor power kw |
7.5*2 |
7.5*2 |
7.5*2 |
11*2 |
PUmp motor power kw |
2.2 |
3 |
3 |
2.2 |
MAchine weight kg |
12500 |
11840 |
11840 |
18000 |
OVerall dinensions mm |
4340*3550 *1500 |
3670*2517 *2050 |
3670*2517 *2050 |
5484*5400 *1860 |
3.Performance features:
2. the raw materials for the serial drum chippers mainly include: log, small-diameter wood, tree-felling remainder
(branch etc.), wood processing remainder (lath, slab, log core, abolish single-board.).
3. the serial drum chippers are of compact structure, ease of operation, high capacity, wide raw materials adaptability, high quality, safe and reliable, easy to maintain, it is the relatively advanced slicer at present both
at home and abroad.
4. the serial drum chippers could meet the production capacity between 3 and 130 cubic meters of wood chips per hour. Users could select the suitable type of machine according to requirements.
