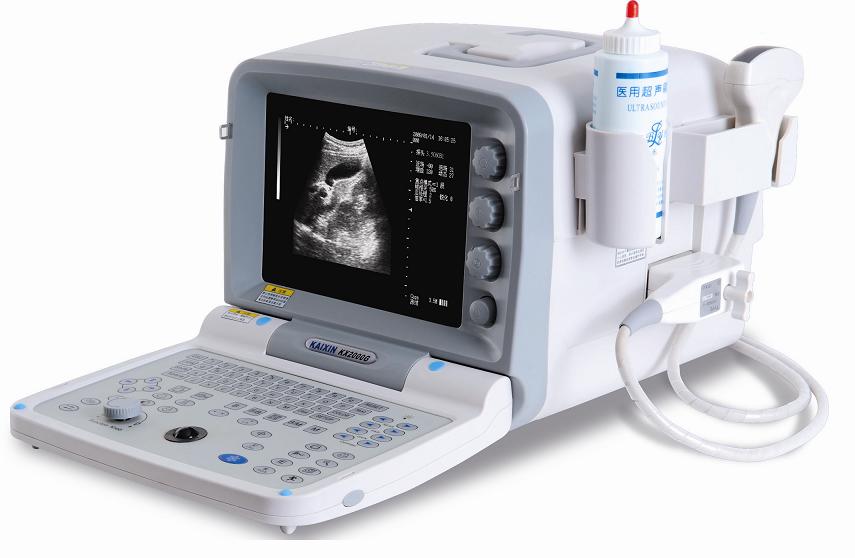

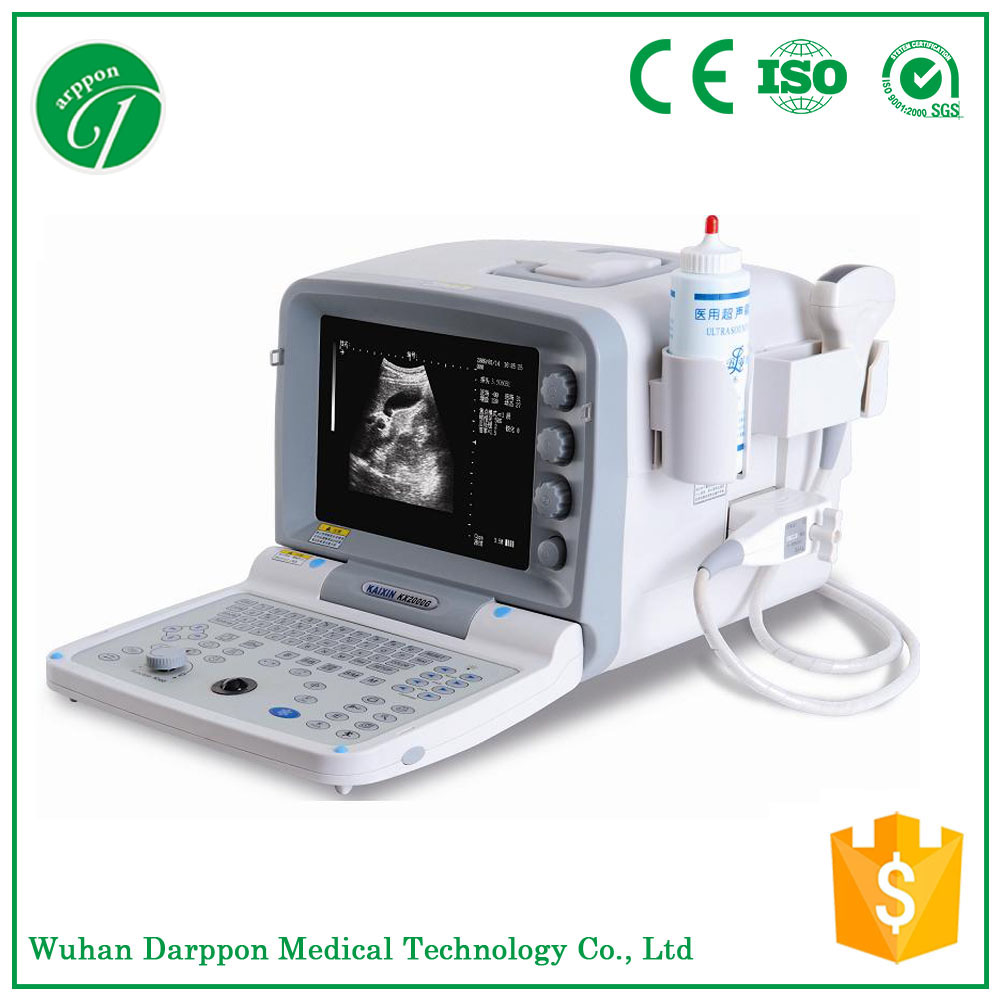

Low Price Portable Ultrasound Machine from China Factory

  Menu operation, support 5 customized languages: English, Spanish, Russian, French, Portuguese;
 Abundant software package:abdomen general, Obstetric, Gynecology,  Urological and other part measurement;
 10 grades depth adjustment under full visual field, maximum display depth is 236mm;
 Display mode:B,2B,4B,B/M,M;
 Internal eight pseudo colors (incl. B/W), optional color LCD monitor;
 100 frames permanent storage, 256 frames cine loop;
 Two USB ports support large capacity U disk (support document management/software upgrades/one-key storage), and color laser printer directly print various images and reports;

Ultrasound machine Parameter

Adopt ARM7 Embedded Control Systems, FPGA signal processing system and specially selected ultrasonic hardware system, making the machine more reliable.

10" high resolution CRT monitor, line by line scanning without sparkle.

Menu operation, support 5 customized languages: English, Spanish, Russian, French, Portuguese.

Double probe sockets, automatically identify the probe, support several optional probes.

Body mark: 64 pcs of body marks with probe position.

Display mode:B,2B,4B,B/M,M, total 5 kinds.

10 grades depth adjustment, maximum display depth is 236mm.

Gain range: 0~127dB

Dynamic  range: 27~90dB

Gray: 256

Intelligent TGC control: 8 grades.

Frame frequency: 30 frames /second

Pseudo-color: 8 kinds (incl. B/W).

Image storage: main unit Disk C 32 MB capacity, 100 frames permanent image storage, without loss when power off.

Cineloop: 256 frames.

Puncture guiding function,( 2 guiding lines, angel and position adjustable)

Equipped with lithotripsy software, realize real-time positioning measurement.

General measurement:distance,perimeter, area, volume, angle, length and area stenosis ratio measurement.

Obstetric measurement and analysis: 15 kind of obstetric software, several GA measurement, amniotic fluid index,fetal growth curve and OB report.

Gynecology measurement and analysis: gynecology general measurement and gynecology report.

Urology measurement and analysis: residual urine volume, prostate volume, and urology report.

Two USB ports support large capacity USB disk (support document management/software upgrades/one-key storage), and color laser printer directly print various image and reports.

Dual-mode TV output:PAL/NTSC, connecting to thermal printer and ultrasonic working station.

Power supply: AC110/230-15% ~ + 10% (self-adaption supply voltage) 60/50 hz ± 1 hz

Net weight:12kg;

Main unit size: 387 x 319 x 270 mm (length x width x height.
