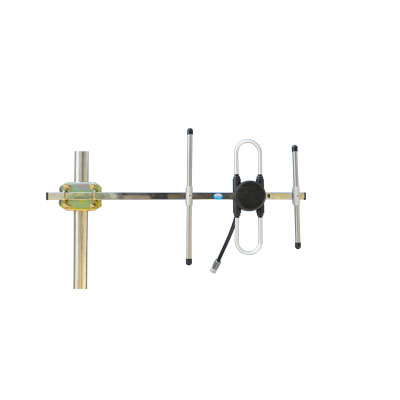

New Product UHF 433MHz 5dBi Yagi Antenna

Payment Terms:	T/T, paypal

Inquiry Now

Related products from verified members

Outdoor Antenna (DK-801)

Price:

Min. Order:
Inmarsat Isatphone 2 ISATDOCK2

Price:

Min. Order:1 Set
Antenna

Price:

Min. Order:200 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: AC
Input connector type: N Female
Lightning protection: Yes
Gain(dBi): 5dbi
Frequency range(MHz): 433MHz
Model Number: AC-D433Y05-03

Specifications

Electrical
Frequency Range     433MHz
Band width     ±3MHz
Gain     5dBi
F/B Ratio    ≥16
Horizontal Beam width    40°
Vertical Beam width     44°
V.S.W.R     ≤2.0
Radiation    Direction
Lightning Protection    DC-Grounded
Polarization     Vertical or Horizontal
Maximum Input Power     50W
Impedance    50?
Connector     N Female
Cable Length    30CM
Antenna Radome Material    stainless steel
Mount way     Pole
Diameter of Installation Pole    Φ30-50mm

Mechanical
Antenna Dimension    1000x360x80mm
Weight    0.8KG
Operating Temperature    -40℃ to+70℃
Rated Wind Velocity     60m/s
RoHS Compliant    YES

New Product UHF 433MHz 5dBi Yagi Antenna
