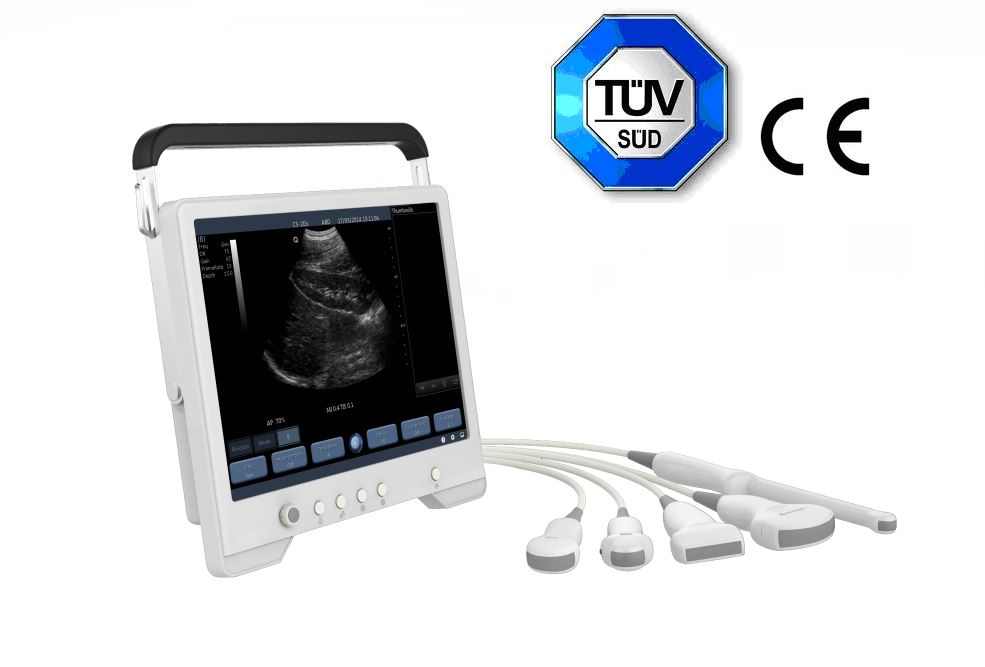

15'' Mobile Touch Screen Color Doppler Machine iPad 2d Color Doppler Medical
| FOB Price: | 5,000.00 - 5,500.00 USD/Piece |
|---|---|
| Supply Ability: | 500 Piece(s) per Month |
| Shipping: | CARTON |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | 378mm(W)*376mm(L)*85mm(H) |
Quick Details
- Model Number: TS20
- Brand Name: Darppon
- Type: Doppler Ultrasound Equipment
- Type: Doppler Ultrasound Equipment
- Model Number: TS20
- Gross weight: 5.0kg
- Net weight: 3.0kg
- Packing dimension: 378mm(W)*376mm(L)*85mm(H)
- Dimensions(main unit): 358mm(W)*366mm (L)*65mm (H)
Specifications
15'' Mobile touch screen Color Doppler Machine iPad 2d Color Doppler Medical
Product Description
Features
Multi-frequency probes
3.5 MHz convex probe
Application:
Abdomen,GYN,OB
7.5 MHz linear probe
Application: Vascular,Small Parts
6.5 MHz trans-vaginal probe
Application: Vaginal
5.0 MHz micro-convex probe
Application:Cardiac
Standard Configurations
Q3 B/W main unit
15" LCD with high resolution: 1024*768
Two USB ports
One composite video signal output
One networking port
One power inlet
One equipotential terminal
Two transducer connectors
Plenty of measurement&calculation software packages
18 months warranty since ex-factory date for main unit
12 months warranty since ex-factory date for probes
Optional
3.5 MHz convex probe
7.5 MHz linear probe
6.5 MHz trans-vaginal probe
5.0 MHz micro-convex probe
Specification
Panoramic focusing technology
-Rolling M technology
-Imaging Processing
-Pre-processing: Cloud processing technology
-8-segment TGC
-Gain(B&W)
-Dynamic range
-Persisitence
-M Soften
-Noise suppression
-Post-processing: Image enhancement
-Gray Map
-Colorize Map
-Tissue Specific Imaging
-Left/right reverse
-Up/down reverse
| B&W mode | B,M,2B,B/M,4B |
| Gray sacle | 256 |
| Display | 15" LCD monitor |
| Transducer frequency | 2-11Mhz |
| Digital technology | Wide-angle imaging |
| Scanning depth | 300mm |
| Pre-processing | Cloud processing technology |
| Cine-loop | 334 frame cine loop memory |
| USB ports | 2 |
| Zoom | Pan zoom |
Functions
-THI: Tissue Harmonic Imaging
-Qopt: Optimize
-DICOM 3.0: DICOM 3.0
-Measurement & Calculations
-B mode: Distance, angle, area, volume, trace length, distance ratio
-M mode: Distance, time, slope, HR
-Software packages: Abdomen, OB, gynecology, small Part
