Home >Products Catalog > Loading ramp > Material Handing Equipment 10 Ton Mobile Hydraulic Loading Ramp for Forklift

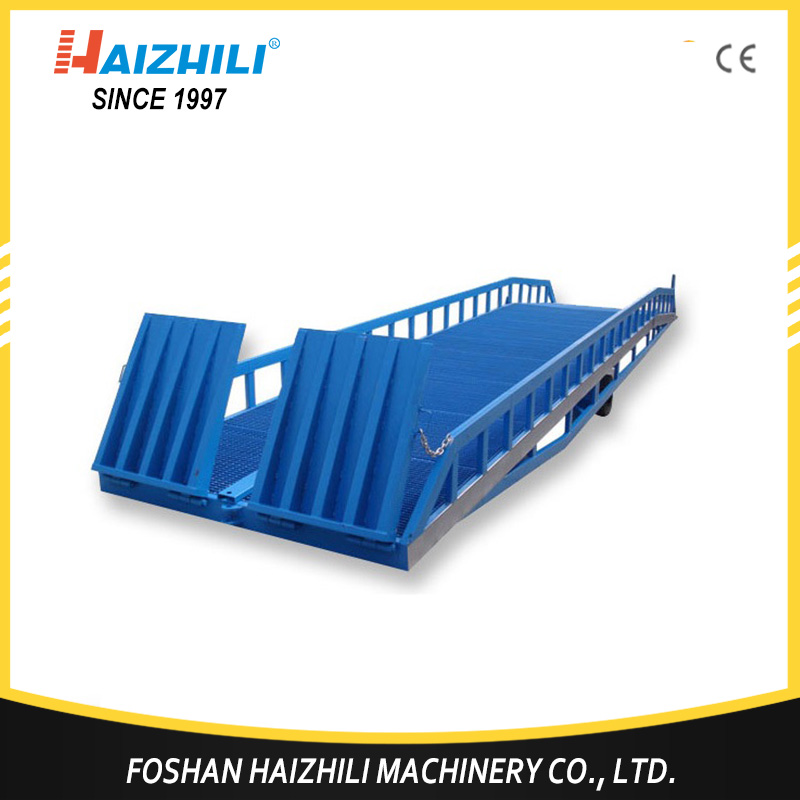

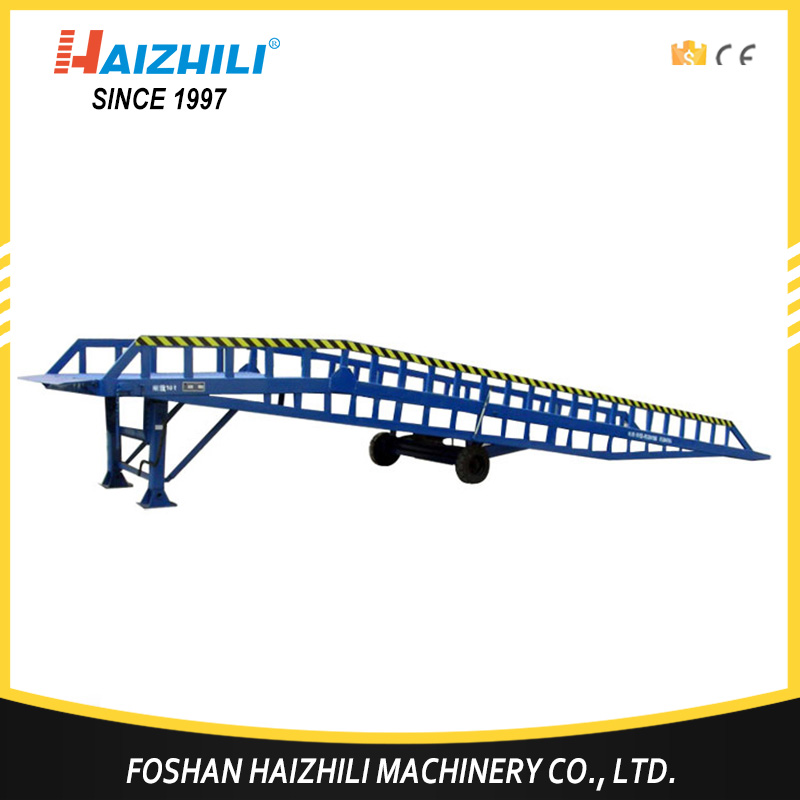

Material Handing Equipment 10 Ton Mobile Hydraulic Loading Ramp for Forklift

FOB Price:	4,500.00 - 5,800.00 USD/Set
Supply Ability:	200 Set(s) per Month
Shipping:	Shipped in 30 days after payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	hydraulic loading ramp package 2 units of loading ramp in a 40 GP container

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: CE
Weight: 1900kg
Overall Dimensions: 10500*2080*1800mm
Table Size: 10500*2080mm
Max. Lifting Height: 1.8m
Min. Lifting Height: 0.8m
Rated Loading Capacity: 10 ton
Power: 0.75kw
Lift Drive / Actuation: Hydraulic
Lift Mechanism: hydraulic lift
Model Number: DCQY10-0.8
Brand Name: Haizhili
Product name: Hydraulic loading ramp
Voltage: 220v / 380v
Color: Blue , red, green, yellow and others
Operate: Up and down realized by pressing the electric panel
Cylinder: 2 cylinders
Material: High-duty Steel Structure
Safety: Hydraulic overload protective device
Main board: Anti skid thick plateform
Working condition: Indoor and outdoor
Control: Control box and remote control

Specifications

Description of hydraulic loading ramp

1). Hydraulic loading ramp is the Auxiliary equipment for cargo loading and lifting. It is widely used in warehouse, station, wharf, warehousing logistics base, postal transportation, logistics distribution etc.
2). Convenient push button activation and first-class hydraulic technology increase the efficiency and safety of the loading /discharging jobs
3).It is classified to five kinds by carrying weight capacity, such as 6T, 8T, 10T, 12T, 15T etc .

Speicification of Hydraulic loading ramp

Material handing equipment 10 ton mobile hydraulic loading ramp for forklift

Advantage of Hydraulic loading ramp

1) Container load ramp using the hydraulic pump as lifting power, and no need electric power source, can easily adjust the height by hand-cranked.

2) Adopting anti-slip checkered steel plate to guarantee good anti-slip performance of the platform,.
3) We use solid tyres instead of the pneumatic tyres which will be more safety and easy to control during operation, it will extend the tyres and the ramps service life.

4) Adopting imported sealing member to guarantee good sealing performance of the hydraulic system.

Material handing equipment 10 ton mobile hydraulic loading ramp for forklift
