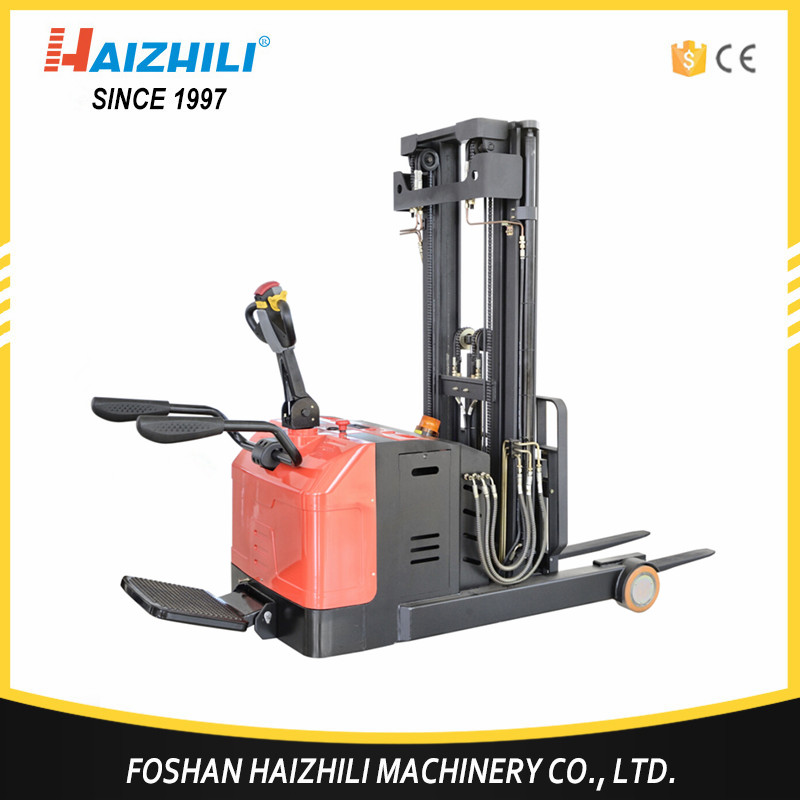

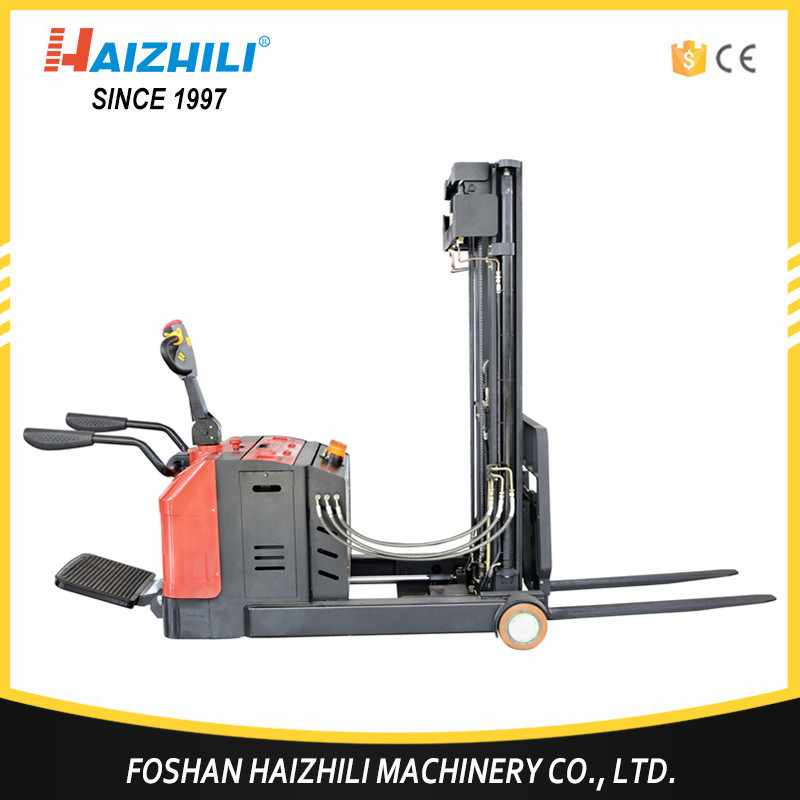

China Hot Sale Warehouse Used 1 Ton Electric Reach Pallet Stacker for Sale

FOB Price: 6,000.00 - 6,200.00 USD/Set
Supply Ability: 500 Set(s) per Month
Shipping: Shipped in 20 days after receive down payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: Electric reach stacker packaging: International standard package cover by plastic film for electric stacker

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 1 year
  • Certification: CE
  • Dimension(L*W*H): 3040*850*1790mm
  • Model Number: CDD1M25
  • Brand Name: HAIZHILI
  • Condition: New
  • Product name: Electric reach stacker
  • Drive mode: Electric
  • Loading Rate: 1000kg
  • Service weight: 1730kg
  • Continuous working hours for battery: 4 hours
  • Load center: 600mm
  • Wheels base: 1100mm
  • Turning radius: 1370mm
  • Max lifting height: 2500mm
  • Mast height: 1790mm

Specifications

China Hot Sale Warehouse Used 1 Ton Electric Reach Pallet Stacker for Sale
China Hot Sale Warehouse Used 1 Ton Electric Reach Pallet Stacker For Sale

Specification of electric reach stacker:

Model CDD1M16 CDD1M25 CDD1M30 CDD15M16 CDD15M25 CDD15M30
Load capacity (kg) 1000 1000 1000 1500 1500 1500
Load center(mm) 500 500 500 500 500 500
Wheels base(mm) 1100 1100 1100 1270 1270 1270
Weight(kg) 1530 1630 1730 1630 1730 1830
Front wheel size(mm) 210 210 210 210 210 210
Rear wheel size(mm)  124 124 124 124 124 124
Driving wheel size(mm) 230 230 230 230 230 230
Mast retract height(mm) 2120 1790 2040 2120 1790 2040
Overall length(mm) 3040 3070 3070 3210 3240 3240
Overall width(mm) 850 850 850 850 850 850
Ground clearance(mm) 60 60 60 60 60 60
Fork length(mm) 1070 1070 1070 1070 1070 1070
Fork outer width(mm) 680 680 680 680 680 680
Turning radius(mm) 1370 1370 1370 1370 1370

1370

Fork min height(mm) 85 85 85 85 85

85

Max mast height(mm) 2120 3090 3590 2128 3090

3590

Running speed(laden/unladen)(Km/h) 5/5.3 5/5.3 5/5.3 5/5.3 5/5.3

5/5.3

Lifting speed (laden/unladen)(mm/s) 58/148 58/148 58/148 58/148 58/148

58/148

Descent speed(laden/unladen)(mm/s) 145/80 145/80 145/80 145/80 145/80

145/80

Driving motor(Kw) 1.3 1.3 1.3 1.3 1.3

1.3

Lifting motor(Kw) 2.2 2.2 2.2 2.2 2.2

2.2

Battery capacity/voltage(Ah/V) 24/210 24/210 24/210 24/210 24/210

24/210



Tips: It can be customized according to your need about the specifications of the electrical staker.   so plEase feel free to contact us for any question.



Main Character  of Electric Reach Stacker:

     ? EMergency reverse switch, greatly enhance the safety

      ? Double mast adopts composite mast.

      ? Safe explosion-proof valve equipped with the system ensure operator safety.

      ? the two battery and horizontal driving wheel drive system.

      ? Electronic control system, easy operation.

      ? Excellent driving wheels, reliable braking system.



Configuration of Electric Reach Stacker:

   ? Vertical driving wheel (1.5 KW / 2.0 KW AC motor)
    ? with the pedal arm guard
   ? Vertical Electronic steering
    ? 24 v / 210 ah battery (optional 280 ah)
    ? 2.2 KW / 3 KW hydraulic pump
    ? Double oil cylinders mast system (three oil cylinders tripe mast system)
   ? with forward and backward (optional sideway mast )

China Hot Sale Warehouse Used 1 Ton Electric Reach Pallet Stacker For SaleChina Hot Sale Warehouse Used 1 Ton Electric Reach Pallet Stacker For Sale

about Haizhili:
Haizhili M
Achinery Co., Ltd. was founded in 1997. Haizhili is a high tech enterprise of research and development, manufacture, sales and after-sales service of material handle equipments. with 2 production bases, covers an area of 20000 square meters, Haizhili has more than 500 experienced technicians. We can provide our customers efficient, safe, comprehensive solution for aerial work, cargo lifting, warehousing & logistics transportation.



Haizhili has hundreds of stores, transit warehouses and after-sales service points in China. Haizhili also has thousands of distributors. No matter where you are, you can get our professional after-sales service in time in China. Now Haizhili is expanding our business to the whole world. with perfect pre-sale service, in-sales service, after-sales service, haizhili has earned good reputation and trust from clients home and abroad.



Haizhili Has always followed a policy of "Quality first, Technology leading, Cooperation and Win-win ". Haizhili has been developing itself by researching on new technology and new products, offering superior products and service for customers. If you are looking for smooth business, profit and success, we are the right supplier. with good quality and professional service, we have fully confidence that Haizhili will be your best partner. We sincerely hope to cooperate with you for win-win situation.
