Shenzhen Deriser Photoelectric Co., Ltd.
China Manufacturer with main products: LED Full Color Display, LED Moudle, LED Lndoor Full Display, LED Outdoor Full Display, LED Lease Full Color Display |
PH10 LED Outdoor Full Color Display
| FOB Price: | 600.00 - 620.00 USD/Square Meter |
|---|---|
| Supply Ability: | 3,000 Square Meter(s) per Month |
| Shipping: | 15 to20 days |
| Payment Terms: | L/C, D/A, D/P |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | carton or air box |
Quick Details
- Pixels: 10mm
- Display Function: Video
- Tube Chip Color: Full Color
- Usage: Outdoor
- Brand Name: DERISER
Specifications
1.Hardware: LED screen and video controlling system
2.Technical materiaL: English version user manual, installation manual, and maintenance manual
3.Service:Provide free technology support by phone and e-mail
4. 3years guarantee
5.Delivery: 15 days
6.Packing: Anti-shaking wooden package or Air Flight Case
7.Transportation: by sea or air or Express
8Pixel Pixel pitch: 10mm
9Configuration: 1R1G1B
10:Pixel density: 10000dots/m2
11:LED: SMD2727

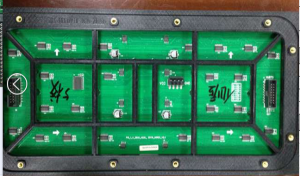

12:Module resolution: (W)32 × (H)16
13:Module size: 320mm × 160mm
14:Module pixels: 10000pixels
15:Screen Viewing angle: (Horizontal)120°, (Vertical) 120°
16:Storage temperature: -30℃ ～ +60℃
17:Working temperature: -10℃ ～ +45℃
18:Relative humidity: 10%～95%
19:Power Supply Working voltage: 110V/220V±15％
20;Average power consumption: 450W/m2
21:Max power consumption: 870W/m2
22:Control system Operation system: WIN 98/ 2000/ XP
23:Controlling mode: synchronous control system
24:Graphic card: independent DVI graphic card
25:Main technical parameters 1)Driving devices: constant current
26:Scanning mode: 1/8
27:refresh rate: ≥800Hz
28;frame frequency: ≥60Hz
29:grey scale/color: 16384 levels / 4.4trillion colors
30:brightness: ≥6000cd/m2
31:brightness adjustment mode: Software 256 levels adjustable.
32:video signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION...etc.
33;control system: PCTV card(optional), DVI graphic card, master card, optical fiber transmission(option)
34:MTBF: 1000hrs.
35)life time: 100000hrs.
36)defect rate: ＜0.0001
37)switching power supply load: 5V/40A, 5V/60A
38)computer display mode: 1280×1024
39)communication distance: network cable: 100m, multimode optical fiber: 500m, mono mode optical fiber: 20km
40:Software LED studio
Our service
41.Your inquiry related to our products or price will be replied in 24hrs
42. the size can be change as you give.
43. What we show is some of our current models, welcome to give us your own ideas.
44. Protection of your sales area, ideas of design and all your private information
45. (Top Quality) + (Reasonable Price) + (Responsible after Service) = (Successful & Win)
46.Please contact me if u want to know more parameters and details
47.Pixel configuraiton 1R1G1B
48.LED standard. DIP346
49:display color. 687 million
50.Control mode.Video SynC
51.the optimal viewing distance:8to100meter
