Home  >Products Catalog > Pallet stacker > High Quality Material Handling Tools 1000kg Full Electric Reach Stacker Price

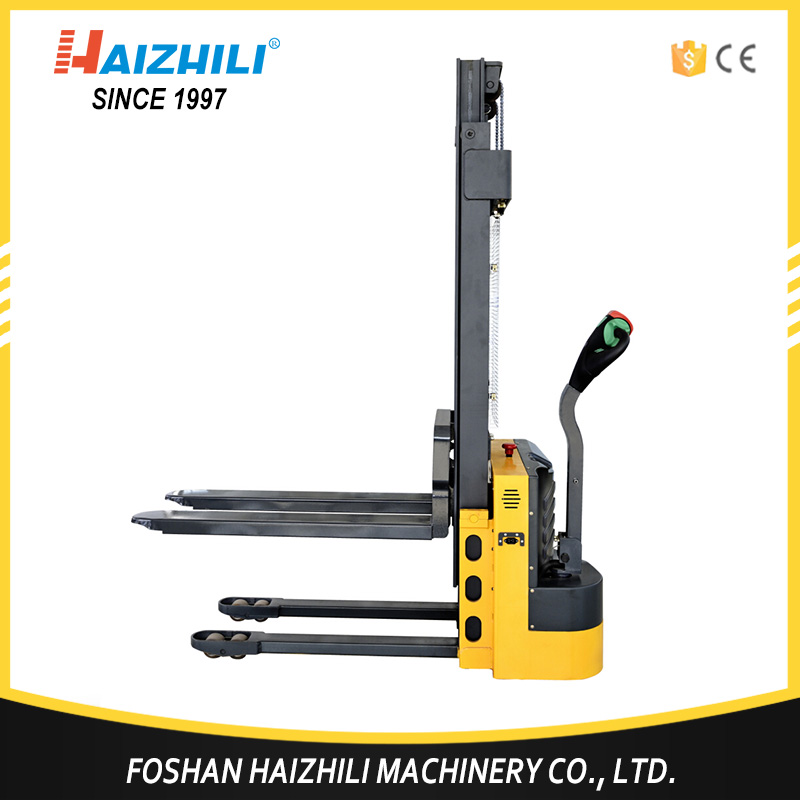

High Quality Material Handling Tools 1000kg Full Electric Reach Stacker Price

FOB Price: 1,900.00 - 2,100.00 USD/Set
Supply Ability: 2,000 Set(s) per Month
Shipping: Within 15 days after receipt of electric stacker down payment.
Payment Terms: L/C, T/T, Western Union, MoneyGram
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details: Each electric stacker to be packed in one iron pallet.

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 1 year
  • Certification: CE, ISO
  • Dimension(L*W*H): 1716*820*2095mm
  • Model Number: CDD1M16-T
  • Brand Name: Haizhili
  • Condition: New
  • Product name: Electric reach stacker
  • Drive mode: Electric
  • Loading Rate: 1000 (KG)
  • Weight: 520kg
  • Storage battery specification (V/Ah): 12/80
  • Continuous working hours for battery: 4 hours
  • Load center: 600mm
  • Hoisting machine specifications (V/W): DC12V/1.6KW
  • Charger specification (H): Input 220V/50HZ,output12V/15A(built-in)
  • Material: High-duty Steel

Specifications

High quality material handling tools 1000kg full electric reach stacker price

Quick detail of electric stacker:

1. Capacity: 1000kg

2. Lifting height: 1600mm

3. Full electric

High quality material handling tools 1000kg full electric reach stacker price

 Specification of electric stacker:

Model CDD1M16-T CDD1M25-T CDD1M30-T CDD15M16-T CDD15M25-T CDD15M30-T
Load capacity(kg) 1000 1000 1000 1500 1500 1500
Load center(mm) 600 600 600 600 600 600
Wheel base (MM) 1208 1208 1208 1208 1208 1208
Weight(kg) 520 570 600 520 570 600
Front wheel size(mm) 78 78 78 78 78 78
Rear wheel size 124 124 124 124 124 124
Driving wheel size(mm) 220 220 220 220 220 220
Mast retract height(mm) 2095 1785 2035 2095 1785 2035
Overall length(mm) 2095 3000 3505 2095 3000 3505
Overall width(mm) 1716 1716 1716 1716 1716 1716
Ground claerance(mm) 820/570 820/570 820/570 820/570 820/570 820/570
Fork length(mm) 1150 1150 1150 1150 1150 1150
Fork outer width(mm) 560 560 560 560 560 560
Truning radius(mm) 1400 1400 1400 1400 1400 1400
Fork min heighr(mm) 30 30 30 30 30 30
Max mast height(mm) 85 85 85 85 85 85
Running speed(km/h) 5/5.3 5/5.3 5/5.3 5/5.3 5/5.3 5/5.3
Lifting speed(mm/s) 75/150 75/150 75/150 75/150 75/150 75/150
Descent speed(mm/s) 140/80 140/80 140/80 140/80 140/80 140/80
Driving motor(kw) 0.5 0.5 0.5 0.5 0.5 0.5
Lifting motor(kw) 1.6 1.6 1.6 1.6 1.6 1.6
Battery capacity/voltage (12/80Ah)x2 (12/80Ah)x2 (12/80Ah)x2 (12/80Ah)x2 (12/80Ah)x2 (12/80Ah)x2




Tips: It can be customized according to your need about the specifications of the electrical staker.   so plEase feel free to contact us for any question.

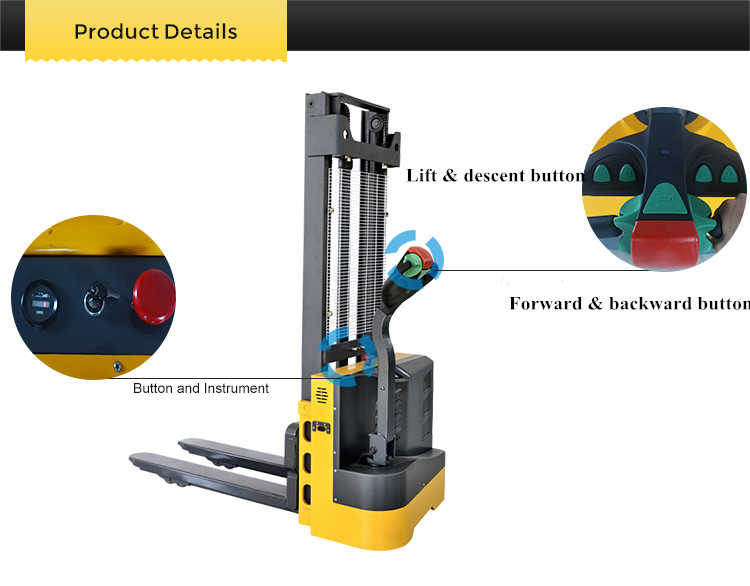

Main Character of Electric Stacker:

     ? EMergency reverse switch, greatly enhance the safety

      ? Double mast adopts composite mast.

      ? Safe explosion-proof valve equipped with the system ensure operator safety.

      ? the two battery and horizontal driving wheel drive system.

      ? Electronic control system, easy operation.

      ? Excellent driving wheels, reliable braking system.



Configuration of Electric Stacker:

     ? Curtis electric control

     ? Horizontal permanent magnet motor drive wheels (650 w)

     ? (12 v / 80 ah) * 2 colloid power battery (optional 12 v / 120 ah)

     ? 2.2 KW hydraulic pump

     ? Different length operating handle models

High quality material handling tools 1000kg full electric reach stacker price

about Haizhili:
Haizhili Machinery Co., Ltd. Was founded in 1997. Haizhili is a high tech enterprise of research and development, manufacture, sales and after-sales service of material handle equipments. with 2 production bases, covers an area of 20000 square meters, Haizhili has more than 500 experienced technicians. We can provide our customers efficient, safe, comprehensive solution for aerial work, cargo lifting, warehousing & logistics transportation.

Haizhili has hundreds of stores, transit warehouses and after-sales service points in China. Haizhili also has thousands of distributors. No matter where you are, you can get our professional after-sales service in time in China. Now Haizhili is expanding our business to the whole world. with perfect pre-sale service, in-sales service, after-sales service, haizhili has earned good reputation and trust from clients home and abroad.

Haizhili has always followed a policy of "Quality first, Technology leading, Cooperation and Win-win ". Haizhili has been developing itself by researching on new technology and new products, offering superior products and service for customers. If you are looking for smooth business, profit and success, we are the right supplier. with good quality and professional service, we have fully confidence that Haizhili will be your best partner. We sincerely hope to cooperate with you for win-win situation.

High quality material handling tools 1000kg full electric reach stacker priceHigh quality material handling tools 1000kg full electric reach stacker price

FAQ
Q1: how long is the warranty time ?

A1: 2000 working hours or 12 month, whichever comes first.



Q2: how can I get the after-sales service?

A2: the global service network is still in construction, but you can contact with us if you have any question or need professional support. We will try to solve your problem in 24 hours, and arrange the delivery of spare parts in 48 hours.



Q3: What about the Delivery time ?

A3:the delivery time is about 10-15days after receipt of your P.O.for the standard products,  for the specials, the delivery time will be advised later.



Q4: HOw to pay for it?

A4: Generally, we used T/T: 30% as deposit and the balance will be paid before shipment. L/C is available according to actual conditions.



Q5: What loading capacity available?

A5: There are 1000kg & 1500kg for your choice.


If you are interested in our electric stacker, please feel free to contact rebecca for more info. Rebecca wish you a nice day!
