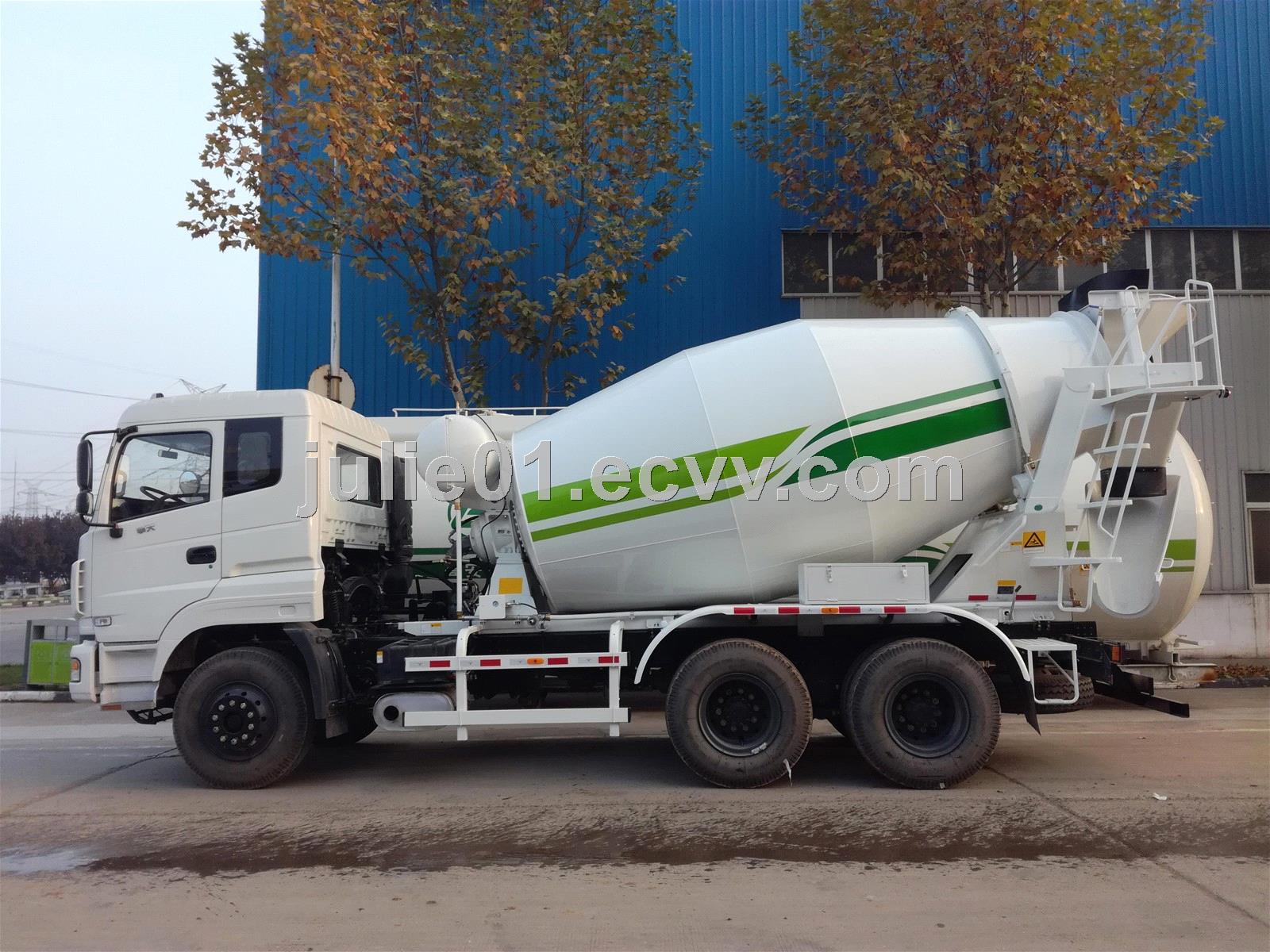

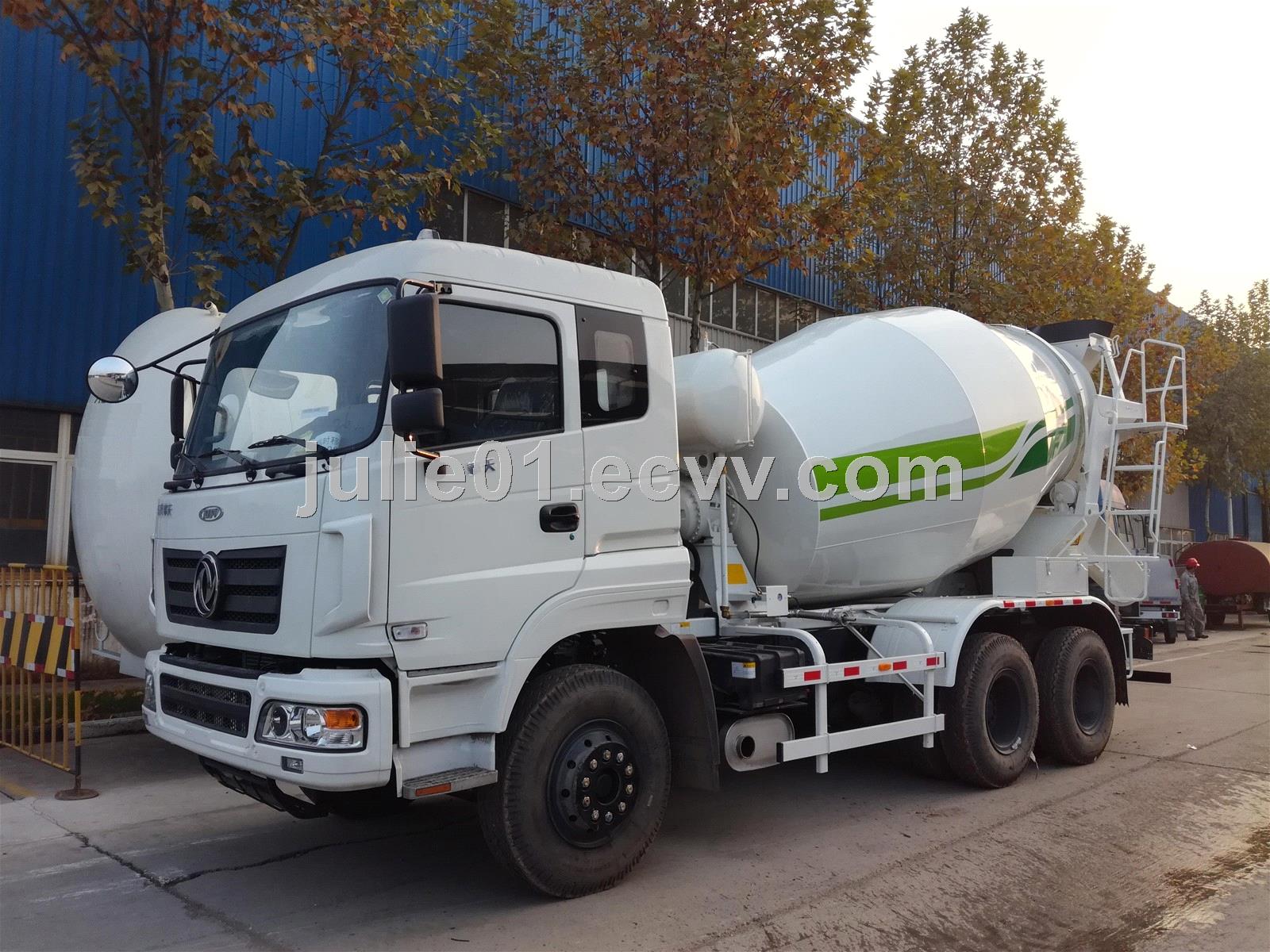

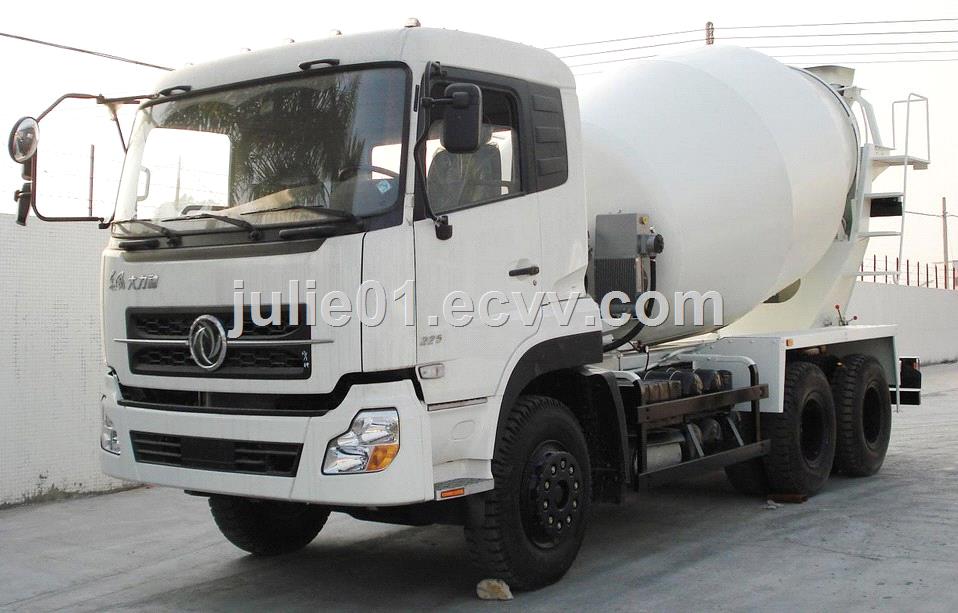

Dongfeng 8m3 Mobile Concrete Mixer Truck, Cement Mixing Truck

FOB Price:	1.00 - 56,800.00 USD/Unit
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Quick Details

Dongfeng 8m3 mobile concrete mixer truck, cement mixing truck

Specification
Drive mode	6×4
Engine	Model	L340 30
	Type	6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR
	Max. power(Kw/rpm)	250/2200
	Max. torque(N.M/rpm)	1350/1400
	Displacement(ml)	8900
	Type of fuel	Diesel
	Compression ratio	(16.6±0.5):1
Cab	D310-S1	Single berth
Gearbox	Model	9JS150T-B
Gearbox	Max.Torque(N.M)	1500
Clutch	Φ430mm	Diaphragm spring clutch
Frame Height×Width× Thickness(mm)	300×90×(8+6)
Frame Height×Width× Thickness(mm)	Frame width 940 (front ), Frame width 810 ( rear )
Tyre	Size	11.00-20
Air conditioner	A/C
Dimensions	Overall dimension (mm)	8840×2500×3930
	Wheel base (mm)	3650+1350
	Front/Rear tread(mm)	1986/1860
	Appr./Depa. angel (°)	30/18
	Min. ground cleanrance(mm)	250
Mass	Payload(Kg)	11870
	Curb weight(Kg)	13000
	G.V.W(Kg)	25000
Performance	Max. speed(Km/h)	80
	Max. gradeability(%)	40
	Min. turning diameter(m)	23
	Fuel consumption(L/100Km)	36
Special function	Mixing capacity(m3)	8
	Angel of inclination of mixing drum(°)	13.5
	Geometric volume(m3)	13.4
	Filling ratio(%)	58.01
	Feeding speed(m3/min)	≥3
	Discharge speed(m3/min)	≥2
	Residual ratio(%)	＜0.7
	Collapsed degree range(mm)	40-230
	Hydraulic pump	PV089, Italy
	Hydraulic motor	MF089, Italy
	Decelerator	6SP, Italy
