Thin Wall Bearing for Packaging Equipment, Rotating Drill Rig Equipment, Pipe Inspection Equipment, Iron Roughnecks

FOB Price:	380.00 - 393.00 USD/Unit
Supply Ability:	5,000 Unit(s) per Week
Shipping:	Shanghai port
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Electric Lebus Grooved Drilling Rig Marine Boat...

Price:500.00 USD/Set

Min. Order:1 Set
New High Rate Pile Drilling Rigs

Price:

Min. Order:1 Set
Hand held Emulsion Drilling Rig

Price:1.00-11.00 USD/Set

Min. Order:1 Set
Calcium Lignosulphonate Oil Well Drilling Chemi...

Price:300.00-500.00 USD/Metric Ton

Min. Order:1 Metric Ton

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	20~50 pcs per carton, then 12 cartons per pallet

Quick Details

Type: Ball
Structure: Other Structure
Seals Type: open or sealed
Precision Rating: P2
Model Number: JG180CP0
Outside Diameter: 19-20 inch
Bore Size: 17-18 inch
Brand Name: BEART
application: machine tool, robot, optical scanning and imaging equipment
precision: P2
structure: radial contact ball

Specifications

Material:100Cr6 bearing steel, ceramic options

Function:Match the requirement of fixing onto a narrow space both in radial and axial directions

Structure:Single row ball

Contact type of raceway:Angular contact, radial contact and four-point contact

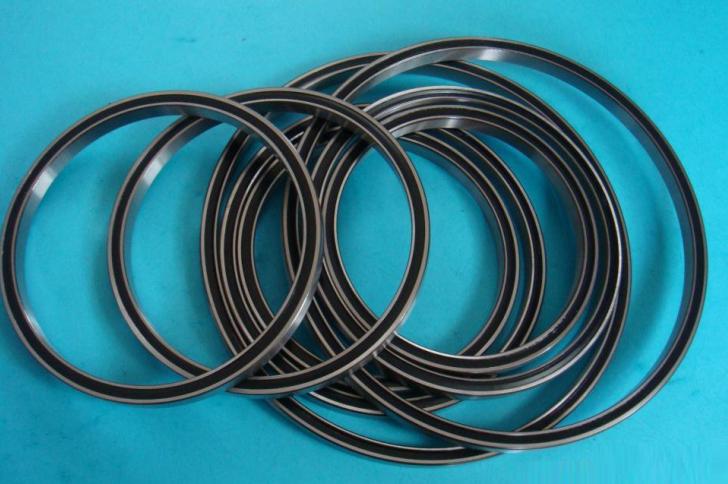

Thin sectionBearings, also called thin wall bearings, as well as reali-slim bearings, they produce larger ratios of diameter to radial section, which lead to space and weight savings of up to 85 percent. to support various load scenarios, reali-slim bearings are available in three basic types: radial contact, angular contact, and four-point contact.

ChinathinSection bearing manufacturer Beart Enterprise Co., Limited. Precision thin wall bearing from china, china best maker of thin bearing for machine tools. Qualified thin section bearing from china.Chinaprecision thin wall bearing maker, precision thin wall bearing manufacturer from china, china top famous bearing supplier.

Thin section bearingsUsed for applications like machine tool, robot, optical scanning and imaging equipment, food processing machinery, packaging equipment, rotating drill rig equipment, pipe inspection equipment, iron roughnecks, power swivels, target systems and tank sights, navigation, target acquisition pods, helicopter swash plates and gearbox, propulsion and control systems, radar, satellites, mars rover, CT scanners, laboratory diagnostic equipment, surgical robotics, surgical chairs, pick and place robotics, lapping equipment, wafer etching, scrubbing and polishing, and solar panel gearboxes.
thin wall bearing for packaging equipment rotating drill rig equipment pipe inspection equipment iron roughnecks

Bearing Number	Dimensions in Inches			Weight lbs	Bearing Number	Dimensions in Inches			Weight lbs
Bearing Number	Bore	OD	Width	Weight lbs	Bearing Number	Bore	OD	Width	Weight lbs
KC040CP0	4.000	4.750	0.375	0.45	JG070CP0	7.000	9.000	1.000	5.8
KC042CP0	4.250	5.000	0.375	0.47	JG075CP0	7.500	9.500	1.000	6.1
KC045CP0	4.500	5.250	0.375	0.48	JG080CP0	8.000	10.000	1.000	6.5
KC047CP0	4.750	5.500	0.375	0.50	JG090CP0	9.000	11.000	1.000	7.2
KC050CP0	5.000	5.750	0.375	0.58	JG100CP0	10.000	12.000	1.000	7.9
KC055CP0	5.500	6.250	0.375	0.59	JG110CP0	11.000	13.000	1.000	8.6
KC060CP0	6.000	6.750	0.375	0.63	JG120CP0	12.000	14.000	1.000	9.3
KC065CP0	6.500	7.250	0.375	0.68	JG140CP0	14.000	16.000	1.000	10.8
KC070CP0	7.000	7.750	0.375	0.73	JG160CP0	16.000	18.000	1.000	12.3
KC075CP0	7.500	8.250	0.375	0.78	JG180CP0	18.000	20.000	1.000	13.7
KC080CP0	8.000	8.750	0.375	0.84	JG200CP0	20.000	22.000	1.000	15.8
KC090CP0	9.000	9.750	0.375	0.94	JG220CP0	22.000	24.000	1.000	16.8
KC100CP0	10.000	10.750	0.375	1.06	JG250CP0	25.000	27.000	1.000	19.5
KC110CP0	11.000	11.750	0.375	1.16	JG300CP0	30.000	32.000	1.000	23.3
KC120CP0	12.000	12.750	0.375	1.25	JG350CP0	35.000	37.000	1.000	27.1
KC140CP0	14.000	14.750	0.375	1.52	JG400CP0	40.000	42.000	1.000	30.8
KC160CP0	16.000	16.750	0.375	1.73	SG040CP0	4.000	6.000	1.000	3.6
KC180CP0	18.000	18.750	0.375	1.94	SG042CP0	4.250	6.250	1.000	3.8
KC200CP0	20.000	20.750	0.375	2.16	SG045CP0	4.500	6.500	1.000	4.0
KC250CP0	25.000	25.750	0.375	2.69	SG047CP0	4.750	6.750	1.000	4.1
KC300CP0	30.000	30.750	0.375	3.21	SG050CP0	5.000	7.000	1.000	4.3
KD040CP0	4.000	5.000	0.500	0.78	SG055CP0	5.500	7.500	1.000	4.7
KD042CP0	4.250	5.250	0.500	0.83	SG060CP0	6.000	8.000	1.000	5.1
KD045CP0	4.500	5.500	0.500	0.88	SG065CP0	6.500	8.500	1.000	5.4
KD047CP0	4.750	5.750	0.500	0.94	SG070CP0	7.000	9.000	1.000	5.8
KD050CP0	5.000	6.000	0.500	1.00	SG075CP0	7.500	9.500	1.000	6.1
KD055CP0	5.500	6.500	0.500	1.06	SG080CP0	8.000	10.000	1.000	6.5
KD060CP0	6.000	7.000	0.500	1.16	SG090CP0	9.000	11.000	1.000	7.2
KD065CP0	6.500	7.500	0.500	1.22	SG100CP0	10.000	12.000	1.000	7.9
KD070CP0	7.000	8.000	0.500	1.31	SG110CP0	11.000	13.000	1.000	8.6
KD075CP0	7.500	8.500	0.500	1.41	SG120CP0	12.000	14.000	1.000	9.3
KD080CP0	8.000	9.000	0.500	1.53	SG140CP0	14.000	16.000	1.000	10.8
KD090CP0	9.000	10.000	0.500	1.72	SG160CP0	16.000	18.000	1.000	12.3
KD100CP0	10.000	11.000	0.500	1.88	SG180CP0	18.000	20.000	1.000	13.7
KD110CP0	11.000	12.000	0.500	2.06	SG200CP0	20.000	22.000	1.000	15.8
KD120CP0	12.000	13.000	0.500	2.25	SG220CP0	22.000	24.000	1.000	16.8
KD140CP0	14.000	15.000	0.500	2.73	SG250CP0	25.000	27.000	1.000	19.5
