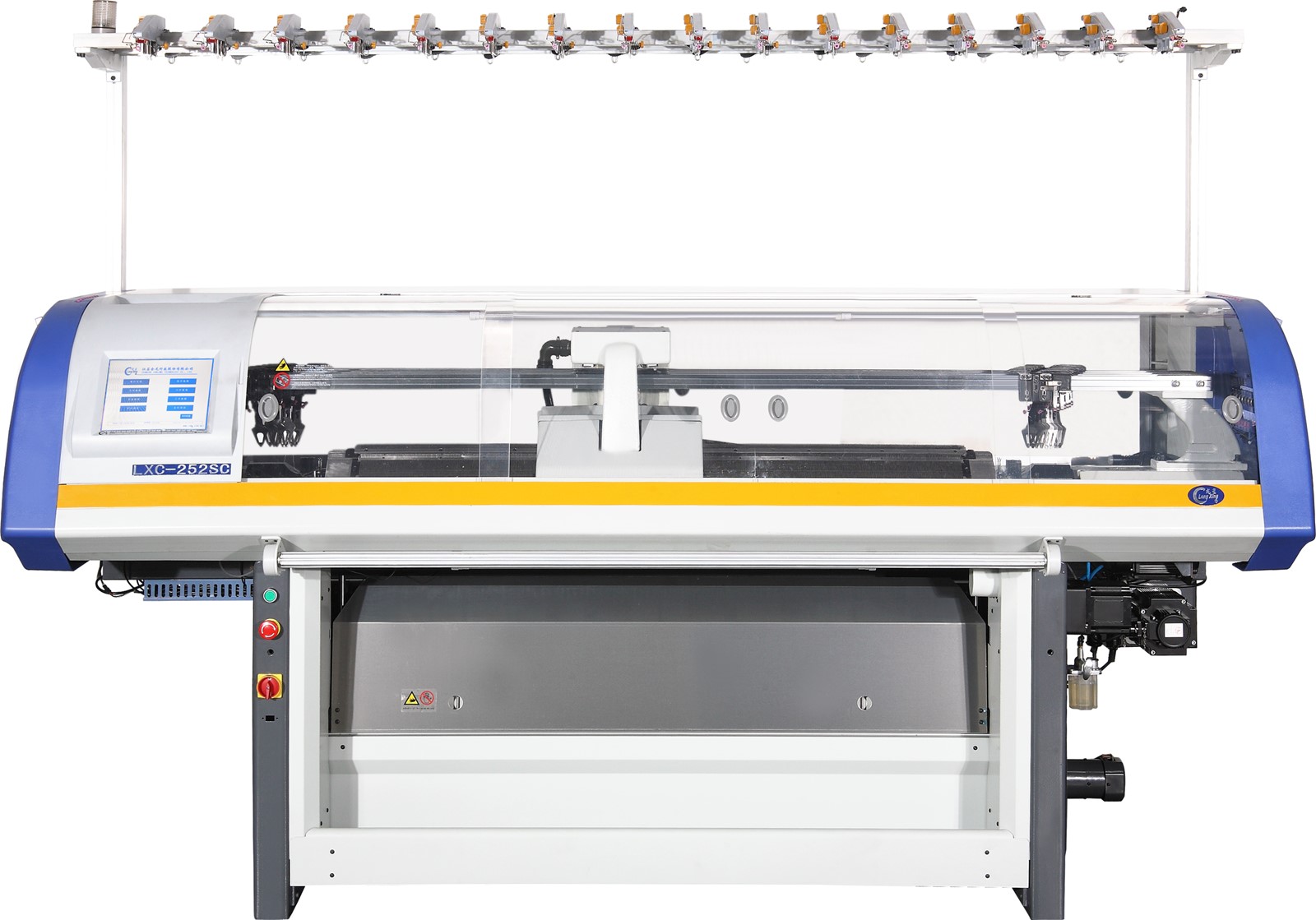

Flat Knitting Machine LXC252SC

FOB Price:	14,500.00 - 24,000.00 USD/Set
Payment Terms:	L/C, D/P, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Dimension(L*W*H): 2870x1210x1820
Weight: 960kg
Computerized: Yes
Knitting Style: Flat
Power(W): 1.5KW
Model Number: LXC252SC
Brand Name: LONGXING
Type: Jacquard
Condition: New

Specifications

the domestic leading level machine -the accumulation of technology for years, have dozens of patents for invention, running stable and high-efficiency. Sell well at home and abroad.

Suitable pattern:

Basic patterns like plain stitch, rib fabric, links-and-links, and interlock stitch etc. Fancy patterns like tuck stitch, jacquard, eyelet stitch, aran, cable, racking stitch, plush stitch, pile stitch and bump stitch etc. As well as bright narrowing and enlarging stitch of fully fashion.

Main arameter
Gauge	5G,7G,9G,10G,12G,14G,14.8G,16G
Knitting width	48 inch (122cm);52 inch (132cm)
CARRIAGE YSTEM	Single carriage single system/ single carriage double system/ single carriage three system
CONTROL SYSTEM	LONGXING control system, 10.4 inch touch screen
NEEDLE SELECTION SYSTEM	Preliminary needle selection system, 8 levels of selecting needle
Knitting speed^[1]	128 levels of speed. Max 1.2m/s
Safety equipment	Safety cover; emergency stop switch; emergency power off equipment; abnormal stop and alarm with light and sound
Power consumption^[2]	1 phase AC 220V, 50/60HZ, electricity consumption 0.7 kw (single system)/ 1.0 kw (double system)/ 1.5 kw (three system)

[1]Depends on the gauge, yarn and the pattern etc.

[2]the actual electricity consumption is far below the marked value, depends on the gauge and the working condition.
