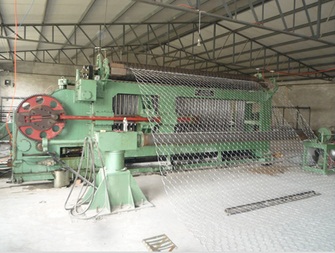

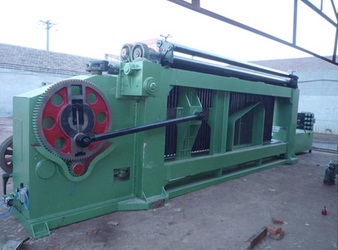

Gabion Box Machine/Hexagonal Wire Mesh Machine

FOB Price: 30,000.00 - 35,000.00 USD/Set
Supply Ability: 5 Set(s) per Month
Shipping: tianjin
Payment Terms: L/C, T/T, Western Union
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Hebei in China
Packaging Details: container

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Model Number: XM
  • Brand Name: XM
  • Wire diameter: 1.6-2.8/3.0/3.2mm: Twisted number: 3/5
  • Main Drive Shaft Speed: 20/25: Motor Capacity: 11/15/22
  • Theoretical Speed: 165/195/225/255: Third kind mesh size: 100x120
  • Production Capacity: 165*4(l*w) (660 square meters: First kind mesh size: 60x80
  • Forth kind mesh size: 120x150: Dimension(L*W*H): 7200*1400*2300mm

Specifications

Adavantage

1.  PLC automatic control

2.  Smooth operation, low noise, and high efficiency.

3.  the machine includes five Series with 15 moulds and the max. Width can reaches 4.3m.

Description

1. Gabion mesh machine (heavy duty hexagonal wire mesh machine) produces hexagonal wire mesh. 2. Our " gabion mesh machine adopts merits of products a home and abroad.

3. Specific twists type of gabion mesh machine can be customized, for example, twists selection are       double twists (3 cross), three twist (5 cross), or double twists sharing with three twists (3 cross             sharing with 5 cross).

Accessories

1. Spiral coil machine

2. Wire straightening machine

3. Winding mesh machine.

Technical parameter

Model

Mesh Size

Max. Width

Wire Diameter

Twisted number



Main Drive Shaft Speed

Motor Capacity

Theoretical Speed

mm

mm

mm

R/min

KW

m/h

LNWL23-60-2

60×80

2300

1.6-3.0

3

25



11



165

LNWL23-80-2

80×100

1.6-3.0

195

LNWL23-100-2

100×120

1.6-3.5

225

LNWL23-1200-2

120×150

1.6-3.2

20

255

LNWL33-60-2

60×80

3300

1.6-2.8

25

15

165

LNWL33-80-2

80×100

1.6-3.0

195

LNWL33-100-2

100×120

1.6-3.2

225

LNWL33-120-2

120×150

1.6-3.5

20

255

LNWL43-60-2

60×80

4300

1.6-2.8

25

22

165

LNWL43-80-2

80×100

1.6-3.0

195

LNWL43-100-2

100×120

1.6-3.0

225

LNWL43-120-2

120×150

1.6-3.2

20

255

LNWL43-60-3

60×80

4300

1.6-2.8

5

25

22

165

LNWL43-80-3

80×100

1.6-3.0

195

LNWL43-100-3

100×120

1.6-3.0

225

LNWL43-120-3

120×150

1.6-3.2

20

255

 Application

1.  used in petroleum, construction, farming, chemical industry, heating pipes and other pipe parcel          wire mesh;

2.  used for fences of residential and landscape protection, etc.

3.  used to make stone wire mesh cages to protect seawall, hillside, road, bridge,  reservoirs,  and          other civil engineering.

Our Services

1.      Guarantee period: 12 months (but no longer than 18 months since departure from Xingang Port).

2.      Customized machine.

3.      OEM support.

4.      Fast delivery.

5.      Moderate price.

6.      Door to Door service or 24-hour email service.
