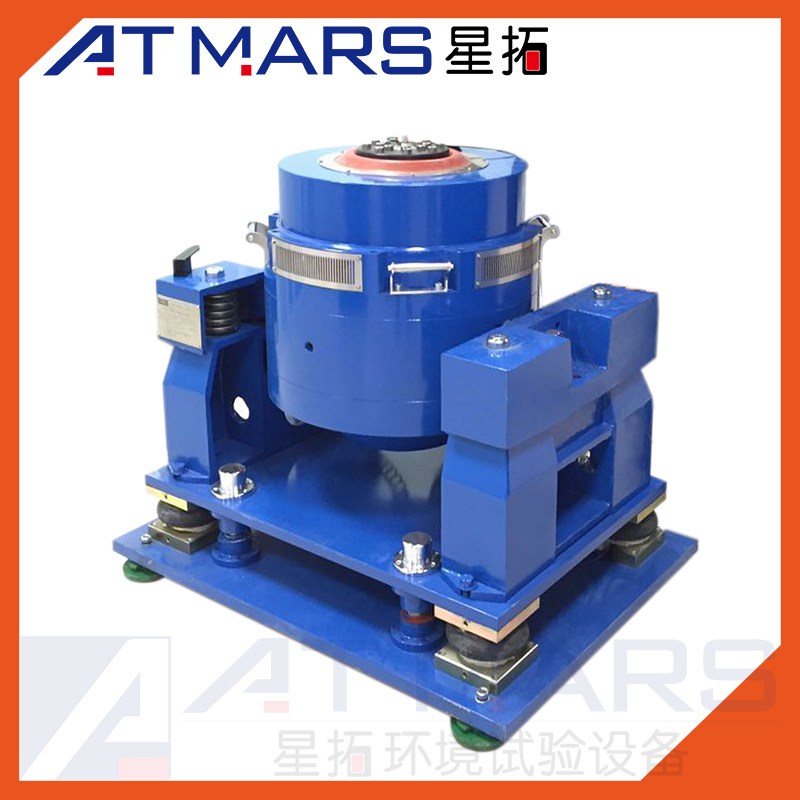

ATMARS Electromagnetic Vibration Shaker for Vibration Testing

FOB Price: 20,000.00 - 35,000.00 USD/Piece
Supply Ability: 15 Piece(s) per Month
Shipping: 30 to 35 Days (Lead Time) FOB Shenzhen
Payment Terms: L/C, T/T, Western Union, Other, Cash
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: Standard Export Plywood Box

Quick Details

  • Usage: Vibration Testing Machine
  • Power: Electronic
  • Model Number: ATDC
  • Brand Name: ATMARS
  • OEM/ODM: Available
  • Frequency Range: 5 to 4000 Hz

Specifications

Product Features
A wide range of standard models for option
Machine base uses quality material, easy installation, stable operation, no foundation screws needed
Interference resistance circuit installed to resolve the interference of electromagnetic fields on the control circuit
Working time setting device makes sure accurate testing time
Ultra quiet working environment

Standards and Test Methods
GB/T 2423.14-1997
GB/T 2423.35-1986
GB/T 2423.36-1986
GB/T 2423.48-1997
GB/T 2423.49-1997
GB/T 2424.22-1986
GB/T 2424.24-1995
ATMARS Electromagnetic Vibration Shaker for Vibration Testing

Specifications of Electrodynamic Shaker
System Models ATDC-100B ATDC-150B ATDC-200B ATDC-300B ATDC-600B ATDC-1000B
Vibration Table Table Size (LxWxH mm) 660x550x650 660x550x651 660x550x652 730x550x650 790x580x660 830x680x825
Moving Coil Size (mm) Φ 110 Φ 110 Φ 110 Φ 150 Φ 200 Φ 200
Moving Coil Weight (KG) 2 2 2 3 5.6 8.3
Table Weight (KG) 320 320 320 320 630 630
System Parameter Frequency Range (Hz) 54000 54000 54000 54000 53000 53000
Rated Sine Force (N) 980 1470 1960 2940 5880 9800
Rated Random Force (N) 980 1470 1960 2940 5880 6680
Maximum Accceleration (m/s2) 490 735 980 980 980 1176
Maximum Speed (m/s) 1.75 1.15 1.75 1.6 1.5 2.0
Maximum Replacement (P-P)mm 25 25 25 25 25 25
Maximum Loading (KG) 70 70 70 120 200 120
Maximum Power Output (KVA) 1 1 2 3 5 10
Power (KVA) 4.5 4.5 6.5 7.5 17 20
Power Supply AC 380V ± 10% 50Hz, 3 Phases 4 Wires Including Ground Wire
Remarks: 1. We reserve the right to change specifications without prior notice; 2. Customized sizes and configurations are available.
