Nanan Shuitou Town Zhongda Hf Welder Factory
China Manufacturer with main products: Induction Heating Machine, Forging Machine, Annealing Machine, Welding Machine, Brazing Machine, Heating Treatment, Melting Machine, High... |
Steel Bar Forging Machine/ Induction Heating Machine
| FOB Price: | 6,000.00 - 7,000.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set(s) per Month |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Fujian in China |
| Packaging Details: | Wooden case |
Specifications
Specifications:
1.Brief Introduction:

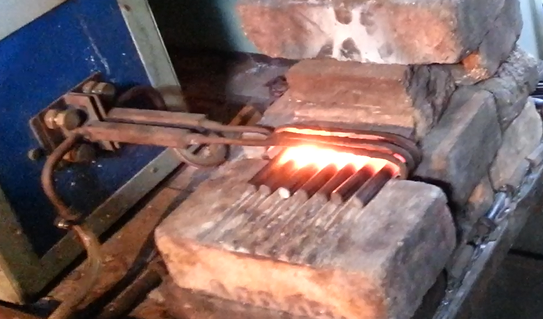

Super audio frequency induction heating machine adopt IGBT model. the working frequency range is from 20KHZ to 50KHz. Usually designed in big power. It's widely used in big workpiece diathermy and forging, levitation melting in vacuum, big gears and shafts heat treatment.
2.Techincal parameters:
Model: ZHY-CYP-120 2.Input AC: 380V 50Hz 3.Operating power range: 340~430V
Oscillating frequency range: 50~150KHz 5.Maximum oscillating power: 120KW
Maximum output power: 100KW 7.Duty cycle: 100%
8.Cooling water flow/pressure: 20L/min 0.1~0.3MPa
3.Performance features:
1.Super audio frequency induction heating machine adopt IGBT. High frequency, energy saving and steady.
Heating speed is fast and high efficiency.
Only heat the part need to be heated, little distortion.
Short heating time. There is no oxide layer on the surface of the workpiece.
Easy operation, good working environment and no pollution.
Control heating temperature and heating time easily. Ensure heating quality and could achieve line production.
