China BMH Semi Gantry Crane Price
| FOB Price: | 500.00 - 2,000.00 USD/Piece |
|---|---|
| Shipping: | tianjin port shanghai port qingdao port |
| Payment Terms: | D/P, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Feature: Gantry Crane
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 12 months
- Certification: ISO CE SGS GOST
- Brand Name: Nucleon
- Span: 5~17m
- Max. Lifting Height: 6~30m
- Rated Loading Capacity: 16 ton
- Application: Warehouse,Workshop
- Condition: New
- color: widely
Specifications

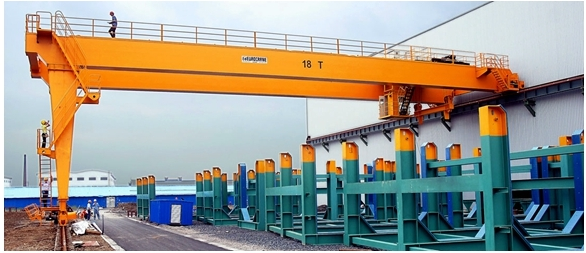

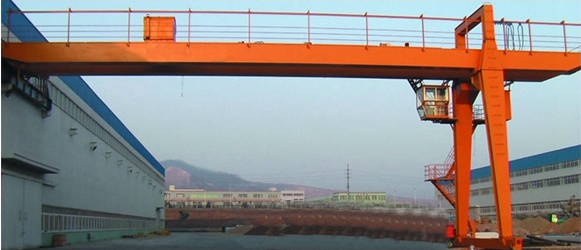

Introduction of this BMH semi gantry crane:
this BMH semi gantry crane is used together with CD MD model electric hoists. this BMH semi gantry crane is a track travelling small and medium-sized crane. The standard lifting capacity of this BMH semi gantry crane is 2 ton to 16 ton. The standard span of this BMH semi gantry crane is 5 to 20 meters. The working environment temperature of this BMH semi gantry crane is -20℃~+40℃.
Application of this BMH semi gantry crane:

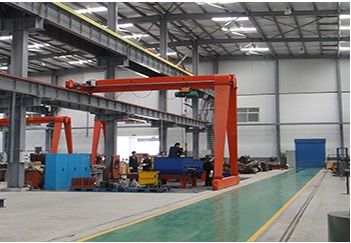

this BMH semi gantry crane is a general purpose use crane. Often this BMH semi gantry crane is used in mechanical workshop to lift and transfer materials. the control method of this BMH semi gantry crane is ground control or remote control or both. the specially designed reducer of this BMH semi gantry crane can make the working coverage more wide.
Technical specification of this BMH semi gantry crane:
Lifting capacity: 2 ton, 3 ton, 5 ton, 10 ton, 16 ton.
Lifting height: 6m
Span: 5m, 11m, 14m, 17m
Travelling speed: 20/30 m/min
Lifting mechanism: CD MD electric hoist
Working class: A4
Power: 3P AC 380V 50Hz
Max. Wheel pressure: 17.5~72.5KN
