Home >Products Catalog > CVD ZnS Material

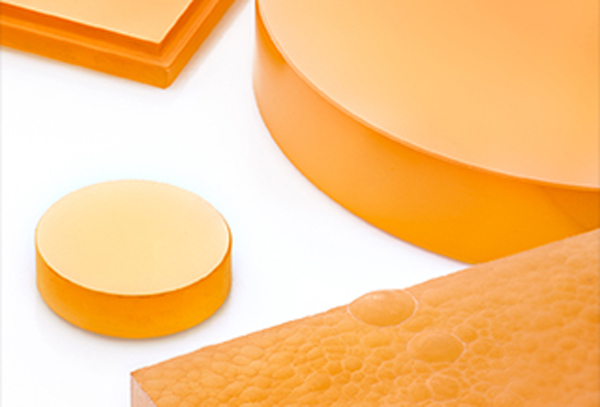

CVD ZnS Material

FOB Price:	10.00 - 500.00 USD/Piece
Supply Ability:	5,000 Piece(s) per Month
Payment Terms:	T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, Oceania, Eastern Asia, Western Europe

Quick Details

Classification: Other Inorganic Salts
Application: Infrared instrument
Appearance: Organ
Purity: 99.99%
CAS No.: 1314-98-3

Specifications

Features:

Optical Properties

Bulk Absorption Coefficient When 10.6μm <= 0.24 cm-1
Temperature Change of Refractive Index When 10.6μm 41 x 10-6/°C
Refractive Index Inhomogeneity When 10.6μm < 100 x 10-6

Thermal Properties

Thermal Conductivity when 20° C 0.167 W/cm/°C
Specific Heat 0.469 J/g/°C
Linear Expansion Coefficient When 20° C 6.8 x10-6/°C

Mechanical Properties

Young's Modulus 74.5 GPa (10.8 x 106 psi)
Rupture Modulus 103.4 MPa (15,000 psi)
Knoop Hardness 210-240 kg/mm2
Density 4.08 g/cm3
Poisson's Ratio 0.27

Specifications:

for example
Diameter, mm Thickness, mm
10 * 2
12.7 * 2
12.7 * 3
19.05 * 3
19.05 * 4
20 * 2
20 * 3
20 * 4
25.4 * 3
25.4 * 4
25.4 * 5
38.1 * 4
38.1 * 6
38.1 * 9
50.8 * 6
50.8 * 8
50.8 * 10

Applications:

Windows, domes and lenses for therma-imaging system

CVD ZnS material
