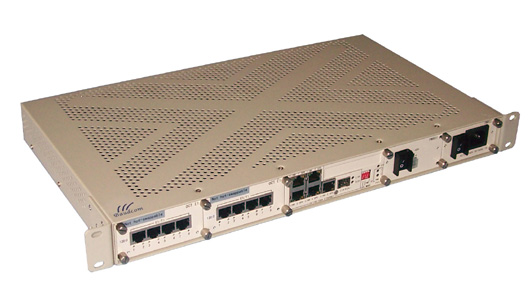

16E1 over Gigabit Ethernet Multiplexer 16E1 over IP

FOB Price:	1,020.00 - 1,090.00 USD/Unit
Shipping:	3~7days after payment

In Stock

Inquiry Now

Related products from verified members

1x8 /1x16/1x32 PLC Splitter ABS Box/Mini Fiber ...

Price:5.00-60.00 USD/Piece

Min. Order:1 Piece
E1/T1 Over Ethernet Multiplexer (16*E1/T1)

Price:50.00-1,000.00 USD/Piece

Min. Order:10 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Model Number: BD-16E1-IP-G
Brand Name: Baudcom

Specifications

16E1 over Gigabit Ethernet Multiplexer 16E1 over IP

Overview:

as a cost effective solution for the traditional telecom services migrate to the IP packet networking technology, the 16 E1 over Ethernet (E1 over IP) adopts the innovative TDM over IP technology, with IP circuit emulation that supports transportation of 8~16 E1s and 5 GE electrical ports and 1 GE SFP optical port. The uplink ports and user data ports are IEEE 802.3 compliant, 10/100/1000M auto-sensed Ethernet ports.

State-of-the-art design provides the highest availability with the accurate timing signal and data bit stream reconstruction. Predefined system parameter profiles that according to different application requirement; ultimately simplify the installation process and saving the maintenance cost.

the device can support point to point applicaton (two units Work in pairs, one device at each end of the network mode point to point). the device also can support point to multipoint application (the 16 E1 device work together with other members in Baudcom TDM over IP family such as 1E1/2E1/4E1/8E1 tdm over IP device). Telecom and Enterprise users can save a lot of access and equipment costs and generates new revenue by offering different types of services over their packet-switched infrastructure. It is also suitable for connecting to the wireless equipment to achieve fast deployment of E1/T1 services. One particular application is to build E1/T1 links with low cost Wireless LAN bridges, replacing much more costly microwave radios. Operators can use Baudcom TDM over IP devices to provide legacy TDM services over wired or wireless Ethernet/IP network.

Features

1. Provide 5 Gigabit ethernet electrical ports and 1 Gigabit ethernet optical port, 6 ports serve as network uplinks or users ports

2. Support Ethernet Spanning tree protocol which enable normal work and protection in ring and mesh topology, protection resume in short time

3. User-friendly Web server supported for easy setup and maintenance, alarm log provided

4. Support SNMP V1/V2 network management

5. Ethernet built-in layer 2 switch, support VLAN, comply with IEEE 802.3x, 802.1P

6. Provide two pluggable E1 cards, each card supports 8 E1/T1s

7. Point to point and point to multipoint supported

8. Stable E1 clock recovery, low jitter and wander

9. E1 support local and remote loop

10. Low processing delay for E1 channels, high bandwidth usage efficiency

11. Resist to packet loss, with PCM frame synchronization protection

12. User definable encapsulation packet size for different application

13. Support Ethernet encapsulation and UDP/IP protocol encapsulation.

14. Support VLAN settings for E1 service and in band VLAN management.

15. Enough jitter buffer to resist packet delay variation (PDV)

16. Local Ethernet port throughput limiting, assuring E1 QoS

17. 120Ω balanced E1/T1 port, RJ-45 connector, support 75Ω Unbalanced port through outside converting cable.

18. Support cascade concatenate for more than 16 E1 ports

19. Software and hardware online upgrade

20. Support single powwer(AC or DC) or double power supply redundancy(AC+AC,DC+DC,AC+DC)
