High Quality Low Price FRP Gel Coat Sheet Making Machine

FOB Price:	1.00 - 8,800.00 USD/Set
Supply Ability:	100 Set(s) per Year
Shipping:	tianjin
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	custmize

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 Year
Certification: ISO9001
Weight: 12 tons
Dimension(L*W*H): 61m*4m*5m
Voltage: 380v 50Hz
Power(W): 140kva
Model Number: DN1500-IG
Brand Name: dinuo
Production Capacity: 2-12m/min
Use: Roof
Tile Type: frp sheet
Type: Tile Forming Machine
Condition: New
Operation staff: 4-7 People
speed of production: 2-12 m/min
sheet width: maximum effective width 1500 mm
thickness of sheet: 0.2-4mm
main dimension: 61m*4m*5m,
power requirement: 140KVA
power consumption: actual consumption is 50KVA/h
upper gel coat: 61m(L)*4(W)*5m(H)
lower gel coat: 71m(L)*1.85(W)*3.5m(H)
certification: EU certification, certified model FRP3200

Specifications

Machine function

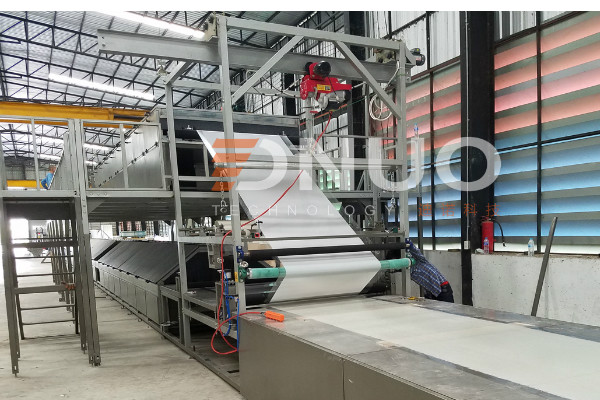

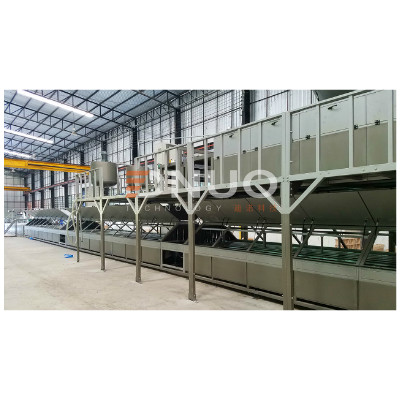

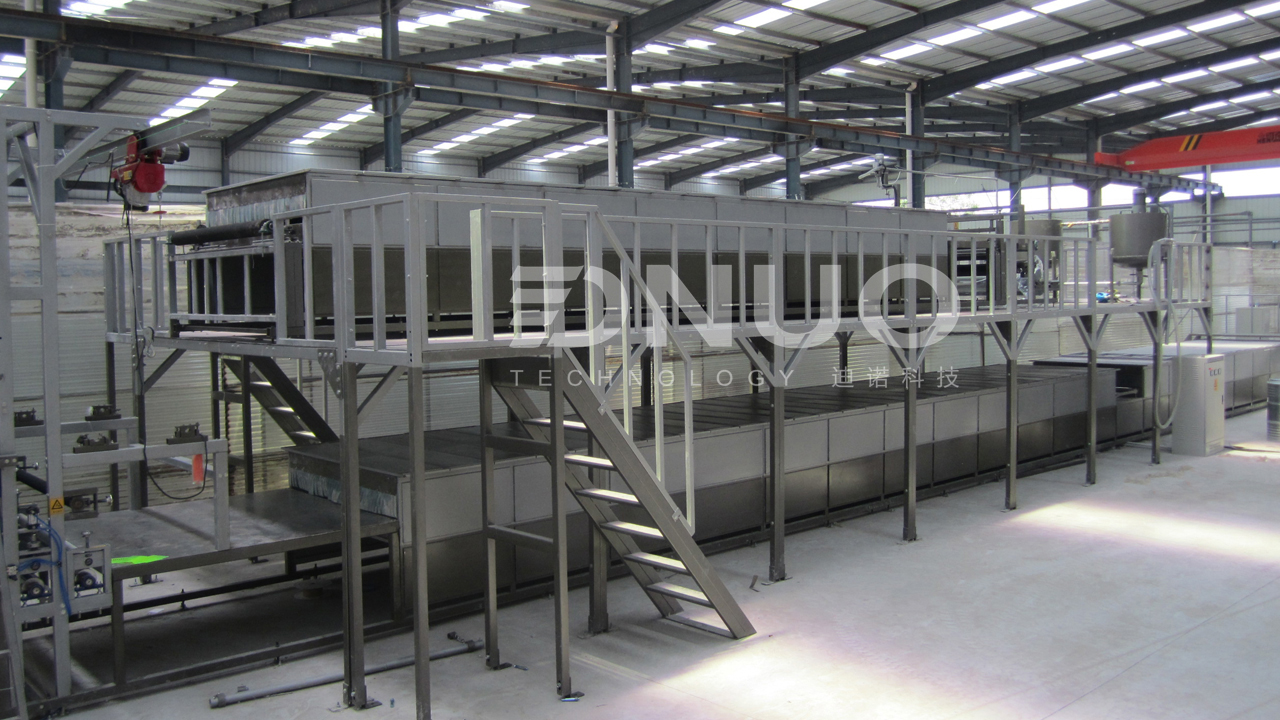

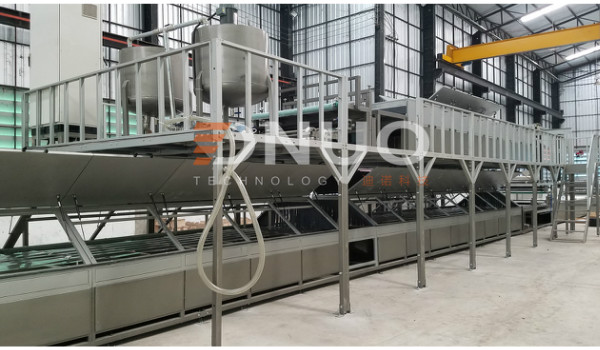

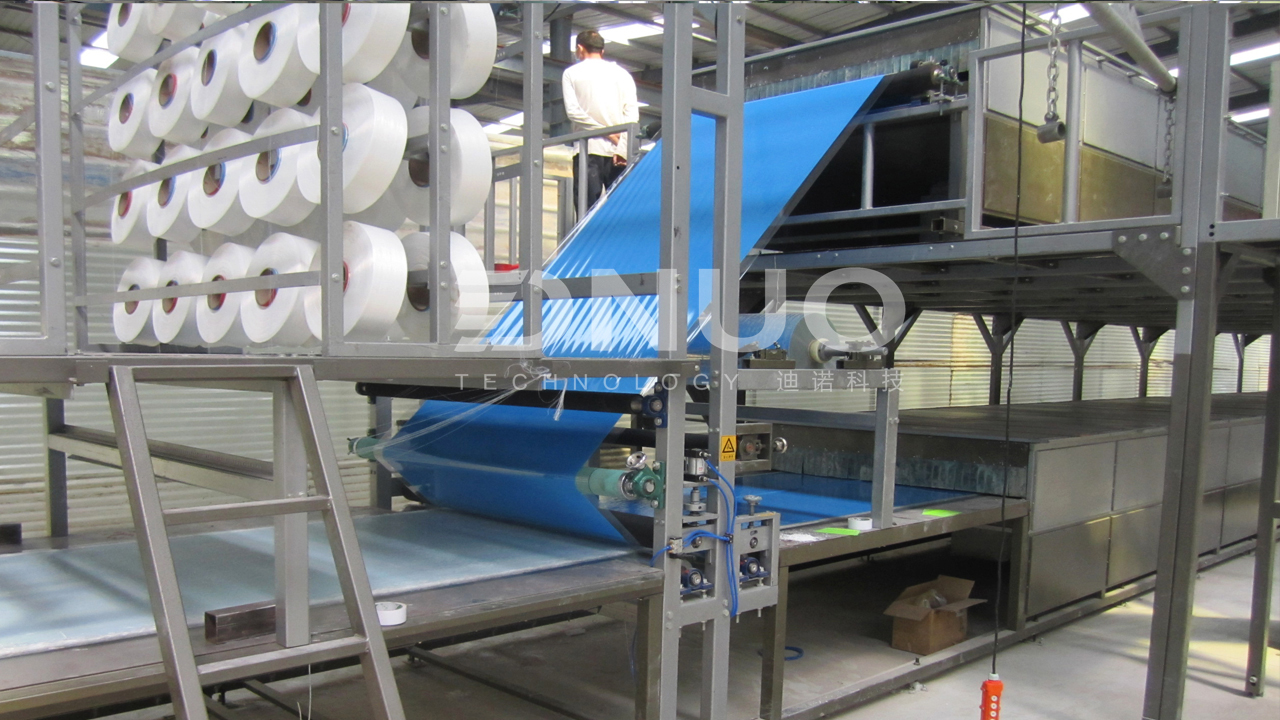

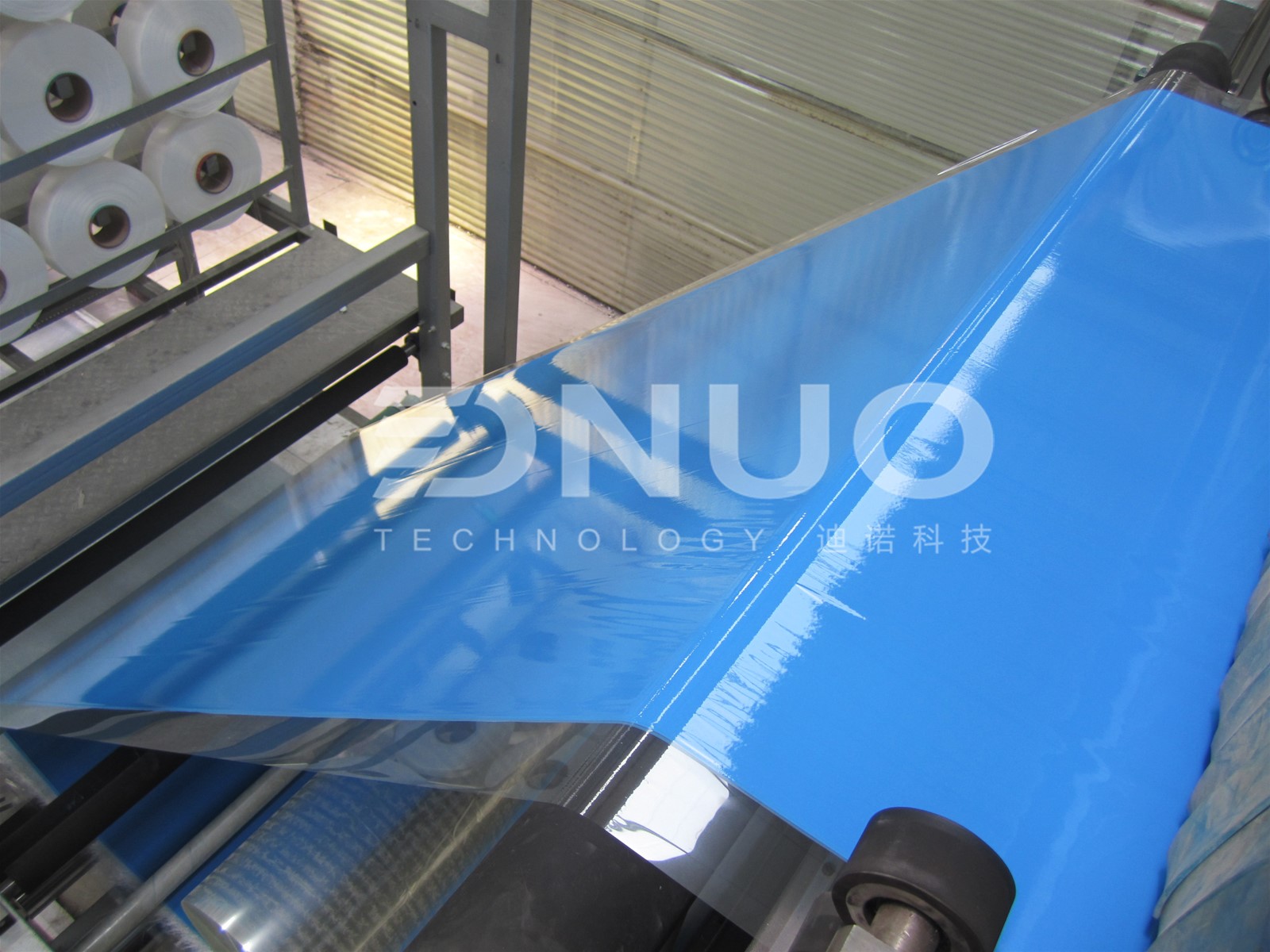

this production line can Produce lighting sheet, color sheet, common flat sheet, gel coat sheet.

Operation Staff	4-7 People	Speed of Production	2-12 m/min
Sheet width	Maximum Effective width 1500 mm	Thickness of Sheet	0.2-4mm
Main Dimension	61m4m5m,	Power Requirement	140KVA
Power Consumption	Actual consumption is 50KVA/h
Upper gel Coat	61m(L)×4(W)×5m(H)
Lower gel Coat	71m(L)×1.85(W)×3.5m(H)
Certification	EU certification, Certified model FRP3200
Number of Certificate	No.M7, 1302, 8307, 002

Machine Characteristics

1.Apply High precision import forging doctor blade, smaller error, Thin & even gel Coat coating.

2.Gel Coat curing area apply clip flatten roller designed by Dnuo technology company, Easy operation & good tensioning effect.

3.the Impregnation table can control temperature independently & accurately. It Can adapt to the outside temperature fast, impregnation fast and improve the Production speed effectively.

4. Pulse free metering system, accurate metering, and wide flow rate adjustment range. It can add powder filler.

5. Easy Operation based on PLC intellectual control system. Operate by two computers, the production task and equipment operating data is faster and intuitional. Only short-term training can make operators complete production independently.

6.Three separate Ovens for temperature control, Unique temperature control arithmetic makes oven Heating fast, temperature control precise. Which improve quality of products, Reduce energy consumption and shorten the preparing time effectively. this way Makes sheets curing better.

7.Metering Control system and Roving chopper speed can be synchronous with the production Line.

8. Special cross cutting machine and good synchronization performance make cutting Accurately..

9. All the machine parts adopt international standard steel make machine with high Stability.

10.System Failure can be automatically alarmed and show fault point. Make maintenance easily.

11.Particular Parts adopt special purpose wire, durable in use.

12.Size and layout of machine can be made according to customer requirements

13. Electric system adopt siemens brand.
