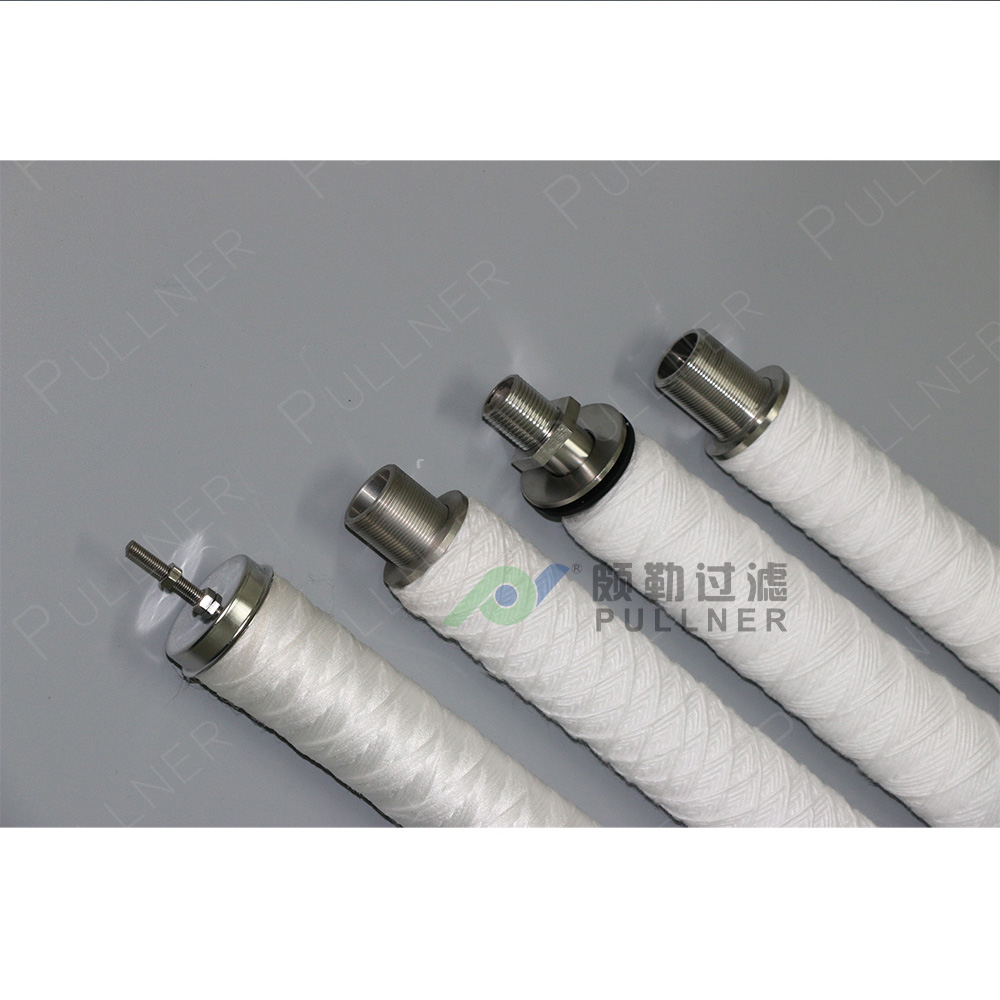

CPU Filter Element for Power Plant Condensate Water
| Supply Ability: | 3,000 Piece(s) per Month |
|---|---|
| Shipping: | General 12 days. Shanghai port. Sea or Air. |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Alipay |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | 1. Inside packing: Individual package in poly bag. 2. Outside packing: Wooden box. About 230-300pcs per box. |
Quick Details
- Brand Name: PULLNER
- Medium Material: Microfiber
- Filtration Grade: Pre Filter
- Construction: Cartridge Filter
- Condition: New
- After-sales Service Provided: No overseas service provided
- Certification: ISO 9001
- Weight: 2.2 kgs
- Dimension(L*W*H): 1.85m x 0.17m x 0.17m
- Model Number: PHFZ
- Efficiency: 98%
- OD: 2.5"
- Micron: 1um, 2um, 5um, 10um, 15um, 20um, 50um, 100um
- Length: 70"
- Manufacturer: YES
- MOQ: 200 pcs
- Sample provide: YES
- Sample time: 2 days
- OEM: YES
- Factory: Shanghai
Specifications
CPU Filter Element for Power Plant Condensate Water
Features and Benefits:
High mechanical strength, even under harsh processing conditions is not Deformed.
up to 70 "(1778mm) length, apply to high flow, high dirt holding Capacity of Applications.
Simple structure, no acid consumption and waste acid regeneration.
Application:
Power plant Condensation water filtration;
Paints, Coatings, petrochemical, refining;
Microelectronics, Films, fibers, resins.
Performance Specifications
Dimensions(nominal):
OD |
50mm, 60mm |
ID |
25mm, 28mm |
Length |
70"(1778mm), 60" (1524mm) |
Parts Material
Filter Media |
Polypropylene, Cotton,Glass Fiber |
Support Core |
Stainless steel 304/316 |
Filter
Performance
Micron |
1m, 5m, 10m |
Maximum Operating temperature |
85 |
Maximum Operating differential pressure |
2.45Bar |
Design Flow Rate |
2.9m/h-3.2m/h |
Connection Type |
Thread |
Connection Thread |
M331.5, M332, G1",1 3/16-24 BSW |
Bottom Thread |
M6, M8, M10 |
